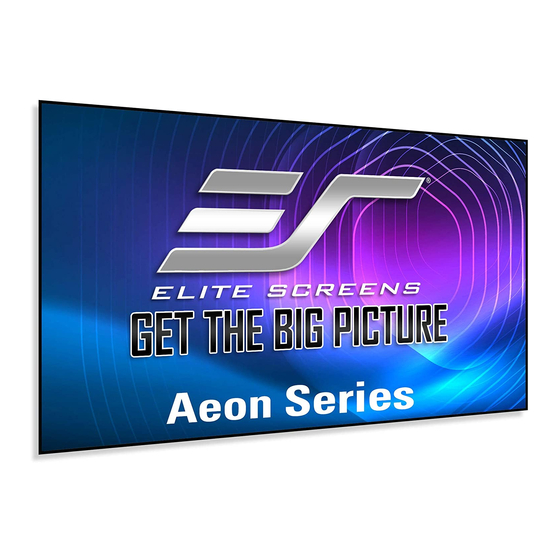

Elite Screens Aeon Series User Manual

Elite Screens Aeon Series User Manual

Edge free matte white fixed frame screen
Hide thumbs Also See for Aeon Series:

Advertisement

Quick Links

____________________________________________________________________________________________

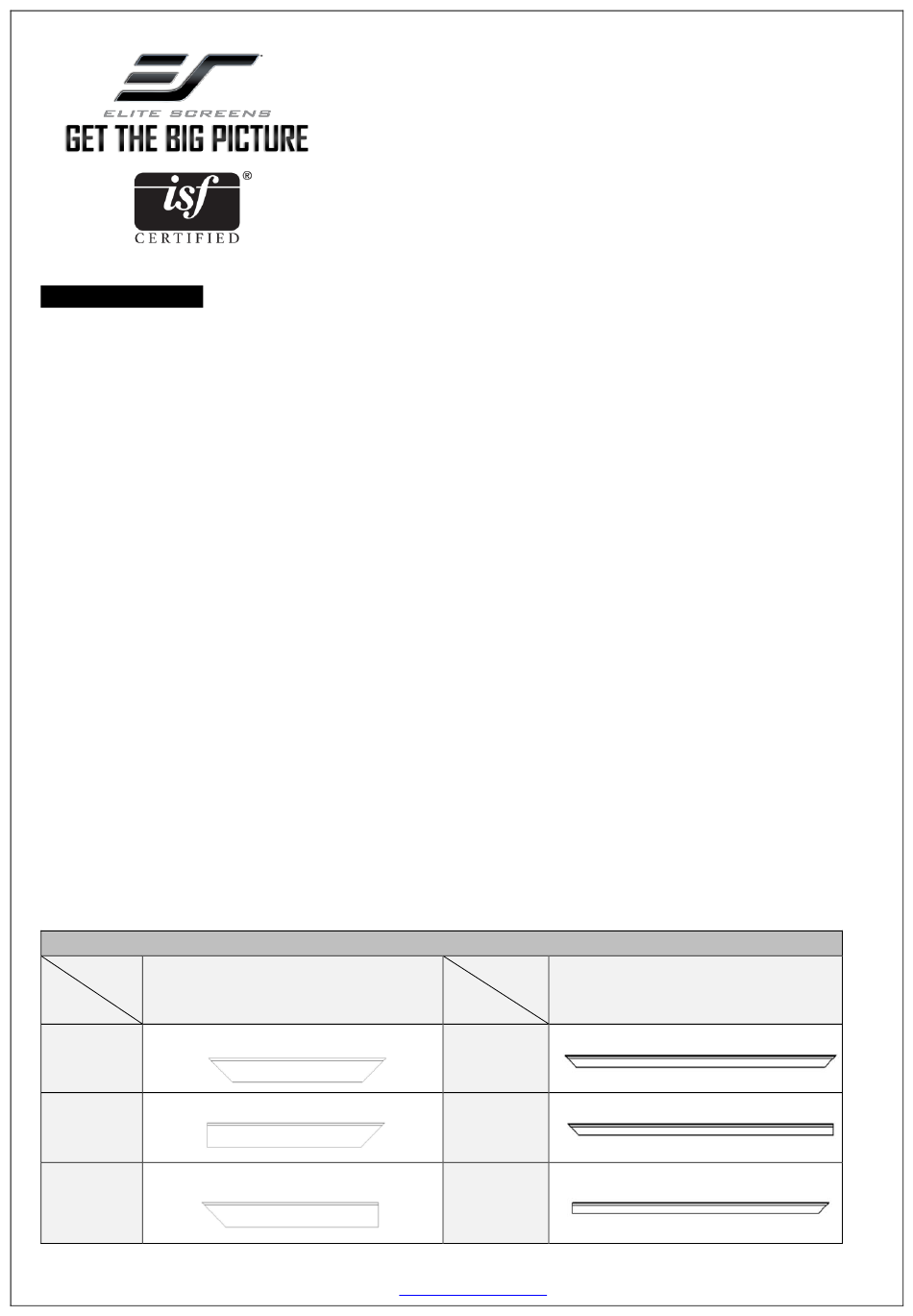

Product Description:
The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE® technology. The EDGE FREE®
design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame
appearance and absorb projector overshoot. An optional LED kit is available for backlighting.
The material included is our ISF Certified CineWhite® UHD-B which produces accurate colors in a light controlled
environment as the director intended.
In order for the CineWhite® UHD-B to maintain its projection qualities and optimum performance please refer to
the list below for proper maintenance and cleaning.
Use a dry microfiber cloth to remove dust from the screen's surface.
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
Never rub or apply pressure when cleaning the surface.
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other
sharp or abrasive objects.
Qty
item
Part A.
Part B.
Part C.
04202021JA SN 211M +
EDGE FREE® Matte White Fixed Frame Screen
1. Frame and Edge Trim Parts List
2 pcs
Main Frame Parts
vertical frame
½ horizontal frame
½ horizontal frame
Aeon CineWhite® UHD-B Series
Qty
item
Part D.
Part E.
Part F.
www.elitescreens.com
USER'S GUIDE – M Type
2 pcs
Edge Trim Parts
U-00197
V2
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aeon Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Screens Aeon Series

  • Page 1 Product Description: The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame appearance and absorb projector overshoot.
  • Page 2 2. Hardware Parts List M4*4 D5*4 M4*4 D5*4 M4*4 M4*4 Black 92’’ 100’’ 110’’ 120’’ 135’’ 150’’ 180’’ 200’’ 125’’ Item Parts List Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position) Side cover Center Joints- M4 Side cover Elbow Joints M4 M4x7 Screws...
  • Page 3: Frame Assembly

    Frame Assembly Step 1: Place the included soft padded EPE sponge sheet on a clean area where the screen will be assembled. Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7 screws (M) as shown in the illustration below.
  • Page 4: Back Side

    Back Back (Red tips) Side Side Back Side Back Side Step 8: Carefully and gently place the assembled frame on top of the screen material in the marked areas as shown below. Make sure to not allow the angle edge of the frame to come in direct contact with the screen material to avoid puncturing it.
  • Page 5 Step 10: Hook one end of the spring and secure inside the groove of the frame, use the spring hook (h) to attach the spring to the hole located on the screen material’s outer edge in the following order. Spring must hook both overlapping short rods.
  • Page 6 Correct material installation –Corners of the screen material are properly wrapped around the corner edges of the frame and material is evenly tensioned and flat, creating a nicely taut surface. Incorrect material installation –The corners of the screen material are not properly wrapped along the edge of the frame leaving the material with unbalanced tension and an uneven finish.
  • Page 7: Wall Installation

    Step 12: Install the angle cover (n) on each corner of the frame using the M4x4 screws (m). Note: The angle cover screws holes align with the screw holes on the elbow joint. Tear off the double-sided tape. Step 13: Install the springs (q) in each middle area to further support the bezel trim edge frame. Wall Installation Step 14: Measure the overall length and height of the frame and drill holes for the top brackets.
  • Page 8 135’’ 1500mm (59.06”) 30mm (1.18”) 1520mm (59.84”) 150’’ 1600mm (62.99”) 30mm (1.18”) 1710mm (67.32”) Diagonal Models above 150” require 6 x wall brackets Model/Size X = Wall bracket distance X1 = Bracket hole distance Y = Top/Bottom Wall Bracket Height 30mm (1.18”) 2080mm (81.88’’) 180’’...
