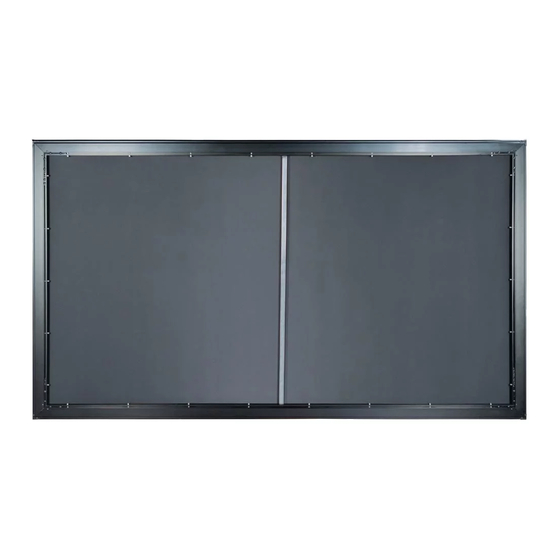

Elite Screens AR2 Series User Manual

Fixed frame, screw adjustment type

Hide thumbs

page of 15

/ 15
Bookmarks

Quick Links

Download this manual

User manual

AR2 fixed frame series

(Screw adjustment type)

Rev. V210929DT

Elite Screens China Corp.

Need help?

Do you have a question about the AR2 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Screens AR2 Series

Page 1 User manual AR2 fixed frame series (Screw adjustment type) Rev. V210929DT Elite Screens China Corp.
Page 2 4) Don’t use acetone, benzene, alcohol, and any other organic solvents to clean the screen material. Using such chemicals will permanently damage the screen. ※ Note: this product is only suitable for ultra-short throw projectors Prepare tools before installation 1. Tape measure 2. Electric drill Marker Screwdriver ammer Elite Screens China Corp. Rev. V210929DT...
Page 3 K. M3 Hex key x 2 L. Fiberglass rod x 4 M. Center support bar x 1 N. Gloves x 2 O. Screen material P. Corner cover x 4 Q. Adjustment bar x 6 R. Protection sheet Elite Screens China Corp. Rev. V210929DT...
Page 4 2. Connect the two Left/Right vertical frame (C) along the corner, install another Horizontal frame (B) in the same way, and assemble the frame as shown in the figure. Horizontal frame (B) Push Push Left/Right vertical frame Elite Screens China Corp. Rev. V210929DT...
Page 5 3. Make sure all four corners are properly in place to form a perfect square, then fasten the four angles with the M5x8 flat head screws (H). Four corners join correctly to form a perfect rectangle. M5x8 flat head screws (H) Elite Screens China Corp. Rev. V210929DT...
Page 6 Heavy weighted object or hand pressure Backside of the screen (Figure (Figure2) Frontside of the screen Backside of the screen Note: Screen back facing up (Face down) (Figure3) Clean, flat and does not harm the screen Elite Screens China Corp. Rev. V210929DT...
Page 7 Adjustment bars (Q) (3, 4, 5, 6) on the fiberglass rod of the long side of the screen. Installation direction of Adjustment bars (Q): Please noticed that four Angle The upper and lower middle adjusting ※ ※ adjusting rods have bevel angles rods are right-angled edges Elite Screens China Corp. Rev. V210929DT...
Page 8 7. Ensure that the sliders in the left and right short frames (two sliders on each side) are fixed 1/4 away from both ends. Note: The screen back facing up ※ Make sure the sliders in the grooves are positioned 1/4 at both frames ※ Align the frame with the line Elite Screens China Corp. Rev. V210929DT...
Page 9 (J) with M3 Hex key (K) in the order of 1-1 → 2-2 → 3-3 → 4-4 → 5-5 → 6-6 → 7-7 → 8-8 → 9-9 → 10-10 → 11-11 → 12-12 → 13-13. (The distance between the adjustment bar and the edge of the frame is 3-4mm. It’s fastened status.) Elite Screens China Corp. Rev. V210929DT...
Page 10 3) After installing screws 1-13, two people lift the frame to check the screen surface. Where there are waves on the screen surface, it can be restored to flat surface by adjusting the tightness of the screws. Check the screen surface is flat of not Elite Screens China Corp. Rev. V210929DT...
Page 11 A & B holes as below picture shown. Verify that product labels are attached Decorate the trim for the bottom frame M3x8 screw (G) Edge trim Screen material Assembly section diagram of edge trim ※ Elite Screens China Corp. Rev. V210929DT...
Page 12 After the bezel trim has been installed, screw off A screw on edge trim (about 2mm gap), then place a corner cover (Q) on all four corners, final screw up the A screw. M3x8 screw(G) Backside of the screen Corner cover (P) Backside of the screen Screen frontside Elite Screens China Corp. Rev. V210929DT...
Page 13 Because the screen material of this product is ambient light rejecting material, only suitable for ultra-short throw projector, installation schematic diagram is as follows: Tabletop mounted ultra-short throw projector ※ Note: Each projector with different Projection Parameters. Please refer to your projector’s distance calculator for proper measurements. Elite Screens China Corp. Rev. V210929DT...
Page 14 AB = CD are 2005mm apart and the points AC = BD are 734.5mm apart. ※ Please make sure that points A and B are horizontal with points C and D and that points A and C are vertical with points B and D. Elite Screens China Corp. Rev. V210929DT...
Page 15 After sliding the screen left or right to the state that it cannot slide, try to make the screen move forward to confirm whether the four wall brackets on the screen are stable and stuck to the four- hole screws. (END) Elite Screens China Corp. Rev. V210929DT...
