Applies to all available screen materials: CineGrey 3D EDGE FREE ™ and CineWhite EDGE FREE ™
Product Description:

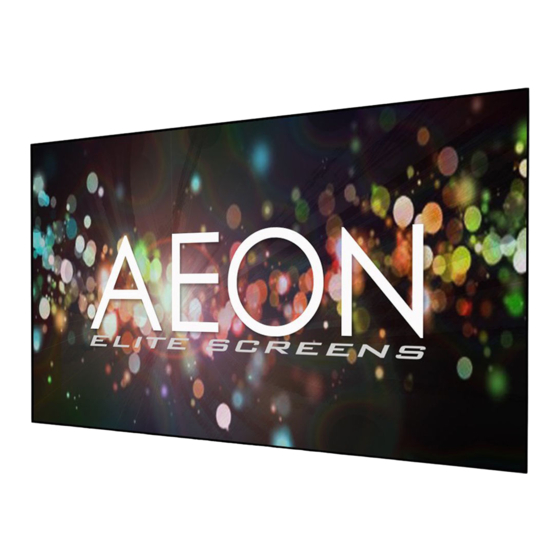

The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE™ technology. The EDGE
FREE™ design resembles a giant size flat panel TV display. The Aeon includes a velvet tape as an installation
option to further enhance the frame appearance and absorb projector overshoot.
backlighting kit is available for added visual appearance. For more information on the LED kit please visit:
http://www.elitescreens.com/led

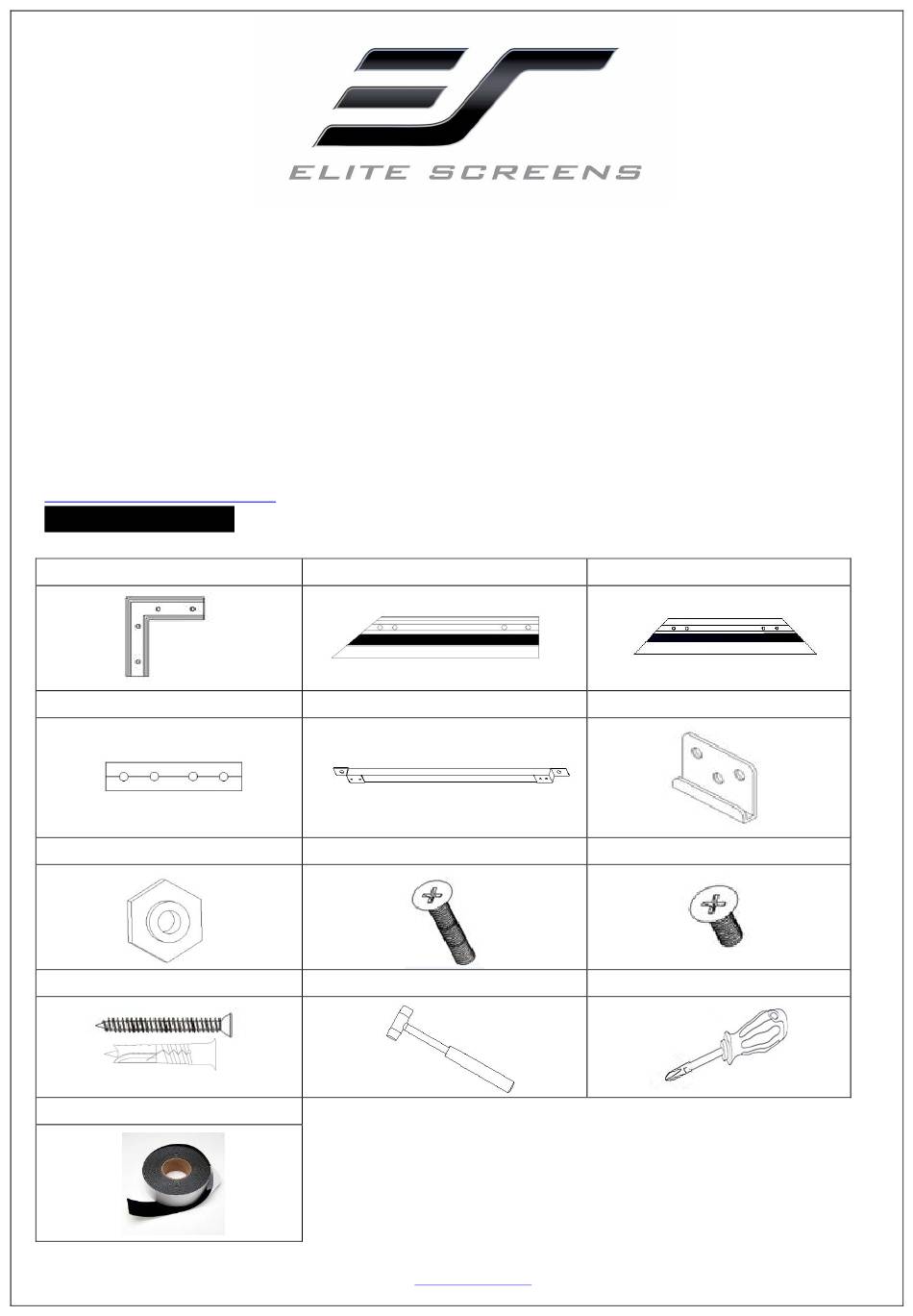

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x 4 pcs
D. Center joints x 2 pcs
G. M6 screw x 2-4 pcs
J. M5x50 screws and anchor x 6 pcs
M. Velvet tape
V150327
Aeon Series
EDGE FREE™ Fixed Frame Projection Screen
User's Guide
B. Top/Bottom horizontal fame x 4 pcs
E. Center support bar x 1-2 pc
H. M5x15 screw x 24 pcs
K. Rubber hammer x 1 pc
www.elitescreens.com
An optional
C. Left/Right vertical frame x 2 pcs
F. Wall brackets x2-3 pcs
I. M6x12 screw x 2-4pcs
L. Screwdriver x1 pc
LED edge
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EDGE FREE Aeon Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Elite Screens EDGE FREE Aeon Series

  • Page 1 Aeon Series EDGE FREE™ Fixed Frame Projection Screen User’s Guide Applies to all available screen materials: CineGrey 3D EDGE FREE ™ and CineWhite EDGE FREE ™ Product Description: The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE™ technology. The EDGE FREE™...
  • Page 2: Frame Assembly

    Frame Assembly Note: Refer to the section “Splicer Installation” if joining two or more frames. 1. Insert the center joint into one of the ½ horizontal frames and fasten it with the two M5x15 screws (H). 2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws. 3.
  • Page 3 6. Insert the two vertical short frames (C) into the elbow joint (A). Horizontal long frame (B) push push Vertical short frame (C) Vertical short frame (C) 7. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below. push push Horizontal Long frame (B)
  • Page 4: Screen Material Installation

    8. Make sure all four corners are properly in place to form a perfect rectangle. Then fasten the four angles with the M5x15 Screws (H). Four corners join correctly to form a perfect rectangle. Use the included screwdriver (L) to fasten the Mx15 screws (H) into each corner by aligning the frame screw holes to the holes in the elbow joint (A).
  • Page 5 3. After all of the corners of the frame have been properly aligned, attach the material to the frame in the following order A→B→C→D (see instructions below for details). Attach the screen material to the corners as shown below. 3) Fold over second side 4) Repeat until all four 1) Stretch the screen 2) Fold over and attach...
  • Page 6 5. Proceed to attach the rest of the material to the frame as described in the illustrations below. Grasp the middle of the screen material and attach it to the velcro strip on the frame Lay the Velcro end on the screen material over the Velcro end of the frame and keep it within the edge.
  • Page 7: Support Bar

    Screen Material Removal Follow the steps to properly remove the screen material from the frame. This procedure will ensure prolonging the life of the screen material. 1. Detach the velcro from the frame. 2. Gently pull back the material to release the material from the velcro connections on the corners Pull back the screen material from the velcro connection along the edges of the frame to detach it.
  • Page 8: Notice To Installer

    Notice to Installer: These instructions only apply if you have the CineGrey 3D ALR material. Please use the following installation instructions to obtain superior optical performance from the Angular Reflective ALR (Ambient Light Rejecting) Screen. Projector Ceiling Installation: Make sure the projector (light in) is angled (ϴ1) to reflect (ϴ2) at the mirror-opposite angle (light out) to align with the viewer’s eye level.
  • Page 9 1) Lay the assembled frame on its back on a clean surface. The Screen 2) Measure 10 mm (0.40”) from the edge of the frame to the inside of the material. 3) Make a light mark with a pencil approximately every 8-10 inches apart. This will help guide the way to making a straight line for the velveteen strip.
  • Page 10 5) Peel off the backing on the velvet strip and align the top edge at the 10 mm mark. Screen Material 6) Continue peeling off the backing until the other side has been reached. Make sure that the velvet strip is kept straight the entire way.
  • Page 11: Installation

    Installation Locate your desired installation location with a stud finder (recommended) and mark the drill-hole area of where the screen is to be installed. 1. Drill a hole with the proper bit size according to the wood screws included. 2. Line up the wall brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver.
  • Page 12 2. Align the position of the M6 screws with the splicer. splicer 3. Join the frames together with the splicer, and tighten the frame and splicer with M6X12 screws as shown in the figure below: For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com V150327 www.elitescreens.com...
