Applies to all available screen materials:

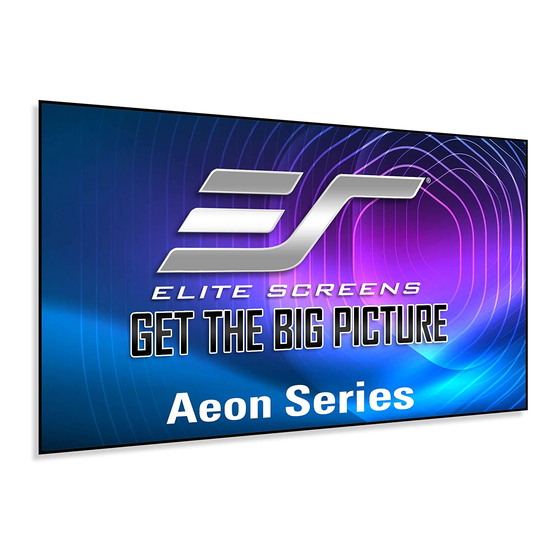

Product Description: The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE® technology.
The EDGE FREE
design resembles a giant size flat panel TV display. The Aeon includes an ultra-thin trim as an
®
installation option to further enhance the frame appearance and absorb projector overshoot. An optional LED
backlighting kit is available for added visual appearance.

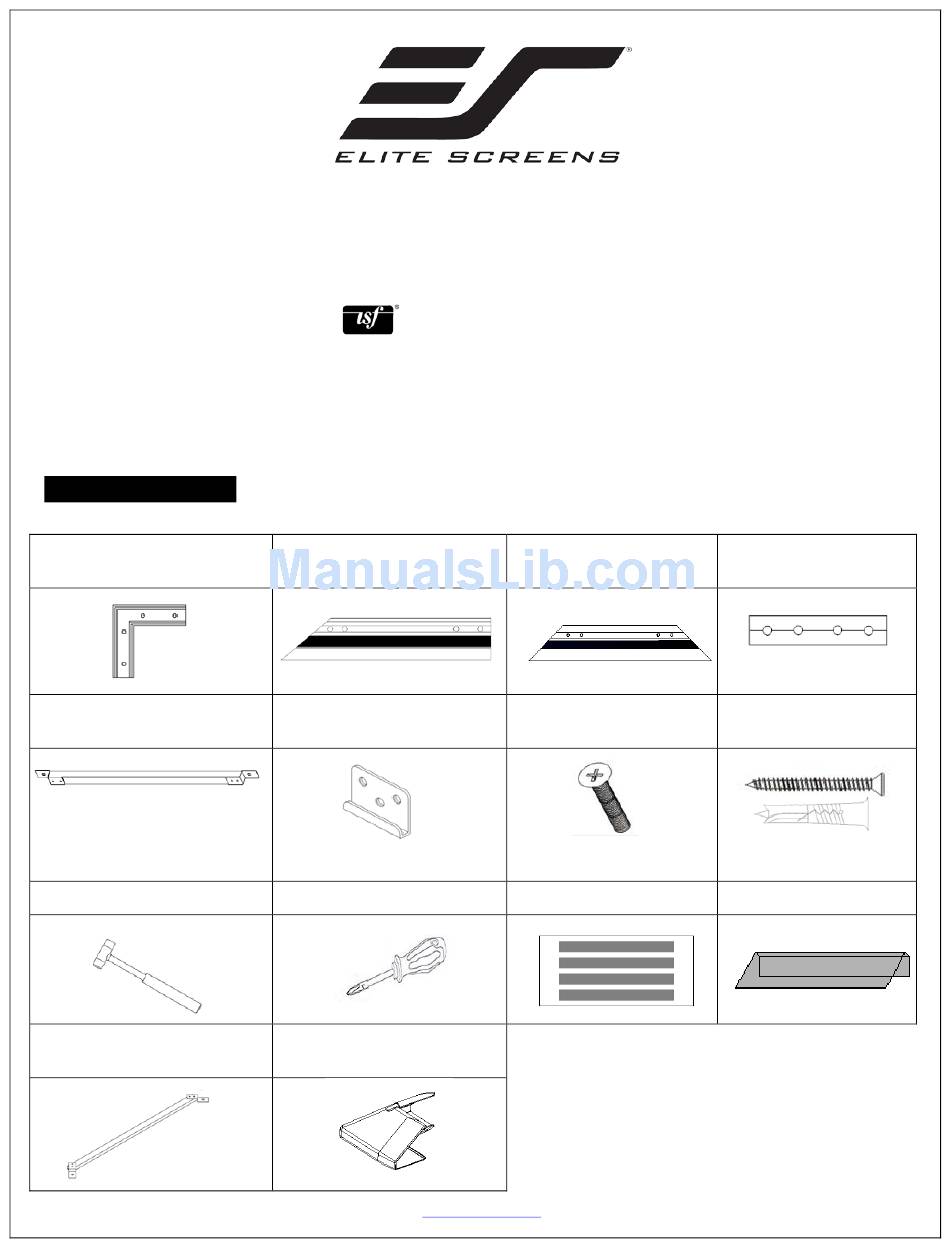

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x4 pcs
E. Center Support bar x1-3 pcs
(135"-150"x2pcs;
180"-200" x3pcs)
I. Rubber hammer x1 pc
Corner Support Bar
M.
(180"-200") x4 pcs
Rev.04/17/2017 DR
Aeon Series
EDGE FREE® Fixed Frame Projection Screen
User's Guide
CineGrey 3D® EDGE FREE
B. Top/Bottom horizontal
fame x4 pcs
F. Wall brackets x2-3 pcs
J. Screwdriver x1 pc
N. Corner sleeve x4 pcs
www.elitescreens.com
and CineWhite® EDGE FREE
®
C. Left/Right vertical
frame x2 pcs
G. M5x15 screw x24 pcs
K.
Black Tape x1 bag
®
D. Center joints x2 pcs
H. M5x50 screws and
anchor x6 pcs
L.
Bezel trim x6 pcs
1
