Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new Aeon
Series purchase! Please read through this user guide before utilizing the screen. Correct usage and maintenance
will ensure a long product life.
Care & Use Instructions
Dust, dirt and scratches on the projection surface will affect the picture quality, please take note of the
points below to prevent that from occurring:
1. Do not touch the projection surface with your hands
2. Do not write or draw on the projection surface
3. Do not use fingers or sharp objects to point on the projection surface; this will damage the screen
material.
4. Use a soft-damp cloth to clean the projection surface; do not use chemical cleaning agents or alcohol.
5. Use clean water when dampening the cleaning cloth and do not rub against the material to clean it.

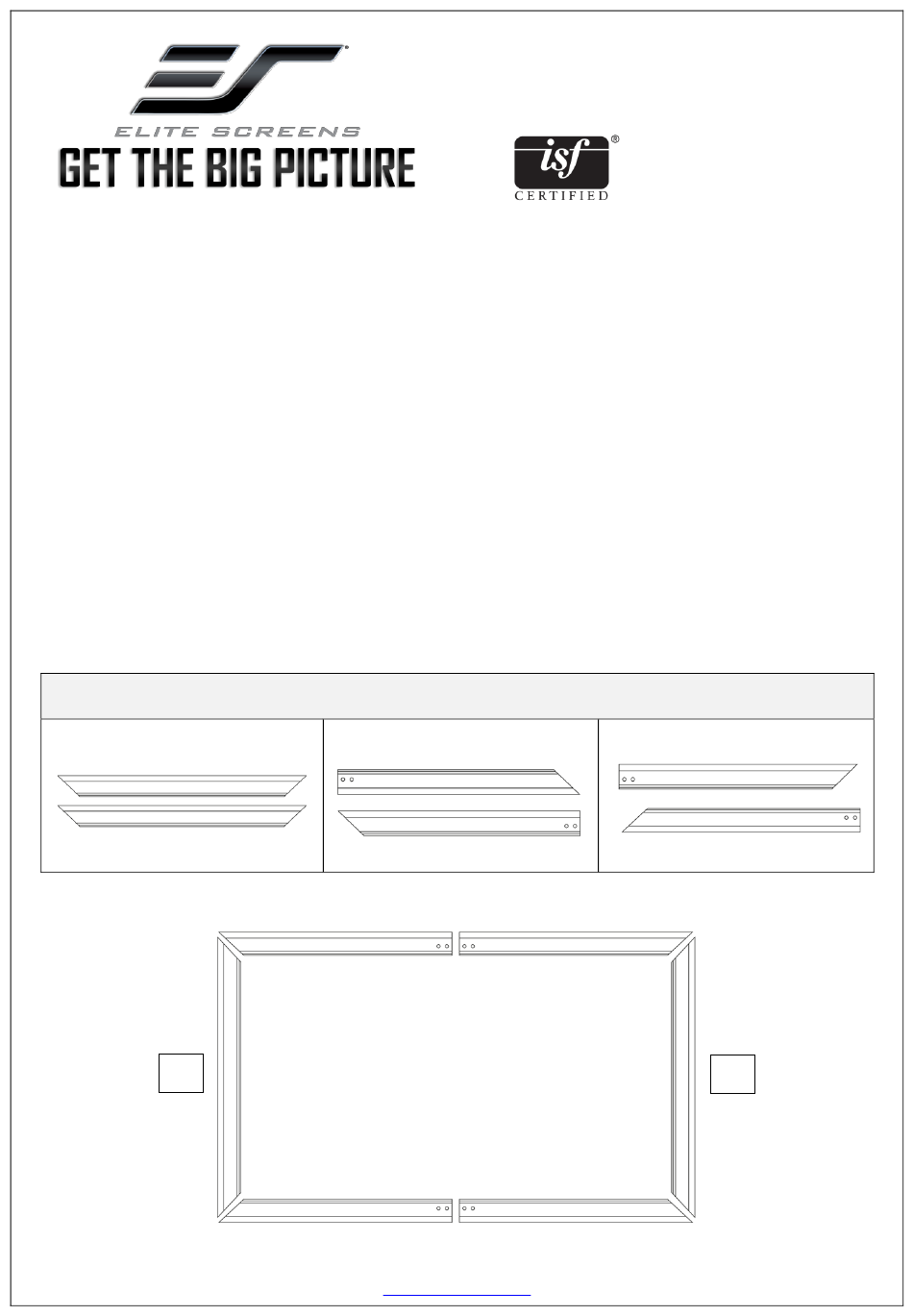

A. Vertical Frame x 2pcs
A
04242020-BR
EDGE FREE® Fixed Frame Screen

Frame Parts List

B. ½ Horizontal Frame x 2pcs
B+C
C+B
www.elitescreens.com
Aeon Series
USER'S GUIDE
Version 2 (Spring type)
C. ½ Horizontal Frame x 2pcs
A
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aeon Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens Aeon Series

Summary of Contents for Elite Screens Aeon Series

  • Page 1 USER’S GUIDE Version 2 (Spring type) Thank you for choosing an Elite Screens fixed frame projection screen! Congratulations on your new Aeon Series purchase! Please read through this user guide before utilizing the screen. Correct usage and maintenance will ensure a long product life.
  • Page 2 mount 2 pc Universal pallet 2. Hardware Parts List M5*12 self tap- 12 p -ping screw 90" 1 100"1 spring 110"1 120"1 Item Parts List AR100H AR120H AR135H AR150H Center Joints Springs Elbow Joints M5*12 Screw Pull Hook Wall Bracket Allen Key Wood Screws/Anchors Tension Rods...
  • Page 3 Step 3. Using the Center Joint (A) connector, connect 2 horizontal frames and securely fasten with Allen key (G). Do the same to the other set of horizontal frames. Step 4. Insert the Elbow Joints (C) to top and bottom sections of the vertical frame.
  • Page 4 Step 7. Carefully place the assembled frame on top of the material and slowly fold the edges over the frame as shown. Make sure to not allow the angle edge of the frame to come in direct contact with the screen material to avoid puncturing it.
  • Page 5 Edge Trim Installation Step 11. Place the Edge Trim over each end of the frame and secure with M5x12 screws (D). Start with the center points first, then the rest of the corners as shown below. Installation Step 11. Measure the overall length and height of the frame and drill holes for the Brackets (F). Line up the wall brackets with the drilled holes on the installation location and screw them in using a Phillips screwdriver.
  • Page 6 5. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or any other impurities. 6. Spare Parts should be placed out of reach of small children in accordance with household safety guidelines. For Technical Support or an Elite Screens contact in your area, please visit www.elitescreens.com 04242020-BR...
