EDGE FREE® Fixed Frame Screen w/ StarBrightCLR®
(Ceiling Light Rejecting) Front Projection Material
Product Description:

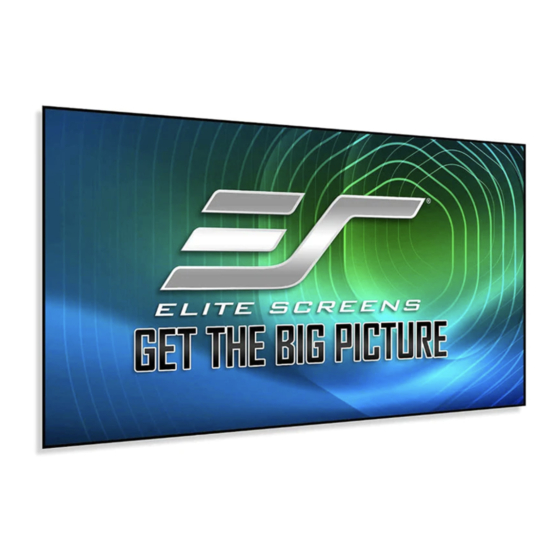

The Aeon CLR™ Series is an ultra-short throw fixed frame projection screen that uses Elite's EDGE FREE
technology. It is designed for with Ultra-Short Throw Projectors only, for use in environments where ceiling light
cannot be entirely controlled. It includes an LED backlight kit and a bezel trim to further enhance the frame appearance.
Screen Maintenance
Dust, dirt and scratches on the projection screen surface will affect the quality and performance of the projection image.
For optimal results we advise to pay attention to the following instructions.
1) The screen surface has a horizontal structure. DO NOT wipe the screen up and down or in a circular motion.
Wipe from left to right only.
2)Please clean the dust on the screen surface with a soft brush or microfiber cloth (rough towel or cloth may damage the
screen's surface).
3) Gently wipe the screen with a moistened microfiber cloth with mild soap diluted in water.
Notes：
The following precautions should be followed at all times to avoid damaging the material, which is not
covered under warranty.
Don't touch the screen material to avoid leaving fingerprints. Use gloves when handling the material.
Don't scratch the material,as it will leave permanent markings on the screen's surface.
Don't point to the screen material with a fingertip or other sharp objectsto prevent damage to the material.
Don't use acetone, benzene, alcohol and any other organic solvents to clean the screen material. Using such
chemicals will permanently damage the screen.
Assembly Video
Watch our assembly video on-line at
www.elitescreens.com/aeonCLR_assembly
or scan the QR code
Rev.071816-DR
AeonCLR™ Series
User's Guide
www.elitescreens.com
®
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the aeonclr series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens aeonclr series

Summary of Contents for Elite Screens aeonclr series

  • Page 1 AeonCLR™ Series EDGE FREE® Fixed Frame Screen w/ StarBrightCLR® (Ceiling Light Rejecting) Front Projection Material User’s Guide Product Description: ® The Aeon CLR™ Series is an ultra-short throw fixed frame projection screen that uses Elite’s EDGE FREE technology. It is designed for with Ultra-Short Throw Projectors only, for use in environments where ceiling light cannot be entirely controlled.

  • Page 2: Frame Assembly

    Hardware and Parts List Please make sure all parts listed below are included before installation. B. Top/Bottom horizontal frame x A. Elbow joint x 4 pcs C. Left/Right vertical frame x 2 pcs D. Center joints x 2 pcs 4 pcs E.
  • Page 3 5. Insert the elbow joint (A) into each end of the horizontal frames (B) as shown below. Elbow Joint (A) ElbowJoint (A) Horizontal long frame (B) Push 6. Insert the two vertical short frames(C) into the elbow joint (A). Horizontal long frame (B) push push Vertical short frame(C)

  • Page 4: Screen Material Installation

    8. Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles with the M5x15 Screws (H). Four corners join correctly to form a perfect rectangle. Use the included screwdriver (L) to fasten the Mx15 screws (H) into each corner by aligning the frame screw holes to the holes in the elbow joint (A).
  • Page 5 4. Carefully and gently place the assembled frame place the assembled frameon top of the screen material as shown below as shown below. Make sure to not allow the angle edge of the frame to come in direct contact with the material to avoid puncturing allow the angle edge of the frame to come in direct contact with the material to avoid puncturing allow the angle edge of the frame to come in direct contact with the material to avoid puncturing or damaging it.
  • Page 6 6. After all four corners have been attached; please check whether the screen material wraps the frame corners. If not, please loosen the Velcro connection and repeat the above steps so the frame is not exposed. Note: The black shaded part represents the Velcro on the Note: frame.
  • Page 7 Screen Material Removal Follow the steps to properly remove the screen material from the frame. This procedure will ensure prolonging the life of the screen material. 1. Detach the Velcro from the frame. 2. Gently pull back the material to release the material from the Velcro connections on the corners Pull back the screen material from the Velcro connection along the edges of the frame to detach it.
  • Page 8 Figure 2 NOTE: Make sure the bottom edge trim with the Elite Screens logo is installed on the correct side. The back of the material should be labeled with a DOWN sticker to indicate the material is facing in the down position. The Elite Screens logo should be installed on the DOWN side Rev.071816-DR...
  • Page 9 3. After properly aligning all trim pieces, carefully remove trim piece After properly aligning all trim pieces, carefully remove trim piece A (see Figure 3 below). Remove the inside (see Figure 3 below). Remove the inside backing of the tape and place the trim piece in its original position on the frame. Repeat this step for the remaining backing of the tape and place the trim piece in its original position on the frame.
  • Page 10 StarBright CLR® Proper Projector Placement for The StarBright CLR® is exclusively for table-mounted ultra-short throw projectors as illustrated in example 1 below. Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent layer deflecting light that is not aligned with its reflective angle. Example 1: Proper Projector Installation Example 2: Improper Projector Installation Rev.071816-DR...

  • Page 11: Installation

    4) The design of the wall brackets allows the frame to slide over them through its sides. This is an important feature of the installation design as it allows your screen to be properly centered. Bracket Frame Wall For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com Rev.071816-DR www.elitescreens.com...
