Product Description:
Congratulations on your new Aeon purchase!

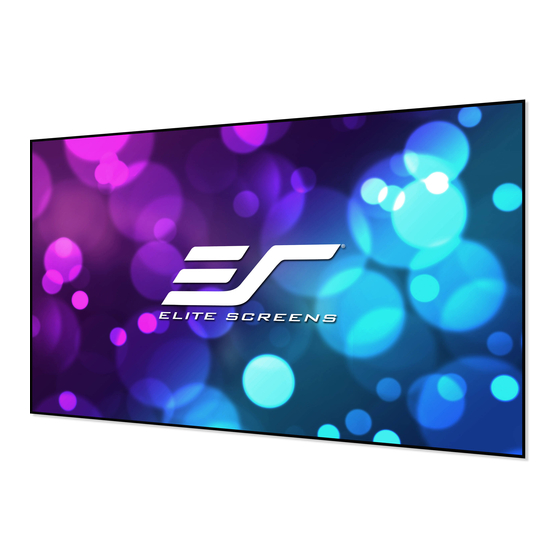

The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE® technology. The EDGE FREE®
design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame
appearance and absorb projector overshoot. An optional LED kit is available for backlighting.
The screen material included is our ISF Certified CineGrey 3D® which is a front projection material, precisely
formulated for environments with minimal control over room lighting. It was designed to enhance picture brightness,
offer accurate color fidelity, and improve contrast levels. The CineGrey 3D® is best for family rooms, educational
facilities, conference rooms, house of worship or any applications in which incident light is a factor.
In order for the CineGrey 3D® to maintain its projection qualities and optimum performance please refer to the list
below for proper maintenance and cleaning.
•
Use a dry microfiber cloth to remove dust from the screen's surface.
•
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
•
Never rub or apply pressure when cleaning the surface.
•
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
•
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other
sharp or abrasive objects.
12232022JA
Aeon CineGrey 3D® Series
EDGE FREE® Ceiling/Ambient Light Rejecting
www.elitescreens.com
Fixed Frame Screen
USER'S GUIDE
Version 3.1 (Spring type) | M Type
U-00237
1
