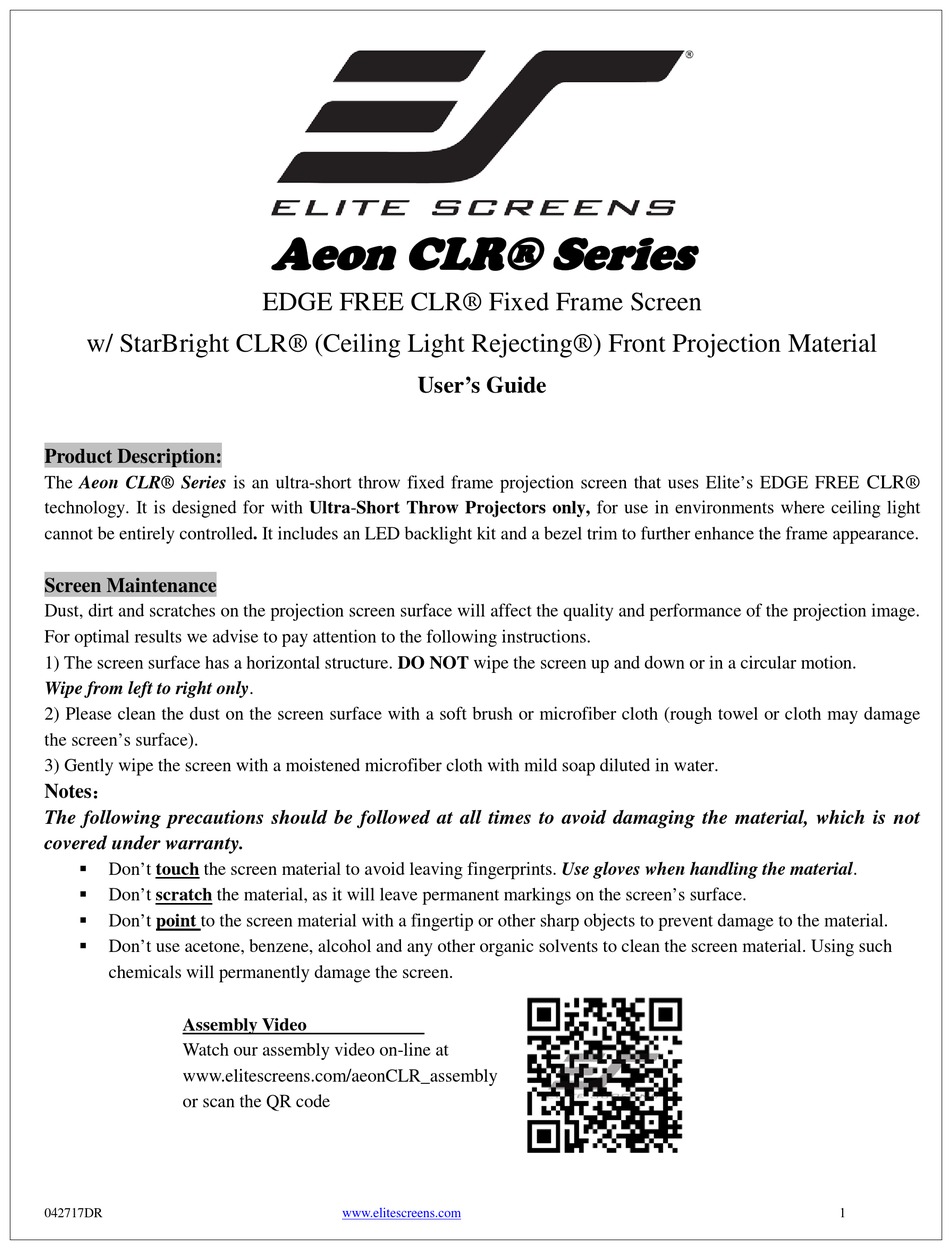

w/ StarBright CLR® (Ceiling Light Rejecting®) Front Projection Material
Product Description:
The Aeon CLR® Series is an ultra-short throw fixed frame projection screen that uses Elite's EDGE FREE
technology. It is designed for with Ultra-Short Throw Projectors only, for use in environments where ceiling light
cannot be entirely controlled. It includes an LED backlight kit and a bezel trim to further enhance the frame appearance.
Screen Maintenance
Dust, dirt and scratches on the projection screen surface will affect the quality and performance of the projection image.
For optimal results we advise to pay attention to the following instructions.
1) The screen surface has a horizontal structure. DO NOT wipe the screen up and down or in a circular motion.
Wipe from left to right only.
2) Please clean the dust on the screen surface with a soft brush or microfiber cloth (rough towel or cloth may damage
the screen's surface).
3) Gently wipe the screen with a moistened microfiber cloth with mild soap diluted in water.
Notes：
The following precautions should be followed at all times to avoid damaging the material, which is not
covered under warranty.
Don't touch the screen material to avoid leaving fingerprints. Use gloves when handling the material.
Don't scratch the material, as it will leave permanent markings on the screen's surface.
Don't point to the screen material with a fingertip or other sharp objects to prevent damage to the material.
Don't use acetone, benzene, alcohol and any other organic solvents to clean the screen material. Using such
chemicals will permanently damage the screen.
Assembly Video
Watch our assembly video on-line at
www.elitescreens.com/aeonCLR_assembly
or scan the QR code
042717DR
Aeon CLR® Series
EDGE FREE CLR® Fixed Frame Screen
User's Guide
www.elitescreens.com
CLR®
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Aeon CLR Series and is the answer not in the manual?

Questions and answers

Related Manuals for Elite Screens Aeon CLR Series

Summary of Contents for Elite Screens Aeon CLR Series

  • Page 1 Aeon CLR® Series EDGE FREE CLR® Fixed Frame Screen w/ StarBright CLR® (Ceiling Light Rejecting®) Front Projection Material User’s Guide Product Description: CLR® The Aeon CLR® Series is an ultra-short throw fixed frame projection screen that uses Elite’s EDGE FREE technology.
  • Page 2 Hardware and Parts List Please make sure all parts listed below are included before installation. B. Top/Bottom horizontal frame A. Elbow joint x4 pcs C. Left/Right vertical frame x2 pcs D. Center joints x2 pcs x4 pcs E. Center support bar x1-2 pcs F.
  • Page 3 5. Insert the two vertical short frames (C) into the elbow joint (A). Horizontal long frame (B) push push Vertical short frame(C) 6. Join the remaining horizontal long frame (B) with the frame built in the previous steps as shown below. Horizontal Long frame (B) Push Push...

  • Page 4: Screen Material Installation

    Screen Material Installation Please read this important note before proceeding with the installation process of the material: Before handling the StarBright CLR® material, put on the supplied pair of white gloves to avoid leaving fingerprint marks, dust or hand oil on the material’s surface (Figure 1). The StarBright CLR® material is very delicate and should be handled with extreme care.
  • Page 5 5. After all of the corners of the frame have been properly aligned (example D), attach the material on the frame in the following order A→B→C→D (see instructions below for details). Attach the screen material to the corners as shown below. 1) Stretch the screen material in 3) Fold over second side 4) Repeat until all four sides...
  • Page 6 Grasp the middle of the screen material and attach it to the Velcro strip on the frame Lay the Velcro end on the screen material over the Velcro end of the frame and keep it within the edge. ①② Proceed in the following sequence The key is to attach within the middle sections of 1 and 2.
  • Page 7 Pull back the screen material from the Velcro connection along the edges of the frame to detach it. Support bar installation: 1. Position the center support bar (E) in the middle of the frame and align the hole on each end of the support bar with the M6 hex screws on the top and bottom frames.
  • Page 8 NOTE: Make sure the bottom edge trim with the Elite Screens logo is installed on the correct side. The back of the material should be labeled with a DOWN sticker to indicate the material is facing in the down position. The Elite Screens logo should be installed on the DOWN side 3.
  • Page 9 The front side of the frame with trim pieces attached. Corner gap will be covered by Figure 3 the corner sleeve (M). 4. After the bezel trim has been installed, place a corner sleeve (M) on all four corners. Begin by aligning and adjusting the corner sleeve through the front of the screen.

  • Page 10: Notice To Installer

    Notice to Installer: StarBright CLR® Proper Projector Placement for The StarBright CLR® is exclusively for table-mounted ultra-short throw projectors as illustrated in example 1 below. Overhead placement or a standard projector will make the image very dark, on account of the screen’s absorbent layer deflecting light that is not aligned with its reflective angle.
  • Page 11 4) The design of the wall brackets allows the frame to slide over them through its sides. This is an important feature of the installation design as it allows your screen to be properly centered. Frame Bracket Wall For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com 042717DR www.elitescreens.com...
