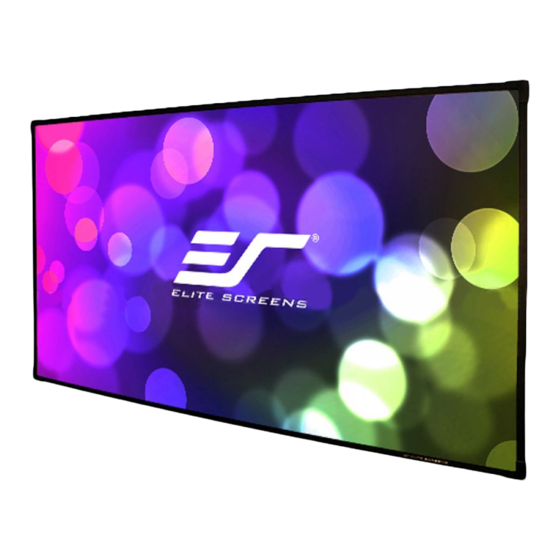

Product Description: The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE®
technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes a velvet tape
as an installation option to further enhance the frame appearance and absorb projector overshoot. An optional LED
backlighting kit is available for added visual appearance.
Assembly Video: For further assistance, watch our assembly and installation video at
www.elitescreens.com/video/aeon-assembly
For more information on the LED kit please visit:

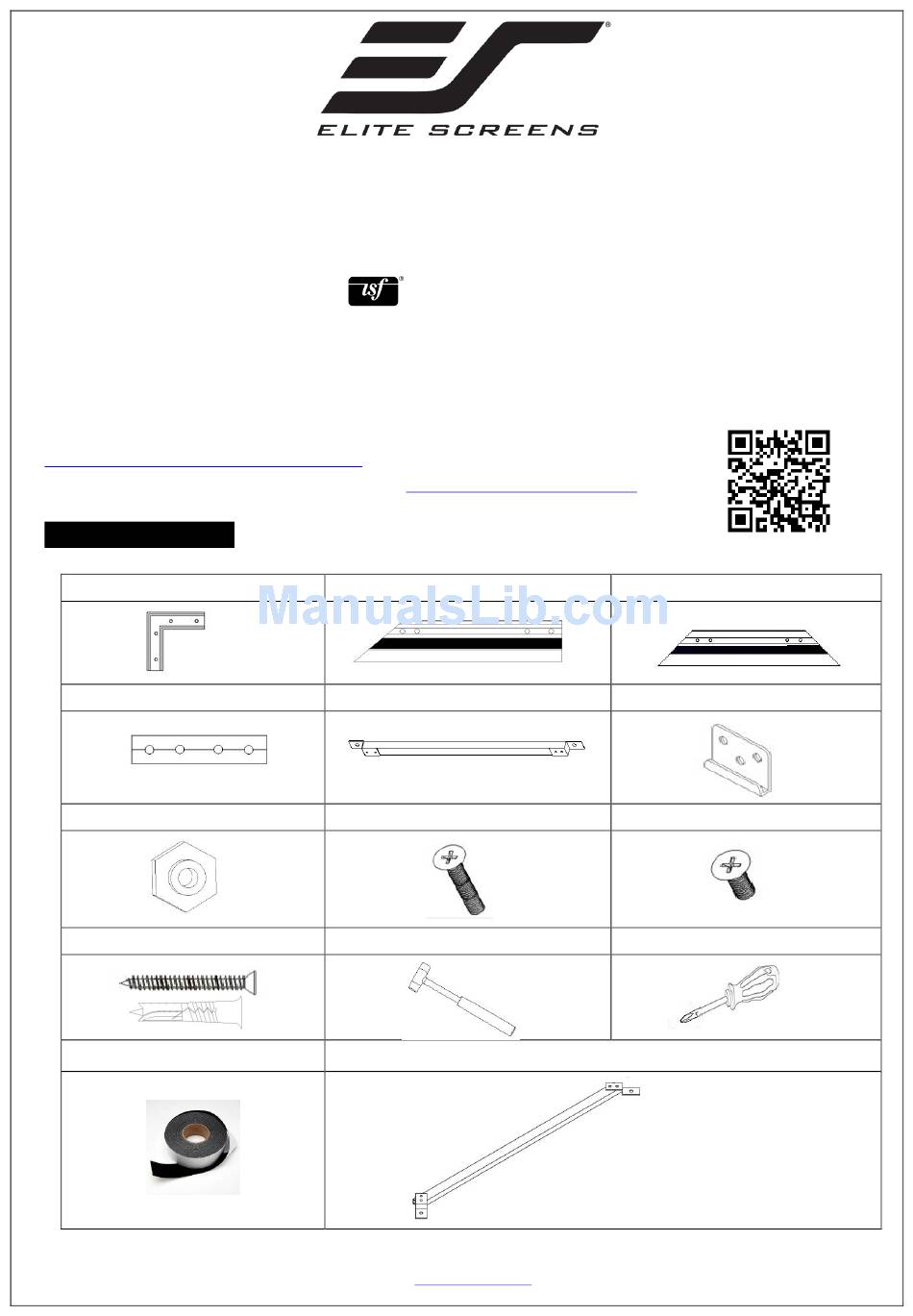

Hardware and Parts List
Please make sure all parts listed below are included before installation.
A. Elbow joint x 4 pcs
D. Center joints x 2 pcs
G. M6 screw x 2-12 pcs
J. M5x50 screws/anchor x 6 pcs
M. Velvet tape
V051616-EA
Aeon Series
EDGE FREE® Fixed Frame Projection Screen
User's Guide
CineGrey 3D, CineGrey and CineWhite
or scan the following QR Code:
http://www.elitescreens.com/led
B. Top/Bottom horizontal fame x 4 pcs
E. Center Support bar x 1-2 pc
H. M5x15 screw x 24 pcs
K. Rubber hammer x 1 pc
N. Corner Support Bar (180"-200") x4pcs
www.elitescreens.com
C. Left/Right vertical frame x 2 pcs
F. Wall brackets x2-3 pcs
I. M6x12 screw x 2-12pcs
L. Screwdriver x1 pc
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Elite Screens AR120WH2
Summary of Contents for Elite Screens AR120WH2
- Page 1 Aeon Series EDGE FREE® Fixed Frame Projection Screen User’s Guide Applies to all available screen materials: CineGrey 3D, CineGrey and CineWhite Product Description: The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes a velvet tape as an installation option to further enhance the frame appearance and absorb projector overshoot.
- Page 2 Frame Assembly 1. Insert the center joint (D) into one of the ½ horizontal frames (B) and fasten it with the two M5x15 screws (H). 2. Insert the other ½ horizontal frame piece to the center joint and fasten also using two M5x15 screws. 3.
- Page 3 6. Insert the two vertical short frames (C) into the elbow joint (A). Horizontal long frame (B) push push Vertical short frame (C) Vertical short frame (C) Note: For models 180” and above, ensure two M6 screws (G) are inserted on each vertical frame before proceeding to step 7.
- Page 4 8. Make sure all four corners are properly in place to form a perfect square. Then fasten the four angles with the M5x15 Screws (H). Four corners join correctly to form a perfect square. Use the included screwdriver (L) to fasten the Mx15 screws (H) into each corner by aligning the frame screw holes to the holes in the elbow joint (A).
- Page 5 3. After all of the corners of the frame have been properly aligned, attach the material to the frame in the following order A→B→C→D (see instructions below for details). Attach the screen material to the corners as shown below. 1) Stretch the screen 3) Fold over second side 4) Repeat until all four 2) Fold over and attach...
- Page 6 5. Proceed to attach the rest of the material to the frame as described in the illustrations below. Grasp the middle of the screen material and attach it to the velcro strip on the frame Lay the Velcro end on the screen material over the Velcro end of the frame and keep it within the edge.
- Page 7 6. If the material is too loose or tight after adjusting all four corner sides, then you will need to reattach the material. Please follow the steps below to properly remove the screen material from the frame. This procedure will ensure prolonging the life of the screen material.
- Page 8 Support bar installation (for models 180” and above): 1. Position the center support bar (E) and M6 hex screws (G) in the areas of the frame shown in fig 1. Align the hole on each end of the support bar with the M6 hex screws (G) located at the top and bottom frame sections.
- Page 9 Notice to Installer: Please use the following installation instructions to obtain superior optical performance from the CineGrey 3D Angular Reflective ALR (Ambient Light Rejecting) Screen. Make sure to follow these instructions in order for the CineGrey 3D to perform correctly. •Angular-Reflective material is not compatible with ultra/short-throw projectors •Minimum lens throw ratio 1.5x image width •Ambient light must not come from the same direction as the projector...
- Page 10 Velvet Tape Trim Installation Attention: Installing the velvet trim will reduce the viewing size of your screen. See below illustrations for a comparison of the viewing size of the before and after edge trim installation using the 100” & 120” 16:9 diagonal models.
- Page 11 3) Make a light mark with a pencil approximately every 8-10 inches apart. This will help guide the way to making a straight line for the velveteen strip. 10” 10” 4) Repeat steps 2 and 3 on the remaining sides 5) Peel off the backing on the velvet strip and align the top edge at the 10 mm mark.
- Page 12 4. The design of the wall brackets allows the frame to slide over them through its sides. This is an important feature of the installation design as it allows your screen to be properly centered. For a local Elite Screens contact or Technical Support, please visit www.elitescreens.com V051616-EA www.elitescreens.com...
