Product Description:

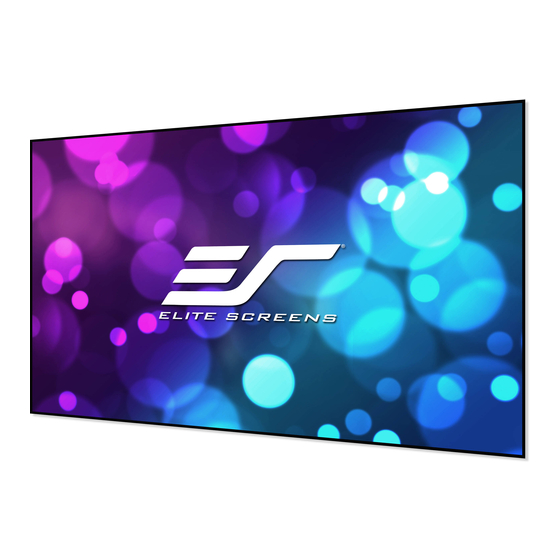

The Aeon Series is a fixed frame projection screen that uses Elite's EDGE FREE® technology. The EDGE FREE®
design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame
appearance and absorb projector overshoot. An optional LED kit is available for backlighting.
Congratulations on your new Aeon CineGrey 3D® AT purchase! The ISF Certified CineGrey 3D® AT is an
ambient and ceiling light rejecting (ALR/CLR®) front projection screen material that is perforated for acoustic
transparency. It is precisely formulated for environments with minimal control over room lighting. It was designed
to enhance picture brightness, offer accurate color fidelity, improve contrast and allow sound to pass through.
In order for the CineGrey 3D® AT material to maintain its projection qualities and provide optimum performance
please refer to the list below for proper maintenance and cleaning.
•
Use a dry microfiber cloth to remove dust from the screen's surface.
•
When cleaning, use a damp microfiber cloth with warm water to remove any marks.
•
Never rub or apply pressure when cleaning the surface.
•
Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.
•
In order to avoid damaging the screen, avoid touching it directly with your fingers, pens/pencils or any other
sharp or abrasive objects.
Qty
item
Part A.
Part B.
Part C.
JA04012020

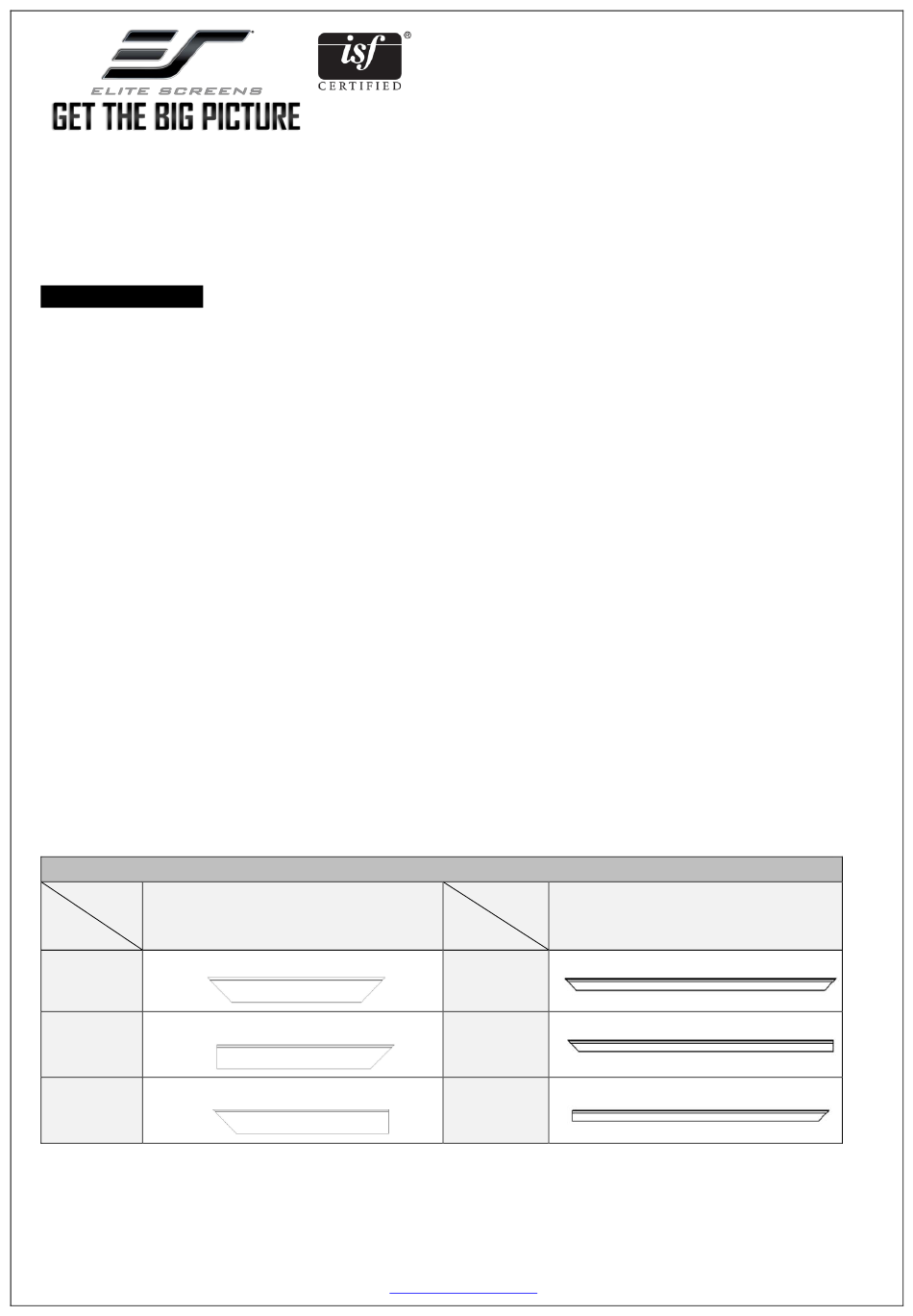

1. Frame and Edge Trim Parts List
2 pcs
Main Frame Parts
vertical frame
½ horizontal frame
½ horizontal frame
Aeon CineGrey 3D® AT Series
Ceiling Ambient Light Rejecting Acoustically
Transparent EDGE FREE® Fixed Frame Screen
Qty
item
Part D.
Part E.
Part F.
www.elitescreens.com
USER'S GUIDE
2 pcs
Edge Trim Parts
U-00157
V2
1
Advertisement
Related Manuals for Elite Screens Aeon CineGrey 3D AT Series
Summary of Contents for Elite Screens Aeon CineGrey 3D AT Series
- Page 1 Aeon CineGrey 3D® AT Series Ceiling Ambient Light Rejecting Acoustically Transparent EDGE FREE® Fixed Frame Screen USER’S GUIDE Product Description: The Aeon Series is a fixed frame projection screen that uses Elite’s EDGE FREE® technology. The EDGE FREE® design resembles a giant size flat panel TV display. The Aeon includes a bezel trim to further enhance the frame appearance and absorb projector overshoot.
-
Page 2: Hardware Parts List
2. Hardware Parts List M4*4 D5*4 M4*4 D5*4 M4*4 M4*4 Item Parts List AR100H AR110H AR120H Center Joints- M4 (bottom position) Center Joints-D5 (top position) Elbow Joints M4 (bottom position) Elbow Joints D5 (top position) Side cover Center Joints- M4 Side cover Elbow Joints M4 M4x7 Screws Spring... -
Page 3: Frame Assembly
Frame Assembly Step 1: Place the included soft padded EPE sponge sheet on a clean area where the screen will be assembled. Step 2: Position the pieces of the frame on the EPE sponge in the arrangement shown below Step 3: Insert center joint (a/b) connectors into one-half of the horizontal frame (B/C) and secure with the M4x7 screws (M) as shown in the illustration below. - Page 4 Screen Material Step 6: Turn the frame over on its front side. Then attach the black blacking cloth on the frame with the velcro from the center of the frame to the corners. Velcro Velcro Step 7: Put on the white gloves (p) and carefully unroll the screen material on a clean surface from the roller to the other side as shown below.
- Page 5 Step 8: Carefully and gently place the assembled frame on top of the screen material in the marked areas as shown below. Make sure to not allow the angle edge of the frame to come in direct contact with the screen material to avoid puncturing it.
- Page 6 Note (after all springs have been attached): Correct material installation –Corners of the screen material are properly wrapped around the corner edges of the frame and material is evenly tensioned and flat, creating a nicely taut surface. Incorrect material installation –The corners of the screen material are not properly wrapped along the edge of the frame leaving the material with unbalanced tension and an uneven finish.
- Page 7 Connect edge trim frames (e/f) together using the M4 center joint (e) and secure with four of the M4x4 screws (m) as show in Step 1. Repeat for other side. Once both top and bottom edge trim frames have been connected, attach the vertical (left/right) sides edge trim frames (d) using the elbow joints (f) and secure with four M4x4 screws (m) on all corners, Step 2.
- Page 8 Notice to Installer: Please use the following installation instructions to obtain superior optical performance from the CineGrey 3D® Angular Reflective ALR (Ambient Light Rejecting) Screen. Make sure to follow these instructions in order for the CineGrey 3D® to perform correctly. 1.
-
Page 9: Wall Installation
Step 14: Position the fixed frame screen onto the top wall brackets as shown below and push down at the center of the top of the frame to secure. For Technical Support or an Elite Screens contact in your area, visit www.elitescreens.com...
