All following data were acquired in SharpCap with ASCOM driver:
Camera setting used for HCG performance analysis is shown below:
Full resolution
RAW 12-bit mode
Temperature: -10C

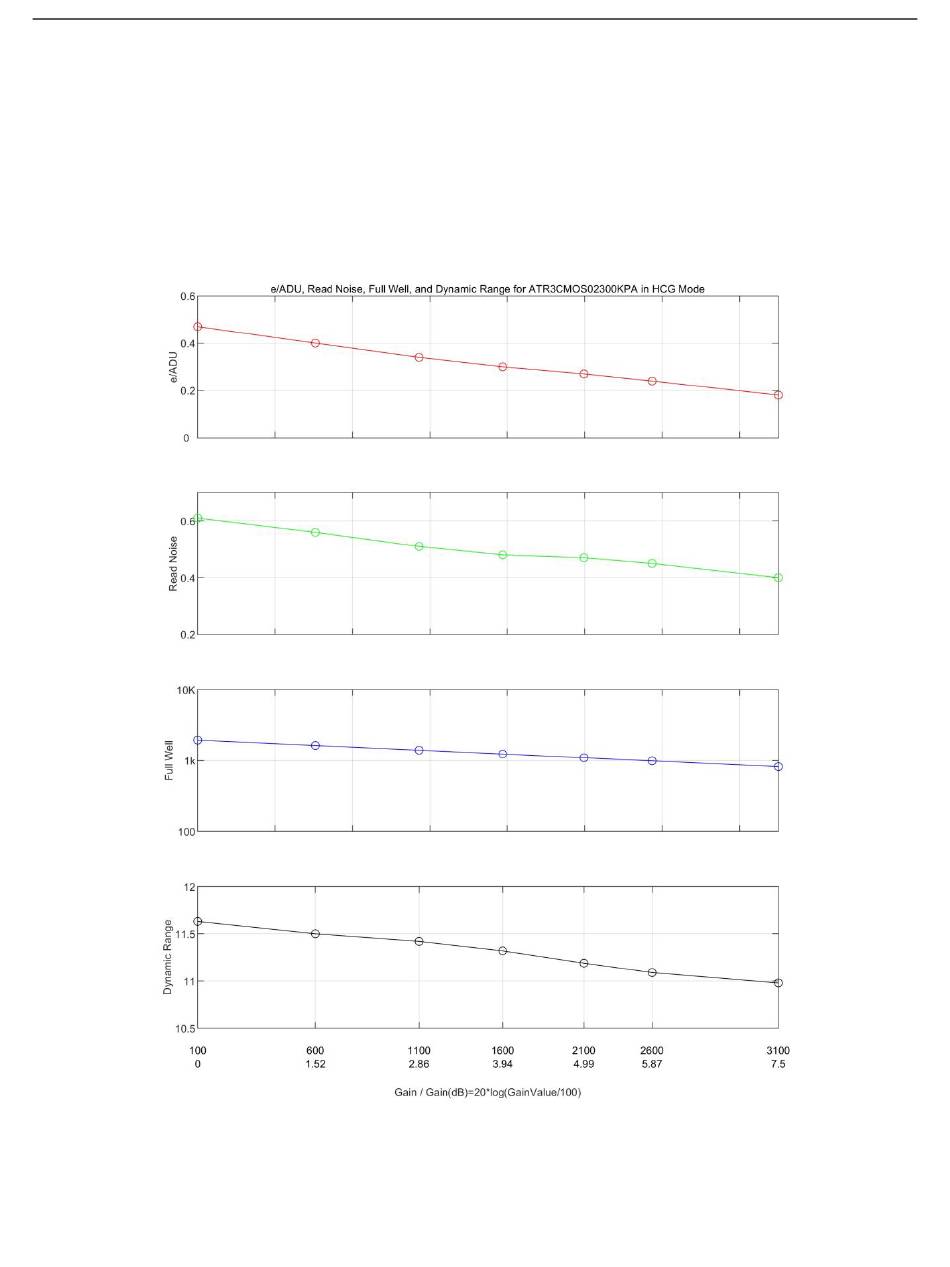

Figure 5 shows the curves of the camera analysis data in Table 3
Figure 5 e/ADU, Read Noise, Full Well and Dynamic Range for ATR2110C
ATR2110C(ATR3CMOS02300KPA) User Manual
6
