1 Description and Features

The ATR2110C(ATR3CMOS02300KPA) camera is designed specifically for astrophotography. Large image area, big pixel
size and high sensitivity make it suitable for night sky live broadcasting and meteor monitoring. It can be also used for deep
sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. Its extraordinary
performance and extensive usage will give you great astrophotography experience.
The features of ATR2110C are listed below:
⚫ SC2110 Color CMOS Sensor
⚫ Resolution: 1920 x 1200
⚫ 12μm Square Pixel
⚫ 1.69-inch Optical Format
⚫ 12-bit ADC
⚫ 512 Mbyte Memory
⚫ Precise Temperature Regulation
⚫ G Sensitivity: 120000 mV/Lux · s @HCG，10900 mV/Lux · s @LCG
⚫ Zero Amp-Glow
⚫ Ultra-Low Noise: 0.4 to 0.61e-@HCG
⚫ Support High Frame Rate Mode (120 FPS at all Pixel Readout 8 bit @LCG)
⚫ SNR Max: 50 dB
⚫ Dynamic Range: 72 dB (Linear Mode)
⚫ -35C below ambient under short exposure/ -42C under long exposure time (> 1s)

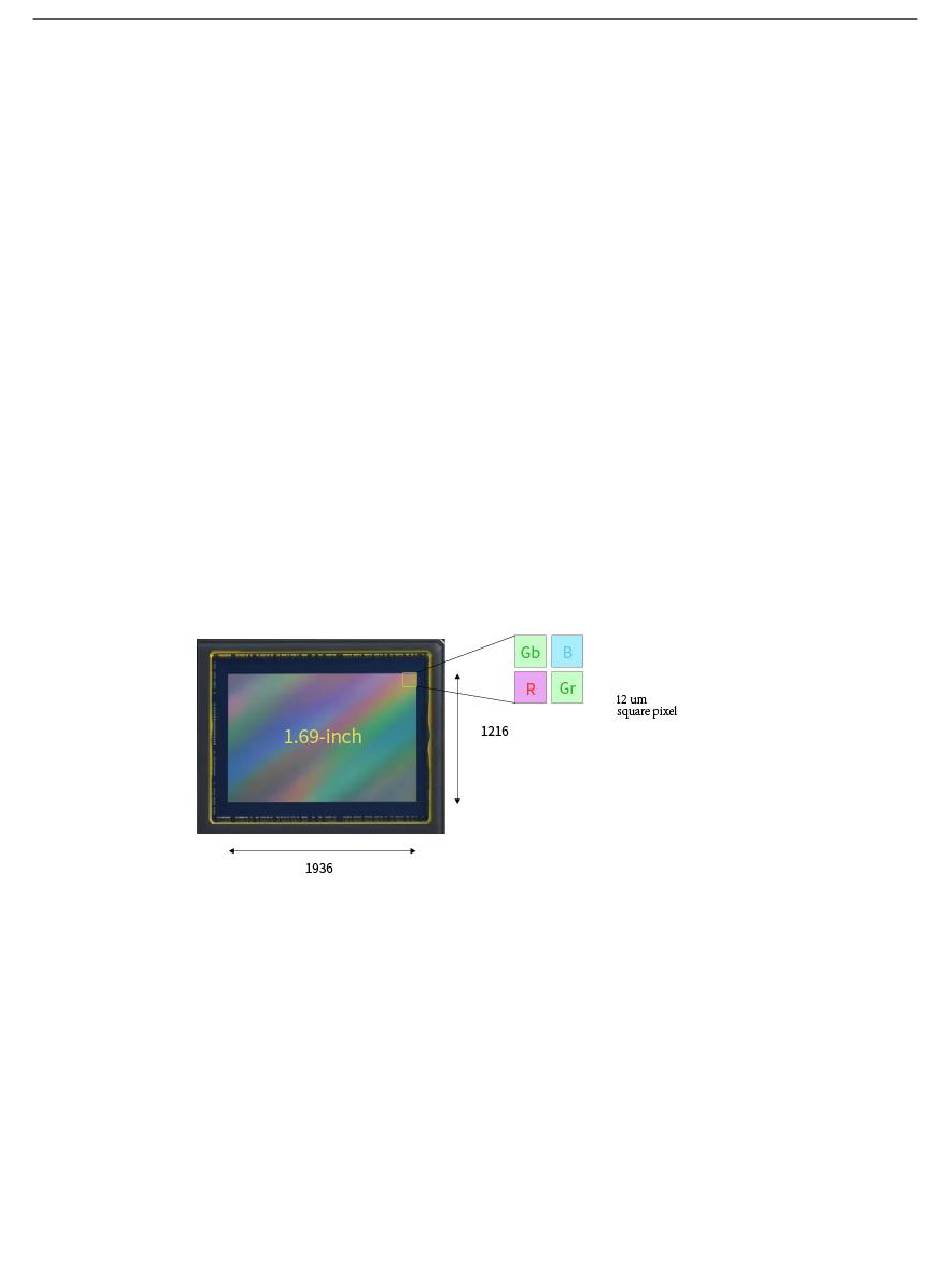

Figure 1 SC2110 Sensor and Its Pixel Structure
