- Page 1 ATR2110C(ATR3CMOS02300KPA) User Manual ATR2110C User Manual Version 1.0 Apr 2024 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek-astro.com.
-
Page 2: Table Of Contents
ATR2110C(ATR3CMOS02300KPA) User Manual Contents ATR2110C User Manual .............................. 1 Description and Features............................1 ATR2110C Specifications and Performance....................... 2 Camera Specifications ............................. 2 SmartSens SC2110 QE Curve ......................... 2 12bit ADC and ROI ............................3 DDR3 Buffer..............................3 Binning ................................3 Conversion Gain Switch .......................... -
Page 3: Atr2110C User Manual

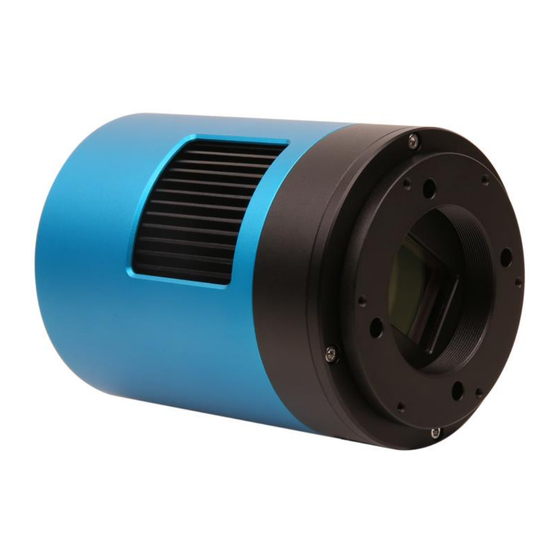

ATR2110C(ATR3CMOS02300KPA) User Manual 1 Description and Features The ATR2110C(ATR3CMOS02300KPA) camera is designed specifically for astrophotography. Large image area, big pixel size and high sensitivity make it suitable for night sky live broadcasting and meteor monitoring. It can be also used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. -
Page 4: Atr2110C Specifications And Performance
Windows® XP / Vista / 7 / 8 / 10 / 11 (32 & 64 bit) Supported OS OS x (Mac OS X) Linux 2.2 SmartSens SC2110 QE Curve The sensor G Sensitivity of ATR2110C is 120000 mV/Lux·s @HCG，10900 mV/Lux·s @LCG . Its QE Curve is shown in Figure 2. -
Page 5: 12Bit Adc And Roi
2.3 12bit ADC and ROI ATR2110C has built in 12bit ADC. It also has 12bit output mode for hardware binning and smaller resolution. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is. -
Page 6: Zero Amp-Glow
2.8 Zero Amp-Glow ATR2110C has been carefully designed and is able to achieve zero amp-glow photo shooting. Figure 3 and Figure 4 show the different cameras at 20C and 5-minute exposure time with and without amp-glow. By comparison, the image captured by ATR2110C shows zero amp-glow. - Page 7 ATR2110C(ATR3CMOS02300KPA) User Manual ������ ��������(����) = 20 ∗ ������ [������(�������� ����������)/100] (������ ��������(����)/20 ������(�������� ����������) = 100 × 10...
- Page 8 Camera setting used for HCG performance analysis is shown below: ⚫ Full resolution ⚫ RAW 12-bit mode ⚫ Temperature: -10C Figure 5 shows the curves of the camera analysis data in Table 3 Figure 5 e/ADU, Read Noise, Full Well and Dynamic Range for ATR2110C...
- Page 9 ATR2110C(ATR3CMOS02300KPA) User Manual The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data Sensor Analysis Data Gain Value 1100 1600 2100 2600 3100 Rel Gain (dB) 0.00 1.52 2.86 3.94 4.99 5.87 e-/ADU 0.47 0.34 0.27 0.24...
- Page 10 Camera setting used for LCG performance analysis is shown below: ⚫ Full resolution ⚫ RAW 12-bit mode ⚫ Temperature: -10C Figure 6 shows the curves of the camera analysis data in Error! Reference source not found. Figure 6 e/ADU, Read Noise, Full Well and Dynamic Range for ATR2110C...
- Page 11 ATR2110C(ATR3CMOS02300KPA) User Manual The camera analysis data is shown in Error! Reference source not found.: Table 4 Camera Analysis Data Sensor Analysis Data Gain Value 1100 1600 2100 2600 3100 Rel Gain (dB) 0.00 2.73 4.83 5.71 7.29 e-/ADU 8.43 7.18...
- Page 12 Camera setting used for HDR performance analysis is shown below: ⚫ Full resolution ⚫ RAW 12-bit mode ⚫ Temperature: -10C Figure 6 shows the curves of the camera analysis data in Error! Reference source not found. Figure 7 e/ADU, Read Noise, Full Well and Dynamic Range for ATR2110C...
- Page 13 ATR2110C(ATR3CMOS02300KPA) User Manual The camera analysis data is shown in Error! Reference source not found.: Table 5 Camera Analysis Data Sensor Analysis Data Gain Value 1100 1600 2100 2600 3100 Rel Gain (dB) 0.00 2.73 4.83 5.71 7.29 e-/ADU Read Noise (e-) 1.38...
-
Page 14: Product Package And Connections
ATR2110C(ATR3CMOS02300KPA) User Manual 3 Product Package and Connections 3.1 Packing List Figure 8 Packing Information of ATR2110C Table 6 ATR2110C Packing List Standard Package Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box); carton size: L:28.2cm W:16.7cm H:25.5cm (TBD), not shown in the photo ATR series camera (M42x0.75 Mount+2”... -
Page 15: Camera Dimension And Its Mount
ATR2110C(ATR3CMOS02300KPA) User Manual 3.2 Camera Dimension and Its Mount Figure 9 Dimension and Mount of ATR2110C Table 7 Dimension and Mount of ATR2110C Item Specification 80mm Diameter Height 107.1mm Mount M42Fx0.75mm... -
Page 16: Camera Outline And Interface
3.4 Camera Mechanical Connection with Adapter ATR2110C can be connected to a telescope with proper adapter, or the camera lens. The most common adapters are already included in the package, but we also provide some specific adaptors based on the requirement. -
Page 17: Camera Mechanical Connection With Lens
ATR2110C(ATR3CMOS02300KPA) User Manual telescope’s eyepiece tube. Table list the details of the camera and adapter parameters. Figure 7 The Connection of the ATR Camera and Adapter Table 9 Camera and Its Adapter Connections Item Specification Back Focal Distance 17.50mm M42M-1.25” Adapter M48M-1.25”... -
Page 18: Camera Electric Connection With Accessories
3.6 Camera Electric Connection with Accessories On the back side of ATR2110C, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB. Due to the significantly larger power cunsumption of SC2110, ATR2110C (including the cooling system) is now booted up only by 12V/3A power supply. - Page 19 ATR2110C(ATR3CMOS02300KPA) User Manual Figure 9 Camera Electric Connection Table 5 Camera Electric Connection Details Item Specification USB3.0/USb2.0 Port To computer with USB3.0/USB2.0 cable To filter wheel with USB2.0 cable USB HUB for Accessories To guiding camera with USB 2.0 cable...
-
Page 20: Atr2110C And Its Software
ATR2110C(ATR3CMOS02300KPA) User Manual 4 ATR2110C and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https://touptek-astro.com/downloads/, to download the latest ToupSky. The ATR can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software. -
Page 21: Professional Camera Control Panel
ATR2110C(ATR3CMOS02300KPA) User Manual Figure 10 ToupSky and Its Video Window Figure 11 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually);... -
Page 22: Practical Functions With Good Results
PC Requirements USB port: USB3.0/USB2.0 port Display: 17” or larger CD-ROM 4.2 ATR2110C and Dshow DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: ⚫ x86: XP SP3 or above; CPU supports SSE2 instruction set or above... -
Page 23: Atr2110C And The 3 4.3.1 Support Software
ATR2110C(ATR3CMOS02300KPA) User Manual ⚫ x64: Win7 or above Supported Camera: ⚫ All ToupTek astronomy cameras 4.3 ATR2110C and the 3 Party Software 4.3.1 Support Software Software Version ASCOM Native PHD Guiding 2.3.0(2014) √ √ √ Nebulosity 3.2.2(2014) √ × ／... -
Page 24: Deepsky Stacker
ATR2110C(ATR3CMOS02300KPA) User Manual 4.3.14 DeepSky Stacker A free deep sky image stack and process software. -
Page 25: Service
ATR2110C(ATR3CMOS02300KPA) User Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://touptek-astro.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: astro@touptek.com.
