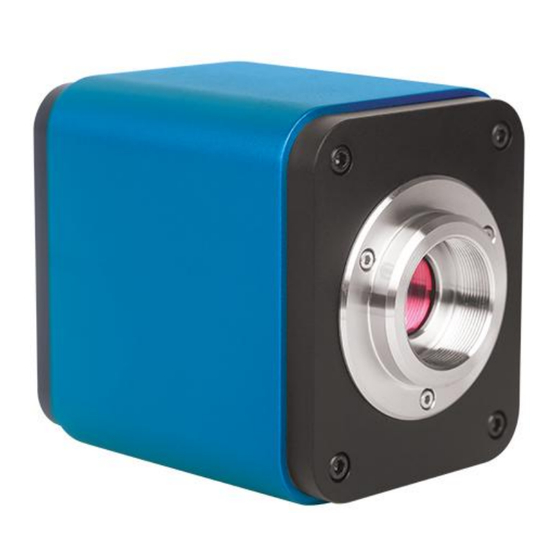

    XCAM1080PHX Series Camera Help Manual 1 The XCAM1080PHX’s Basic Characteristic C-mount CMOS camera with Sony high sensitivity sensor  HDMI+WiFi outputs at the same time  HDMI output can be controlled by XCamView through the USB mouse  WiFi output can be enabled with wireless network USB adapter , and can be controlled with ...
  • Page 4: Contents

    XCAM1080PHX Series Camera Help Manual JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (XAM1080PHB) Image Capture (XCAM1080PHD/PHE(Global Shutter for PHE)) JPEG Format with 2M Resolution in SD Card Video Record ASF Format 1080P 30fps in SD Card(8G) Camera Control Panel...
  • Page 5: Dimension Of Xcam1080Phx Series Camera

    XCAM1080PHX Series Camera Help Manual 4 Dimension of XCAM1080PHX Series Camera Figure 2 Dimension of XCAM1080PHX Series Camera 5 Package Information Standard PackingList Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box) XCAM1080PHXB or XCAM1080PHXD or XCAM1080PHXE camera Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A...
  • Page 6: Extension Of Xcam1080Phx With Microscope Or Telescope Adapter

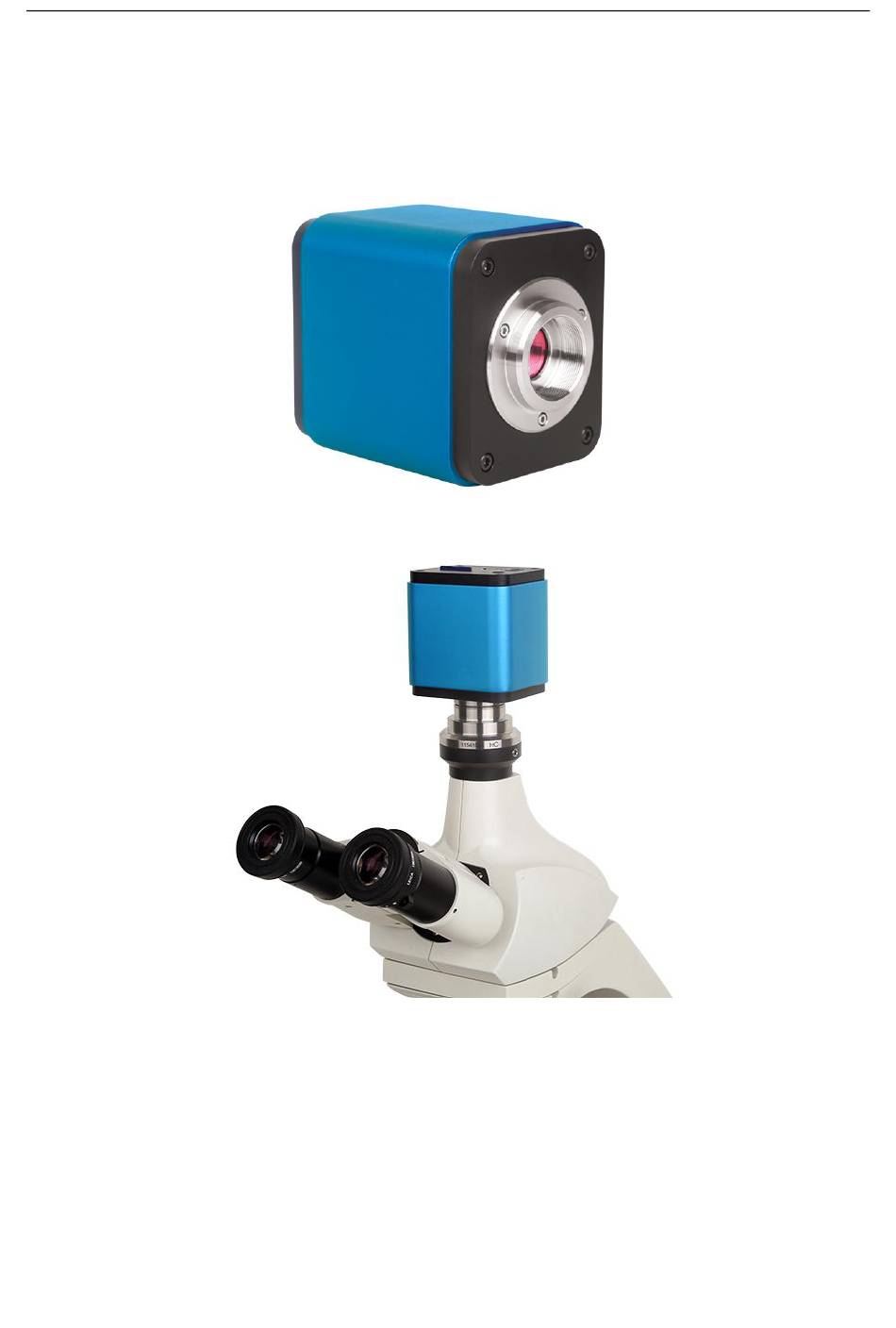

    XCAM1080PHX Series Camera Help Manual 108010/ATA075 108005/FMA037 C-Mount to Dia.23.2mm eyepiece tube 108006/FMA050 (Please choose 1 of them for your microscope) 108007/FMA075 Fixed lens adapter 108011/FTA037 C-Mount to Dia.31.75mm eyepiece tube 108012/FTA050 (Please choose 1 of them for your telescope)
  • Page 7: Camera Application Configurations

    XCAM1080PHX Series Camera Help Manual 8 Camera Application Configurations You can use the XCAM1080PHX series camera in 4 different ways. Each application requires different hardware environment. 8.1 Camera working standalone with built-in XCamView software For this application, apart from the camera and microscope, you only need an HDMI displayer, the supplied USB...
  • Page 8: Camera Working With Usb To Ethernet Adapter To Connect Pc

    XCAM1080PHX Series Camera Help Manual Figure 4 The PC or Mobile Device Connect to the Camera through WiFi 8.3 Camera working with USB to Ethernet adapter to connect PC. This application uses the camera as the network camera. User must configure the IP of the camera and PC manually and ensure their IP addresses are in the same net.
  • Page 9: Connecting Multi-Cameras To The Router Through The Usb To Ethernet Adapter For Network Application

    XCAM1080PHX Series Camera Help Manual Insert the USB Ethernet’s USB port to the camera’s USB port;  Connect the USB Ethernet network port with the network cable and PC’s network port;  Insert the supplied SD card into the camera SD card slot;...
  • Page 10 XCAM1080PHX Series Camera Help Manual Camera List tool window if you use the ToupView /ToupLite software; If you use the ToupView app, tap the camera’s thumbnail in the Camera List page. Note on data security The data transfer of the XCAM1080PHX camera in LAN or WiFi is not encrypted. Anyone who is connected to the...
  • Page 11: Brief Introduction Of Xcam1080Phx Ui And Its Functions

    XCAM1080PHX Series Camera Help Manual 9 Brief Introduction of XCAM1080PHX UI and Its Functions 9.1 XCamView UI XCAM1080PHX UI shown in Figure 10 includes a Camera Control Panel on the left of the video window, a Measurement Toolbar on the top of the video window and a...
  • Page 12: The Camera Control Panel On The Left Side Of The Video Window

    XCAM1080PHX Series Camera Help Manual 9.2 The camera control panel on the left side of the video window controls the camera to achieve the best video or image quality according to the specific Camera Control Panel applications; It will pop up automatically when the mouse cursor is moved to the left side of the video window (in measurement status, the will not pop up.
  • Page 13: The Measurement Toolbar On The Upper Side Of The Video Window

    XCAM1080PHX Series Camera Help Manual 9.3 The Measurement Toolbar on the upper side of the video window Measurement Toolbar will pop up when moving mouse cursor to any place near the upper edge of the video window. Here is the introduction of the various functions on the...
  • Page 14 XCAM1080PHX Series Camera Help Manual Export the measurement information to file(*.csv) Delete all the measurement objects Setting Exit from Measurement mode Object Location & Properties When the measurement ends, left-click on a single measuring object and the Control Bar will show up. Users could move the object by dragging the object with the mouse. But more accurate move could be done with the control bar.
  • Page 15: Icons And Functions Of The Synthesis Camera Control Toolbar At The Bottom Of The Video Window

    XCAM1080PHX Series Camera Help Manual 9.4 Icons and functions of the Synthesis Camera Control Toolbar at the bottom of the video window Icon Function Icon Function Zoom In Zoom Out the Video Window the Video Window Horizontal Flip Vertical Flip...
  • Page 16 XCAM1080PHX Series Camera Help Manual unicast multicast By default, function is used. Only in Sec 6.4 networking environment, when the router/switch has unicast/multicast function, camera can switch to multicast mode, which can save the network bandwidth consumed by the camera and facilitate the connection of more cameras in the same network;...
  • Page 17 XCAM1080PHX Series Camera Help Manual Names such as 10X, 40X, 100X are based on magnification of the microscopes. For continuous zoom microscopes, ensure Name that the selected magnification coincides with the scale alignment line on the microscope zoom knob; Users could also edit the name of the magnification with other information, for example, microscope mode, users name, etc.
  • Page 18 XCAM1080PHX Series Camera Help Manual FAT32: The file system of SD card is FAT32. The maximum video file size of single file in FAT32 file system is 4G Bytes; NTFS: The file system of SD card is NTFS. The maximum video file size of single file is 2T Bytes.
  • Page 19: Sample Photos Captured With Xcam1080Phx Series Camera

    XCAM1080PHX Series Camera Help Manual 10 Sample Photos Captured with XCAM1080PHX Series Camera 11 Contacting Customer Service 杭州图谱光电科技有限公司 浙江省杭州市西湖区金蓬街 321 号 2 号楼 A、B 座 4 楼 杭州, 310030, 浙江, 中国 Hangzhou ToupTek Photonics Co., Ltd 4F, Block A, B, Building 2, No.321, Jinpeng Street, Xihu District Hangzhou, 310030, Zhejiang, P.R.China...
