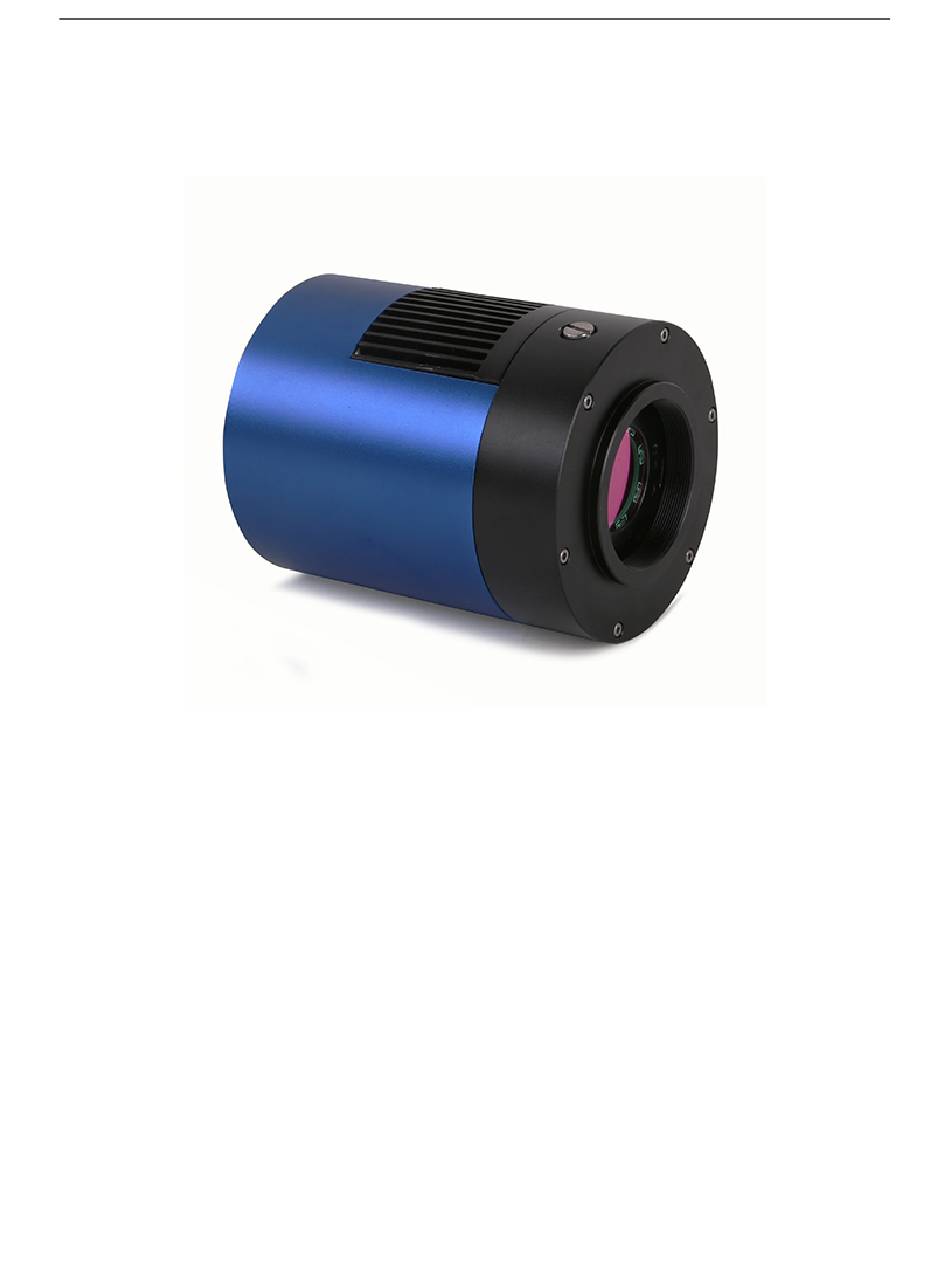

ATR3CMOS07100KMA Manual
ATR3CMOS07100KMA User Manual
Version 1.0
Aug 2023
All materials related to this publication are subject to change without notice and its copyright totally belongs to
ToupTek Photonics.
Please download the latest version from touptek-astro.com.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for TOUPTEK PHOTONICS ATR3CMOS07100KMA
Summary of Contents for TOUPTEK PHOTONICS ATR3CMOS07100KMA
- Page 1 ATR3CMOS07100KMA Manual ATR3CMOS07100KMA User Manual Version 1.0 Aug 2023 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek-astro.com.
- Page 2 ATR3CMOS07100KMA Manual Contents ATR3CMOS07100KMA User Manual ........................1 Description and Features ............................. 1 ATR3CMOS07100KMA Specifications and Performance ................1 Camera Specifications ............................. 1 Sony IMX428 Sensitivity ..........................2 12bit ADC and ROI ............................2 DDR3 Buffer ..............................2 Binning ................................3 Conversion Gain Switch ..........................
- Page 3 1 Description and Features The ATR3CMOS07100KMA camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used for planetary photo shooting.
- Page 4 ATR3CMOS07100KMA Manual 2 ATR3CMOS07100KMA Specifications and Performance 2.1 Camera Specifications Table 1 ATR3CMOS07100KMA Technique Specifications. Sensor Sony IMX428 back illuminated sensor Diagonal 17.5 mm Image Resolution 7.04 mega pixels(3200*2200) 4.5µm ´ 4.5µm Pixel Size 14.4mm ´ 9.9mm Image Area 12bit 8bit Max FPS at Resolution (USB 3.0) 25.7 FPS @ 3200*2200...
- Page 5 ATR3CMOS07100KMA Manual 2.2 Sony IMX428 Sensitivity The sensor G Sensitivity of ATR3CMOS07100KMA is 3354mv with 1/30s. Its spectral sensitivity is shown in Figure 1. Figure 1 IMX428 Spectral Sensitivity Characteristic 2.3 12bit ADC and ROI The ATR3CMOS07100KMA has built in 12bit ADC. It also has 12bit output mode for hardware binning and smaller resolution.
- Page 6 ATR3CMOS07100KMA Manual 2.5 Binning The ATR3CMOS07100KMA supports digital binning from 1´1 to 8´8 in either stacking or averaging method, and hardware binning from 1´1 to 2´2 in averaging method. Hardware pixel binning is much faster than software binning. 2.6 Conversion Gain Switch ATR3CMOS07100KMA support mode switch, the Gain ratio is 2.32.
- Page 7 ATR3CMOS07100KMA Manual Full resolution RAW 12-bit mode Temperature: -10°C Figure 2 shows the curves of the camera analysis data in Table 3...
- Page 8 ATR3CMOS07100KMA Manual Figure 2 e/ADU, Read Noise, Full Well and Dynamic Range for ATR3CMOS07100KMA...
- Page 9 ATR3CMOS07100KMA Manual The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1778 3162 5623 10000 17782 22600 4.95 9.84 14.89 19.84 24.8 29.65 34.66 39.55 43.8 46.3 Rel Gain (dB) 2.67 1.51 0.86 0.48...
- Page 10 ATR3CMOS07100KMA Manual 3 Product Package and Connections 3.1 Packing List Figure 3 Packing Information of ATR3CMOS07100KMA Table 4 ATR3CMOS07100KMA Packing List Standard Package Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box); carton size: L:28.2cm W:16.7cm H:25.5cm(TBD) ATR3CMOS series camera (M42x0.75 Mount+2”...
- Page 11 ATR3CMOS07100KMA Manual 3.2 Camera Dimension and Its Mount Figure 4 Dimension and Mount of ATR3CMOS07100KMA Table 5 Dimension and Mount of ATR3CMOS07100KMA Item Specification Æ80mm Diameter Height 100mm Mount M42Fx0.75mm 3.3 Camera Outline and Interface Figure 5 Camera Outline and Interface.
- Page 12 3.4 Camera Mechanical Connection with Adapter The ATR3CMOS07100KMA can be connected to a telescope with proper adapter, or the camera lens. The most common adapters are already included in the package, but we also provide some specific adaptors based on the requirement.
- Page 13 ATR3CMOS camera with M42Fx0.75 mount 3.6 Camera Electric Connection with Accessories On the back side of ATR3CMOS07100KMA, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB. The USB-HUB provides connection with other devices, which allows user to avoid the mess of cable management. Once...
- Page 14 ATR3CMOS07100KMA Manual Figure 8 Camera Electric Connection Table 9 Camera Electric Connection Details Item Specification USB3.0/USb2.0 Port To computer with USB3.0/USB2.0 cable To filter wheel with USB2.0 cable USB HUB for Accessories To guiding camera with USB 2.0 cable Power Port DC12V/3A...
- Page 15 ATR3CMOS07100KMA Manual 4 ATR3CMOS07100KMA and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https//touptek-astro.com/download/, to download the latest ToupSky. The ATR3CMOS can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software.
- Page 16 ATR3CMOS07100KMA Manual Figure 10 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually); Up to 5 times gain;...
- Page 17 DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: x86: XP SP3 or above; CPU supports SSE2 instruction set or above x64: Win7 or above Supported Camera: All ToupTek astronomy cameras 4.3 ATR3CMOS07100KMA and the 3 Party Software 4.3.1 Support Software Software Version ASCOM...
- Page 18 ATR3CMOS07100KMA Manual http://www.ascom-standards.org/index.htm You can download the ASCOM package from : http://ascom-standards.org/Downloads/Index.htm 4.3.3 PHD Guiding A popular free guide software: http://openphdguiding.org/ ToupTek’s telescope camera support Native/ASCOM/WDM driver to run the video. 4.3.4 Nebulosity A popular cooled camera control/image process software directly supported via ASCOM.
- Page 19 ATR3CMOS07100KMA Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://Touptek-astro.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: karas@Touptek-astro.com.
