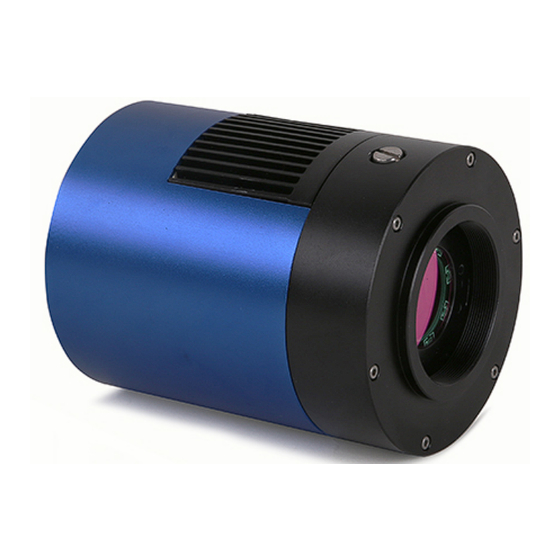

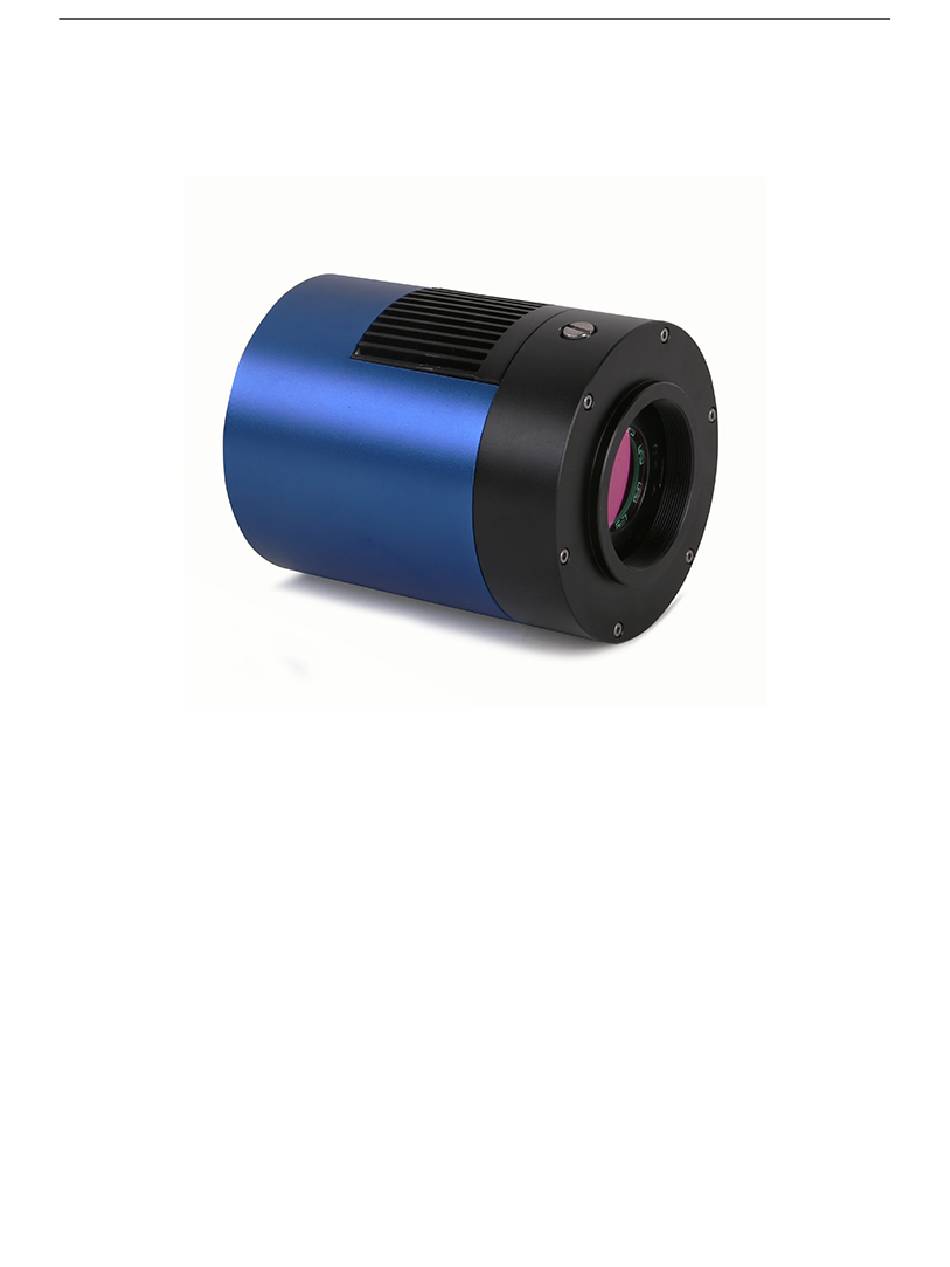

- Page 1 ATR3CMOS09000KMA Manual ATR3CMOS09000KMA User Manual Version 1.0 May 2022 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek-astro.com.
-
Page 2: Table Of Contents
ATR3CMOS09000KMA Manual Contents ATR3CMOS09000KMA User Manual ........................1 Description and Features ............................. 1 ATR3CMOS09000KMA Specifications and Performance ................1 Camera Specifications ............................. 1 Sony IMX533 Sensitivity ..........................2 14bit ADC and ROI ............................2 DDR3 Buffer ..............................2 Binning ................................2 Conversion Gain Switch .......................... -
Page 3: Description And Features
1 Description and Features The ATR3CMOS09000KMA camera is designed specifically for astrophotography. It is mainly used for deep sky photo shooting, since the camera has cooled CMOS sensor, ultra-low readout noise and zero amp-glow. It can be also used for planetary photo shooting. -
Page 4: Atr3Cmos09000Kma User Manual
ATR3CMOS09000KMA Manual 2 ATR3CMOS09000KMA Specifications and Performance 2.1 Camera Specifications Table 1 ATR3CMOS09000KMA Technique Specifications. Sensor Sony IMX533 back illuminated sensor Diagonal 15.968 mm Image Resolution 9.07 mega pixels(3008*3000) 3.76µm ´ 3.76µm Pixel Size 11.31mm ´ 11.28mm Image Area 14bit 8bit 20 FPS @ 3008*3000 40 FPS @ 3008*3000 Max FPS at Resolution (USB 3.0) -
Page 5: Sony Imx533 Sensitivity
2.3 14bit ADC and ROI The ATR3CMOS09000KMA has built in 14bit ADC. It also has 12bit output mode for hardware binning and smaller resolution. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is. -
Page 6: Conversion Gain Switch
Such efficient cooling system guarantees the stability of ultra-low noise mode and quality of the camera image. 2.8 Zero Amp-Glow ATR3CMOS09000KMA has been carefully designed and is able to achieve zero amp-glow photo shooting. Figure 3 and Figure 4 show the different cameras at 20°C and 5-minute exposure time with and without amp-glow. By comparison, the image captured by ATR3CMOS09000KMA shows zero amp-glow. -
Page 7: Dynamic Range
SNR and better quality of image. Low Noise Mode, which means users could get even It is more impressive that ATR3CMOS09000KMA comes with Low Noise Mode lower readout noise by selecting while the frame rate is reduced as sacrifice. Its significantly low read e-(Low Noise Mode). - Page 8 ATR3CMOS09000KMA Manual Figure 5 e/ADU, Read Noise, Full Well and Dynamic Range for ATR3CMOS09000KMA The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1584 2511 3981 6309 10000 15000 Rel Gain (dB) 3.96 7.98 11.99 15.98 24.03 28.02 32.07 36.09 40.16 43.37 e-/ADU 3.17 2.01...
-
Page 9: Product Package And Connections
ATR3CMOS09000KMA Manual 3 Product Package and Connections 3.1 Packing List Figure 6 Packing Information of ATR3CMOS09000KMA Table 4 ATR3CMOS09000KMA Packing List Standard Package Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo 3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 3.9Kg/ box); carton size: L:28.2cm W:16.7cm H:25.5cm(TBD) ATR3CMOS series camera (M42x0.75 Mount+2”... -
Page 10: Camera Dimension And Its Mount
ATR3CMOS09000KMA Manual 3.2 Camera Dimension and Its Mount Figure 7 Dimension and Mount of ATR3CMOS09000KMA Table 5 Dimension and Mount of ATR3CMOS09000KMA Item Specification Æ80mm Diameter Height 100mm Mount M42Fx0.75mm 3.3 Camera Outline and Interface Figure 8 Camera Outline and Interface. -
Page 11: Camera Mechanical Connection With Adapter
3.4 Camera Mechanical Connection with Adapter The ATR3CMOS09000KMA can be connected to a telescope with proper adapter, or the camera lens. The most common adapters are already included in the package, but we also provide some specific adaptors based on the requirement. -
Page 12: Camera Mechanical Connection With Lens
ATR3CMOS camera with M42Fx0.75 mount 3.6 Camera Electric Connection with Accessories On the back side of ATR3CMOS09000KMA, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB. The USB-HUB provides connection with other devices, which allows user to avoid the mess of cable management. Once... - Page 13 ATR3CMOS09000KMA Manual Figure 11 Camera Electric Connection Table 9 Camera Electric Connection Details Item Specification USB3.0/USb2.0 Port To computer with USB3.0/USB2.0 cable To filter wheel with USB2.0 cable USB HUB for Accessories To guiding camera with USB 2.0 cable Power Port DC12V/3A...
-
Page 14: Atr3Cmos09000Kma And Its Software
ATR3CMOS09000KMA Manual 4 ATR3CMOS09000KMA and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https//touptek-astro.com/download/, to download the latest ToupSky. The ATR3CMOS can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software. -
Page 15: Professional Camera Control Panel
ATR3CMOS09000KMA Manual Figure 13 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually); Up to 5 times gain;... -
Page 16: Powerful Compatibility
DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: x86: XP SP3 or above; CPU supports SSE2 instruction set or above x64: Win7 or above Supported Camera: All ToupTek astronomy cameras 4.3 ATR3CMOS09000KMA and the 3 Party Software 4.3.1 Support Software Software Version ASCOM... -
Page 17: Phd Guiding
ATR3CMOS09000KMA Manual http://www.ascom-standards.org/index.htm You can download the ASCOM package from : http://ascom-standards.org/Downloads/Index.htm 4.3.3 PHD Guiding A popular free guide software: http://openphdguiding.org/ ToupTek’s telescope camera support Native/ASCOM/WDM driver to run the video. 4.3.4 Nebulosity A popular cooled camera control/image process software directly supported via ASCOM. -
Page 18: Service
ATR3CMOS09000KMA Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://Touptek-astro.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: karas@Touptek-astro.com.
