3.6 Camera Electric Connection with Accessories
On the back side of ATR2110C, there are 3 connection ports: DC 12V/3A power port, USB3.0/ USB2.0 port and USB-HUB.
Due to the significantly larger power cunsumption of SC2110, ATR2110C (including the cooling system) is now booted up
only by 12V/3A power supply. USB3.0 no longer works as a power source but only as a data communication method. The
USB-HUB provides connection with other devices, which allows user to avoid the mess of cable management. Once another
device is connected through the USB-HUB, it will be connected to PC device through the USB3.0/USB2.0 port.

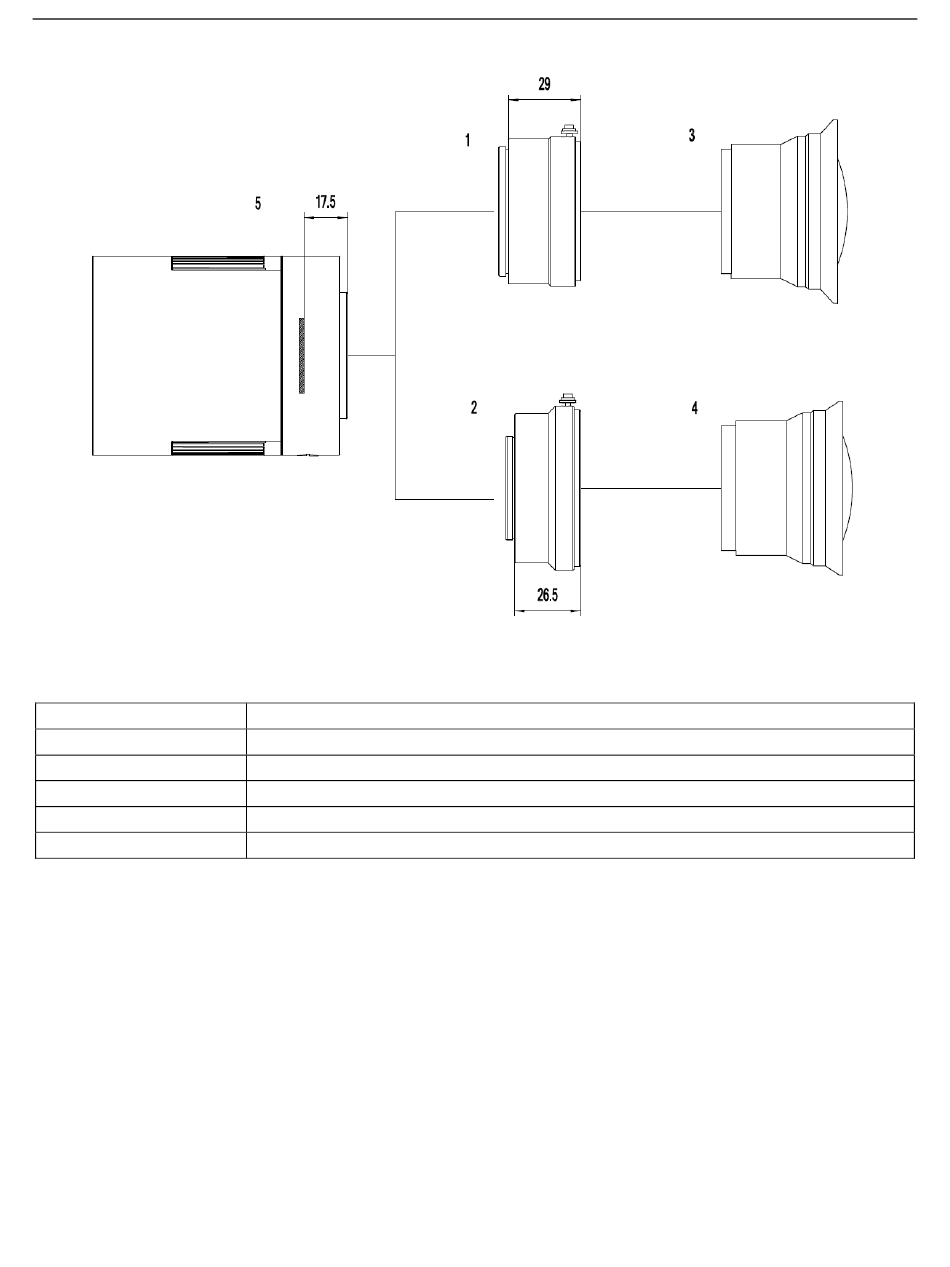

Figure 8 Nikon F/Canon EF Lens with ATR Camera
Table 10 Camera and Lens Connection
Nikon F-M42 adapter (TBD)
EOS EF-M42 adapter
Nikon F-mount lens
Canon EF-mount lens
ATR camera with M42Fx0.75 mount
