Summary of Contents for TOUPTEK PHOTONICS G3M715M

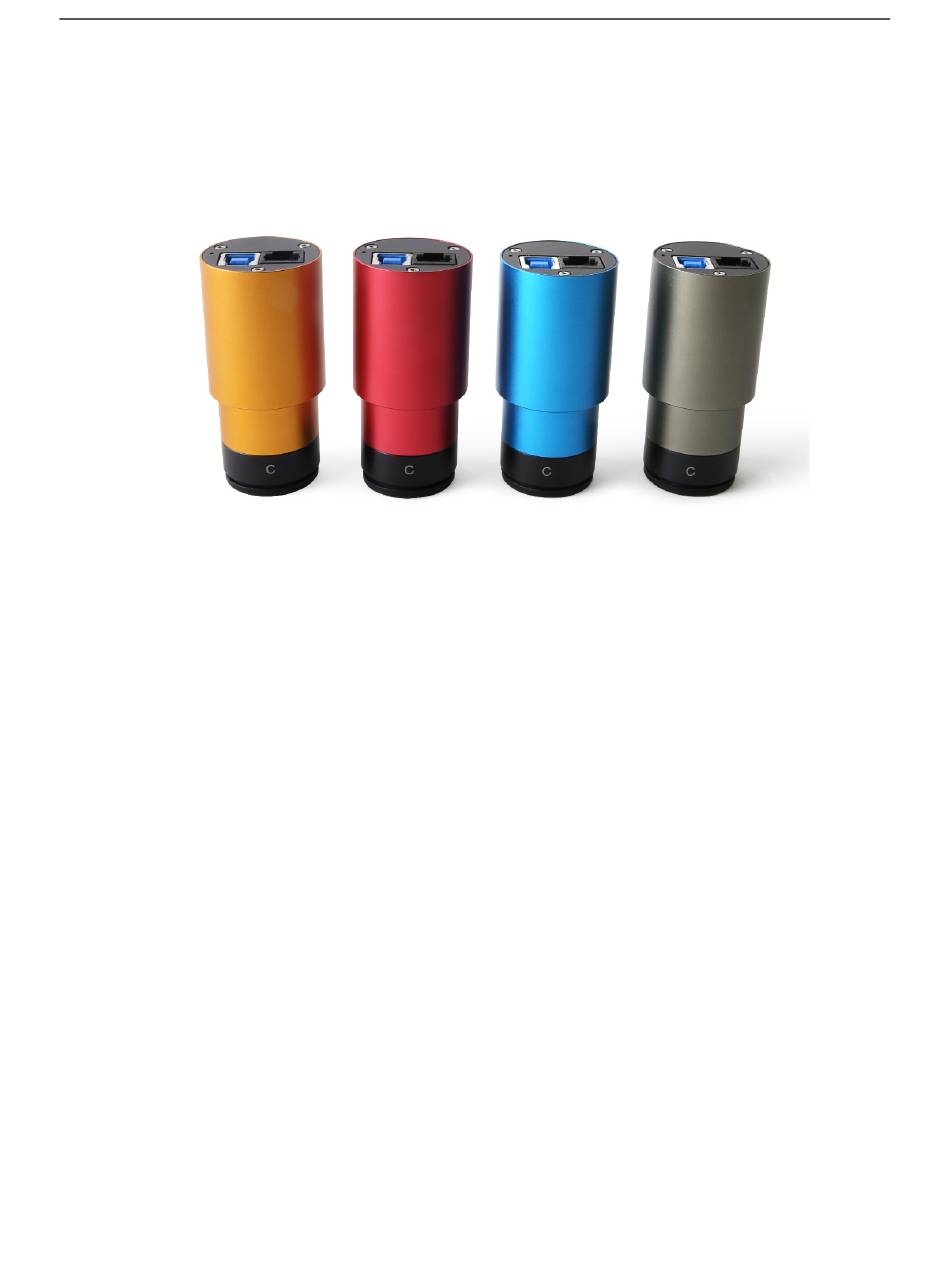

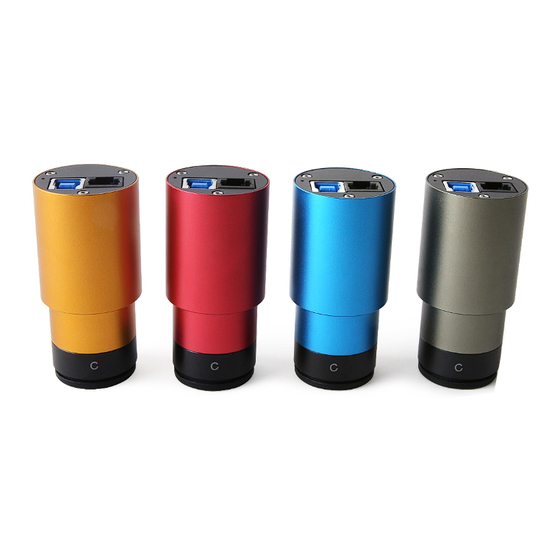

- Page 1 ATR3CMOS09000KPA Manual G3M715M User Manual Version 1.0 Sept 2023 All materials related to this publication are subject to change without notice and its copyright totally belongs to ToupTek Photonics. Please download the latest version from touptek.com.
-
Page 2: Table Of Contents
ATR3CMOS09000KPA Manual Contents G3M715M User Manual .............................. 1 Description and Features ............................. 1 G3M715M Specifications and Performance ....................... 1 Camera Specifications ............................. 1 Sony IMX715 Sensitivity ..........................1 12bit ADC and ROI ............................2 DDR3 Buffer ..............................2 Binning ................................2 Conversion Gain Switch .................... -
Page 3: Description And Features
1 Description and Features The G3M715M camera possesses an exceptionally strong capability to capture infrared light (with a high QE value at 850nm). It also has a large full well capacity, high dynamic range, high sensitivity, and low readout noise among other advantages. -
Page 4: G3M715M User Manual
2.2 Sony IMX715 Sensitivity The sensor G Sensitivity of G3M715M is 2375mv with 1/30s. Its spectral sensitivity is shown in Figure 1. The sensitivity is measured with a testing standard lens with CM500S(t = 1.0mm) as an IR-cut filter and image at F8.0. If the image is... -
Page 5: 12Bit Adc And Roi
2.3 12bit ADC and ROI The G3M715M has built in 12bit ADC. It also has 12bit output mode for hardware binning and smaller resolution. The camera also supports hardware ROI, and the smaller the ROI size is, the higher the frame rate is. -
Page 6: Camera Performance Analysis
ATR3CMOS09000KPA Manual 2.7 Camera Performance Analysis Camera performance can be evaluated with e-/ADU, Read Noise, Full Well Dynamic Range. e-/ADU: The sensors found in cameras used for vision applications have pixels that convert incoming photons into Analog- electrons. Gain on a CCD /CMOS camera represents the conversion factor from electrons (e-) into digital counts, or Digital Units (ADUs). - Page 7 ATR3CMOS09000KPA Manual Figure 2 e/ADU, Read Noise, Full Well and Dynamic Range for G3M715M The camera analysis data is shown in Table 3: Table 3 Camera Analysis Data Sensor Analysis Data Gain Value 1000 1778 3162 5623 10000 15000 Rel Gain (dB) 4.85 9.95 14.71 19.81 24.98 29.8 34.87 39.89 43.35 e-/ADU 1.44 0.83 0.46 0.27...
-
Page 8: Product Package And Connections
ATR3CMOS09000KPA Manual 3 Product Package and Connections 3.1 Packing List Figure 3 Packing Information of G3M715M Table 4 G3M715M Packing List Standard Camera Packing List Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton, 0.045m3), not shown in the photo Gift box L:15cm W:15cm H:10cm (0.8~1.0Kg/ box) One G3M series USB3.0 camera with 1.25” interface(outer) and C-Mount(inner) High-speed USB3.0 A male to B male gold-plated connectors cable /2.0m... -
Page 9: Camera Dimension And Its Mount
ATR3CMOS09000KPA Manual 3.2 Camera Dimension and Its Mount Figure 4 Dimension and Mount of G3M715M and 1.25’’ extender series body, made from tough, alloy, ensures a heavy duty, workhorse solution. The camera is designed with IR-CUT a high-quality to protect the camera sensor and block the IR elimination the reflection light. No moving parts included. -
Page 10: G3M715M And Its Software
ATR3CMOS09000KPA Manual 4 G3M715M and Its Software 4.1 Application Installation For software, customers are welcomed to go to our software website: https//touptek-astro.cn, to download the latest ToupSky. The G3M can also be used with ASCOM, DirectShow SDK. If the third-party software is compatible with these SDK, customers can also download the software driver from our website and install the drivers into the third-party software. -
Page 11: Professional Camera Control Panel
ATR3CMOS09000KPA Manual Figure 7 ToupSky and Its Browse Window 4.1.2 Professional Camera Control Panel Capture & Resolution Set the live and snap resolution and snap the image or record video; Exposure & Gain Auto exposure (exposure target preset) and manual exposure (exposure time can be inputted manually); Up to 5 times gain; Color Balance Advanced single-click intelligent white balance setting, temperature and tint can be manually adjusted;... -
Page 12: Powerful Compatibility
DshowAstro is an interface driver providing Dshow standard support for ToupTek USB astronomy camera Supported OS: Windows: x86: XP SP3 or above; CPU supports SSE2 instruction set or above x64: Win7 or above Supported Camera: All ToupTek astronomy cameras 4.3 G3M715M and the 3 Party Software 4.3.1 Support Software Software Version ASCOM... -
Page 13: Phd Guiding
ATR3CMOS09000KPA Manual http://www.ascom-standards.org/index.htm You can download the ASCOM package from : http://ascom-standards.org/Downloads/Index.htm 4.3.3 PHD Guiding A popular free guide software: http://openphdguiding.org/ ToupTek’s telescope camera support Native/ASCOM/WDM driver to run the video. 4.3.4 Nebulosity A popular cooled camera control/image process software directly supported via ASCOM. 4.3.5 MetaGuide Autoguiding software with novel method to avoid the atmospheric agitation. -
Page 14: Service
ATR3CMOS09000KPA Manual 5 Service For software upgrades, please refer to “Download” on our official website: https://ToupTek.com// For customers who purchase the cameras from local dealer, please contact your dealer for more inquiry. For technical support, please contact e-mail address: karas@ToupTek.com.
