Cypress Semiconductor CY7C1302DV25 Specification Sheet

Features
• Separate independent Read and Write data ports
— Supports concurrent transactions
• 167-MHz clock for high bandwidth
— 2.5 ns Clock-to-Valid access time
• 2-word burst on all accesses
• Double Data Rate (DDR) interfaces on both Read and
Write ports (data transferred at 333 MHz) @ 167 MHz
• Two input clocks (K and K) for precise DDR timing
— SRAM uses rising edges only
• Two input clocks for output data (C and C) to minimize
clock-skew and flight-time mismatches.
• Single multiplexed address input bus latches address
inputs for both Read and Write ports
• Separate Port Selects for depth expansion
• Synchronous internally self-timed writes
• 2.5V core power supply with HSTL Inputs and Outputs
• Available in 165-ball FBGA package (13 x 15 x 1.4 mm)
• Variable drive HSTL output buffers
• Expanded HSTL output voltage (1.4V–1.9V)
• JTAG Interface
Configurations
CY7C1302DV25 – 512K x 18

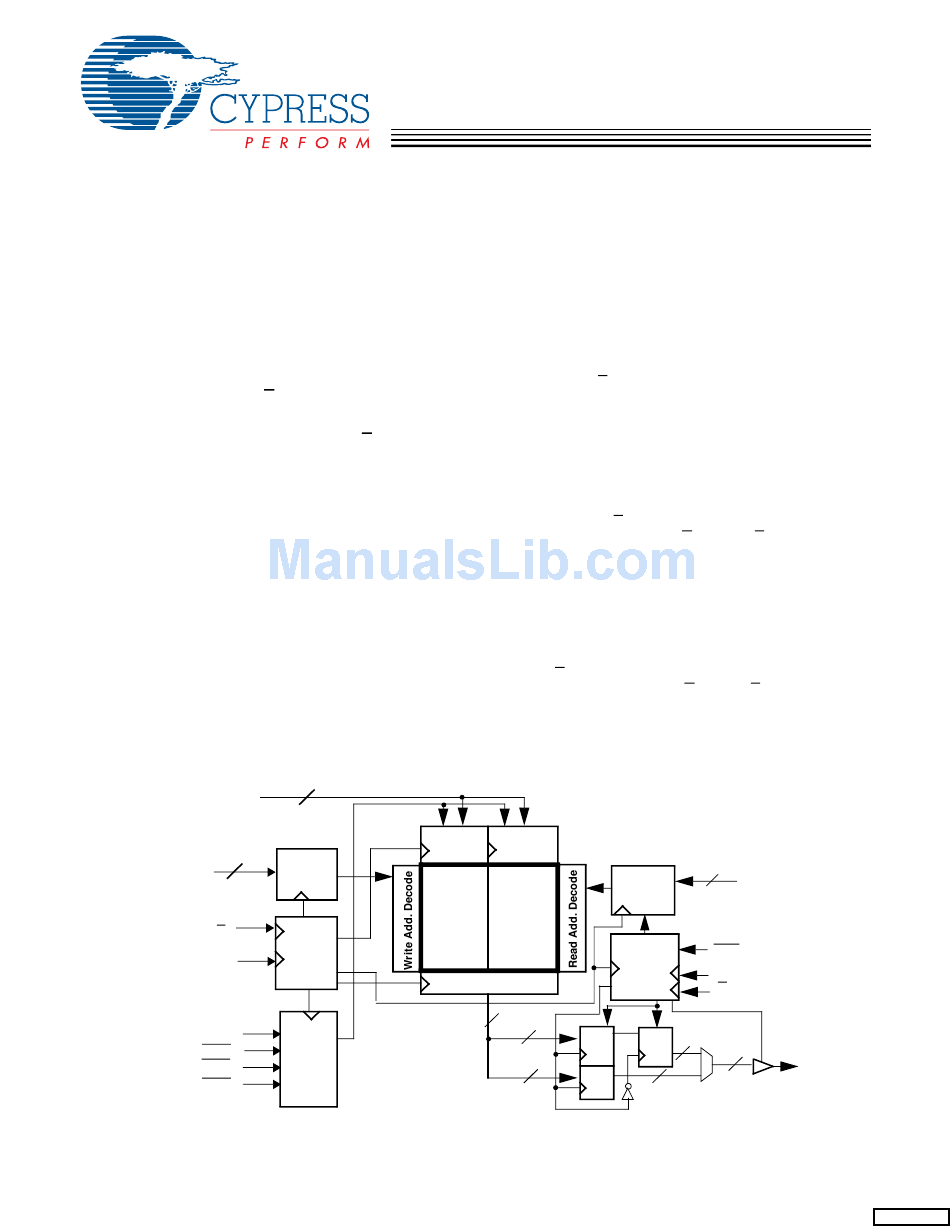

Logic Block Diagram (
D
[17:0]
A
(17:0)
18
K
K
Vref
WPS
BWS
0
BWS
1
Cypress Semiconductor Corporation
Document #: 38-05625 Rev. *A
9-Mbit Burst of Two Pipelined SRAMs
)
CY7C1302DV25
18
Write
Data Reg
Address
Register
256Kx18
Memory
Array
CLK
Gen.
Read Data Reg.
Control
Logic
• 198 Champion Court
with QDR™ Architecture
Functional Description
The CY7C1302DV25 is a 2.5V Synchronous Pipelined SRAM
equipped with QDR™ architecture. QDR architecture consists
of two separate ports to access the memory array. The Read
port has dedicated data outputs to support Read operations
and the Write Port has dedicated data inputs to support Write
operations. Access to each port is accomplished through a
common address bus. The Read address is latched on the
rising edge of the K clock and the Write address is latched on
the rising edge of K clock. QDR has separate data inputs and
data outputs to completely eliminate the need to "turn-around"
the data bus required with common I/O devices. Accesses to
the CY7C1302DV25 Read and Write ports are completely
independent of one another. All accesses are initiated
synchronously on the rising edge of the positive input clock
(K). In order to maximize data throughput, both Read and
Write ports are equipped with DDR interfaces. Therefore, data
can be transferred into the device on every rising edge of both
input clocks (K and K) and out of the device on every rising
edge of the output clock (C and C, or K and K in a single clock
domain) thereby maximizing performance while simplifying
system design. Each address location is associated with two
18-bit words that burst sequentially into or out of the device.
Depth expansion is accomplished with a Port Select input for
each port. Each Port Select allows each port to operate
independently.
All synchronous inputs pass through input registers controlled
by the K or K input clocks. All data outputs pass through output
registers controlled by the C or C (or K or K in a single clock
domain) input clocks. Writes are conducted with on-chip
synchronous self-timed write circuitry.
Write
Data Reg
Address
Register
256Kx18
Memory
Array
Control
Logic
36
18
Reg.
Reg.
18
Reg.
18
,
• San Jose CA 95134-1709
CY7C1302DV25
A
(17:0)
18
RPS
C
C
18
18
Q
[17:0]
• 408-943-2600
Revised March 23, 2006
