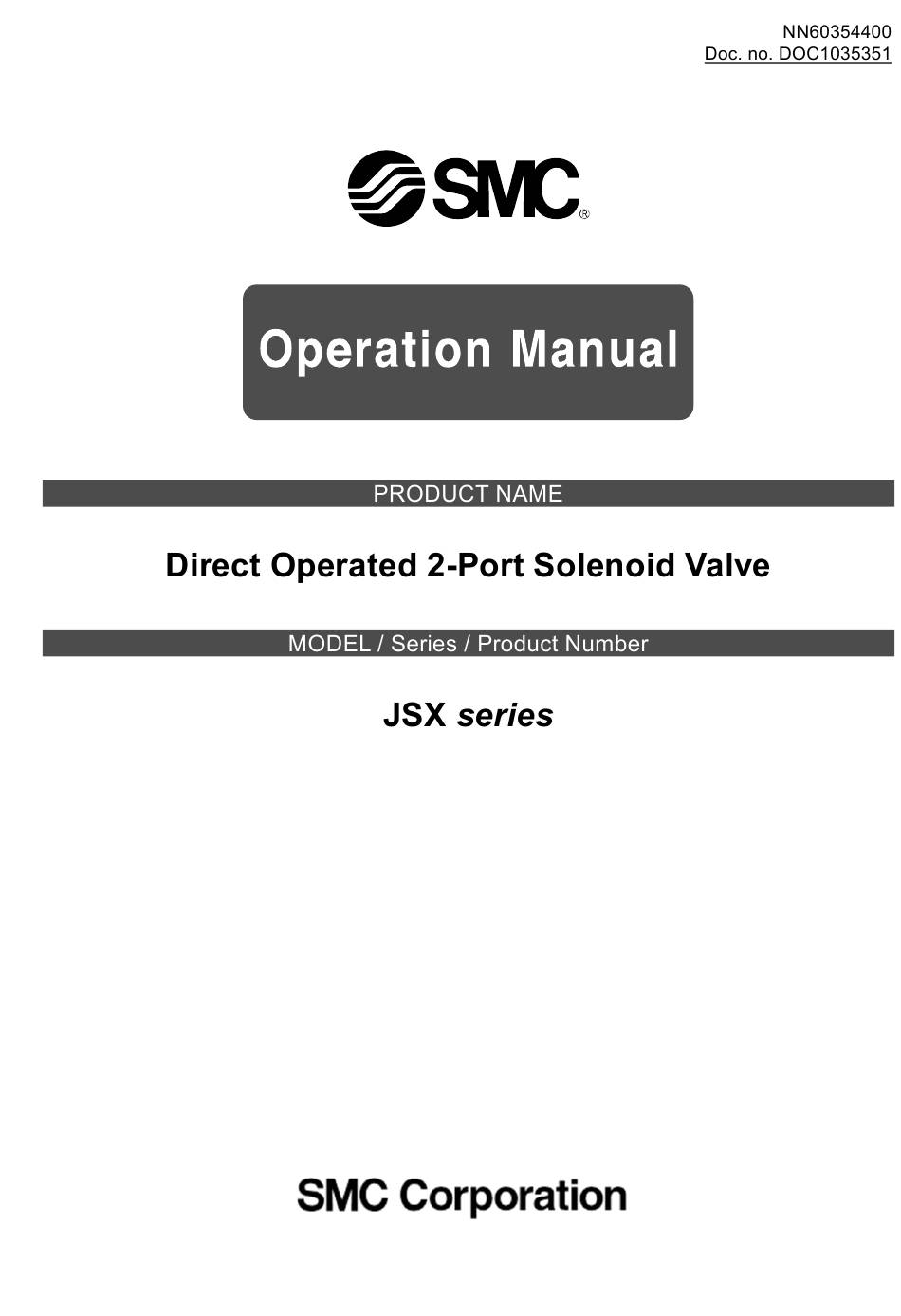

SMC Networks JSX Series Operation Manual

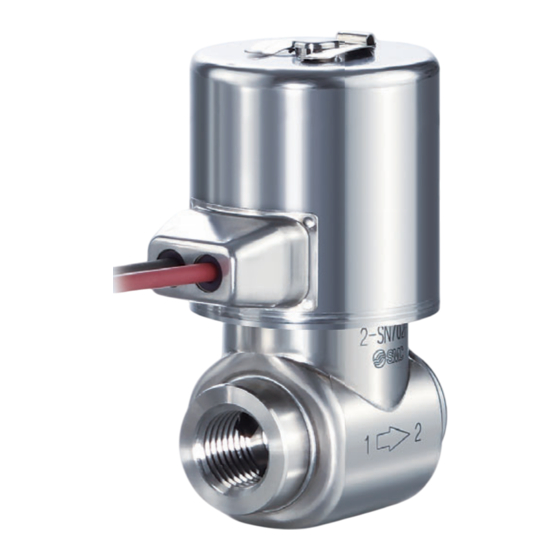

Direct operated 2-port solenoid valve
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JSX Series and is the answer not in the manual?

Questions and answers

Related Manuals for SMC Networks JSX Series

Summary of Contents for SMC Networks JSX Series

  • Page 2: Table Of Contents

    Contents Contents・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P1,2 Safety Instructions・・・・・・・・・・・・・・・・・・・・・・・・・ P3,4 Precautions for Design・・・・・・・・・・・・・・・・・・・・・・・ P5,6 Operating Environment・・・・・・・・・・・・・・・・・・・・・・・P6,7 Precautions for Fluid・・・・・・・・・・・・・・・・・・・・・・・・ P7 Fluid Quality・・・・・・・・・・・・・・・・・・・・・・・・・・・ P7,8 Installation・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P8,9 How to Assemble Brackets・・・・・・・・・・・・・・・・・・・・・ P9 Piping・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P10,11 Wiring・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ P11 Electrical connections・・・・・・・・・・・・・・・・・・・・・・・ P12～14 10. Electrical circuits・・・・・・・・・・・・・・・・・・・・・・・・・ P14,15 11. Maintenance・・・・・・・・・・・・・・・・・・・・・・・・・・・ P15,16 12.
  • Page 3 25. Construction (High Flow/ Power Saving Type Stainless Steel/Brass)・・・ P25 26. Models (High Flow/ Power Saving Type Aluminum)・・・・・・・・・・ P26 27. Specifications (High Flow/ Power Saving Type Aluminum)・・・・・・・ P27 28. Construction (High Flow/ Power Saving Type Aluminum)・・・ ・・・・ P27 29. Models (Vacuum Type)・・・・・・・・・・・・・・・・・・・・・・ P28 30.

  • Page 4: Safety Instructions・・・・・・・・・・・・・・・・・・・・・・・・・ P3,4

    Safety Instructions These safety instructions are intended to prevent hazardous situations and/or equipment damage. These instructions indicate the level of potential hazard with the labels of “Caution,” “Warning” or “Danger.” They are all important notes for safety and must be followed in addition to International Standards (ISO/IEC) , and other safety regulations.
  • Page 5 Safety Instructions Caution We develop, design, and manufacture our products to be used for automatic control equipment, and provide them for peaceful use in manufacturing industries. Use in non-manufacturing industries is not covered. Products we manufacture and sell cannot be used for the purpose of transactions or certification specified in the Measurement Act.

  • Page 6: Precautions For Design・・・・・・・・・・・・・・・・・・・・・・・ P5,6

    1. Precautions for Design Warning 1. Confirm the specifications. Give careful consideration to the operating conditions, such as the application, fluid, and environment, and use within the specified operating ranges. If the product is used beyond the specification range, this may cause the product to break or malfunction. SMC does not guarantee against any damage if the product is used outside of the specification range.

  • Page 7: Operating Environment・・・・・・・・・・・・・・・・・・・・・・・P6,7

    Caution 1. Power saving circuit The power saving circuit (PWM control) built into the product reduces power consumption via high- speed switching operation with the PWM control circuit after the rated voltage has been applied for approx. 200 ms when energized. Please note that the effect of this PWM control can cause the following problems depending on the type of switch and drive circuit used.

  • Page 8: Precautions For Fluid・・・・・・・・・・・・・・・・・・・・・・・・ P7

    3) Be sure to confirm that the location is not one in which condensation is easily generated. * If the product is used in an environment with large temperature fluctuations, etc., condensation may be generated, and water may adhere to the external surface of the product. Be sure to implement protective measures against condensation, such as ambient temperature control, in such locations where condensation is easily generated.
  • Page 9 - 8 -...

  • Page 10: How To Assemble Brackets・・・・・・・・・・・・・・・・・・・・・ P9

    When the product is installed, apply a wrench to the outside of the piping connection while paying attention that it will not come into contact with the coil. 5. Do not warm the coil section with a heat insulator, etc. When insulation is used as a countermeasure against freezing, the insulation should be limited to the piping and body only.
  • Page 11 4. Screw tightening torque for piping Connection thread 7～9 12～14 22～24 ̀ ̀ ̀ ̀ ̀ ̀ - 10 -...
  • Page 12 5. When a surge from the solenoid affects the electrical circuitry, install a surge voltage suppressor, etc., in parallel with the solenoid. Or, use the product with a surge voltage suppressor. Residual voltage of the surge voltage suppressor DC specification: Approx. 60 V AC specification: Approx.

  • Page 13: Electrical Connections・・・・・・・・・・・・・・・・・・・・・・・ P12～14

    9. Electrical Connections Caution 1. Grommet Lead wire: AWG20 Insulator O.D.: 2.6 mm Lead wire color Rated voltage ① ② Black DC(High flow/ power saving type ) Black(-) Red(+) 100VAC Blue Blue 200VAC Other AC Gray Gray * Only the high flow/ power saving type has polarity 2.
  • Page 14 3. Insert the gasket between the bottom part of the terminal block and the plug attached to the equipment, and then insert the binding head screw with flange from the top of the housing, and tighten it. *1 Tighten the screw to a torque of 0.5 N・m. *2 The orientation of the connector can be changed in steps of 90°...

  • Page 15: Electrical Circuits・・・・・・・・・・・・・・・・・・・・・・・・・ P14,15

    DIN (EN 175301-803) Terminal This DIN terminal corresponds to This DIN terminal corresponds to the Form A DIN connector with the Form C DIN connector with an 18 mm terminal pitch. an 8 mm terminal pitch. Size: 20, 30 Size: 10 Applicable cable O.D.: ø3.5 to ø7 Applicable cable O.D.: ø6 to ø12 4.
  • Page 16 ● ● ● ● ∗ Be sure to confirm the polarity when connecting. 1. Removal of product 1) Shut off the fluid supply and release the fluid pressure in the system. 2) Shut off the power supply. 3) Confirm that the valve temperature has dropped sufficiently before removing the product. 2.

  • Page 17: Return Of Product・・・・・・・・・・・・・・・・・・・・・・・・・ P16

    5. Storage In the case of long-term storage after use, thoroughly remove all moisture and store it in a location where the product is not exposed to sunlight and higher humidity to prevent rust and deterioration of rubber materials, etc. 6.
  • Page 18 ） Flow Rate Characteristics Applicable Fluid Checklist - 17 -...
  • Page 19 Common Specifications - 18 -...
  • Page 20 ） - 19 -...
  • Page 21 ） *1 Leakage: The value at a differential pressure of 0.01 MPa or higher and an ambient temperature of 20°C *2 This product has an IP65,67 enclosure, but if water enters the product, it may result in malfunction or breakage. Therefore, take appropriate measures to prevent water from entering the product when using in an environment where it is constantly exposed to water.
  • Page 22 - 21 -...

  • Page 23: Construction (Normally Open Type)・・・・ ・・・・・・・・・・・・・ P22

    21. Common Specifications (Normally Open type) *1 Leakage: The value at a differential pressure of 0.01 MPa or higher and an ambient temperature of 20°C *2 This product has an IP65,67 enclosure, but if water enters the product, it may result in malfunction or breakage.
  • Page 24 - 23 -...
  • Page 25 ∗ ∗ ∗ ∗ ∗ Power Saving Specification ∗ - 24 -...
  • Page 26 - 25 -...
  • Page 27 - 26 -...
  • Page 28 ∗ ∗ ∗ ∗ ∗ ∗ - 27 -...
  • Page 29 Flow Rate Characteristics - 28 -...
  • Page 30 Ȃ - 29 -...
  • Page 31 Flow Rate Characteristics - 30 -...
  • Page 32 - 31 -...
  • Page 33 35. Models (Steam Type) How to order Flow Rate Characteristics - 32 -...
  • Page 34 - 33 -...
  • Page 35 ○： 、×： 、 ： Rated voltage Electrical entry 120VAC 100VAC 200VAC 220VAC 240VAC 48VAC 24VAC 230VAC 24VDC 12VDC (110VAC) ○ ○ Grommet Grommet with PCB ○ × × × × ○ ○ × ○ ○ (With surge voltage suppressor) Conduit ○...
  • Page 36 - 35 -...
  • Page 37 40. Definition and Terminology Max.operating The max. pressure differential (the difference between the inlet and pressure outlet pressure) which is allowed for operation. When the outlet differential pressure is 0 MPa, this becomes the max. operating pressure. The max. pressure that can be applied inside the pipelines (line Max.
  • Page 38 41. Replacement Parts The solenoid coil assembly is shipped with a name plate with the valve part number printed on it. In addition, the name plate has the marks of all applicable standards printed on it. For the solenoid coil assembly, eligibility for CE/UKCA marking and UL/CSA standard certification varies depending on the electrical entry type and the rated voltage.
  • Page 39 ４３．Trouble Check Sheet（Target series ：ＪＳＸ） Operating conditions Deliver date MM/DD, YYYY Operating period months Accumulated Approx. cycles operating cycles Warranty period: Within 1.5 years after the product is delivered or 1 year in service. Refer to and use this trouble check sheet as a cause diagnosis check sheet when a trouble has occurred to solve it early. Phenomenon Possible cause Condition check...
  • Page 40 Phenomenon Possible cause Condition check Countermeasures There is a possibility that the power supply, control circuit, or wiring system is abnormal. Is the voltage exceeding the products allowable (1) Check if the control system is working correctly. □ → Leakage voltage leakage voltage specification applied when the (2) Keep the leakage voltage from the control system at the allowable value or below.
  • Page 41 Phenomenon Possible cause Condition check Countermeasures The rubber seal part may have shrunk, deteriorated and broken, or swollen due to the nature of the fluid, which possibly led to the reduction in the valve sealing. Is the solenoid valve part material compatible with (1) Check the compatibility between the product components and the fluid.
  • Page 42 Revision history Tel: + 81 3 5207 8249 Fax: +81 3 5298 5362 https://www.smcworld.com Note: Specifications are subject to change without prior notice and any obligation on the part of the manufacturer. © SMC Corporation All Rights Reserved...
