Technical Support and E-Warranty Certificate
www.vevor.com/support

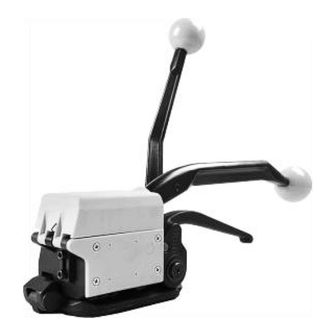

Manual Strapping Tool
MODEL: A333
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Table of Contents
Related Manuals for VEVOR A333
Summary of Contents for VEVOR A333
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support Manual Strapping Tool MODEL: A333 We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: Safety Instructions
INSTRUCTIONS Thank you very much for choosing this Manual Strapping Tool - Please read all of the instructions before using it.The information will help you achieve the best possible results. The products carried in this catalog may be different in color than the actual item. - Page 4 Protective gloves When handling strap, always wear protective gloves. Strap warnings Never use strap as a means of pulling or lifting loads. Failure to follow these warnings can result in severe personal injury. Strap breakage hazard Improper operation of the tool, excessive tensioning, using strap not recommended for this tool or sharp corners on the load can result in a sudden loss of strap tension or strap breakage during tensioning,which could result...
-
Page 5: Technical Data
Steel strapping Width 12.7-19mm (0.5 - 0.75inch) Thickness 0.38-0.7mm（0.015 -0.027inch) Fundamentally the A333 allows the use of all current steel straps with tensile strengths ranging from 700 Quality to 850N/mm2/100000-123000 psi. Straps with a low breaking elongation are unsuitable. - 4 -... -
Page 6: Operation
3. OPERATION When using the machine, it's indispensable to wear protective gloves and safety glasses. Feeding the strapping around the package The strapping is fed around the package in the direction shown in the illustration. The strapping end is held tightly with the left hand and pulled firmly towards the operator with the right hand. -
Page 7: Seal Control
Sealing the strapping The sealing lever is moved forward using the left hand until it hits the stop. The lever is then moved back to its initial position. When sealing, the right hand absorbs the sealing force by holding the tensioning handle. Releasing the tool Hold the cut-off strap end with the left hand, lift the rocker with the right hand and push the... - Page 8 must be taken away from the package.The tool must be readjusted immediately(see SEALADJUSTMENT). Incorrect seal (the sealing mechanism is adjusted too low) This stamped seal is too deep and the lower strap is scratched by the cutter.Although the tensile strength of this seal is sufficient the strapping must be taken away from the package because of the scratched lower strap.The tool must be readjusted immediately (see SEALADJUSTMENT).
- Page 9 After every disassembly it is essential to retighten screws A57 and A58 with the recommended torque when reassembling.The use of a torque key is necessary. 6. CLEANING In case of heavy dirt and when painted straps are used the punch,dies,gripper and feed-wheel must be cleaned regularly.Normally it is sufficient to blow out the parts with the help of an air gun.
- Page 10 Suspension It is possible to suspend the tool for strapping in vertical position.Order the suitable suspension separately under item no.A85. MAINTENANCE 1. Avoid prolonged exposure to the sun to avoid aging. - 9 -...
- Page 11 Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730 SHUNSHUN GmbH Römeräcker 9 Z2021, 76351 Linkenheim-Hochstetten, Germany Pooledas Group Ltd Unit 5 Albert Edward House, The...
- Page 12 Technical Support and E-Warranty Certificate www.vevor.com/support...
