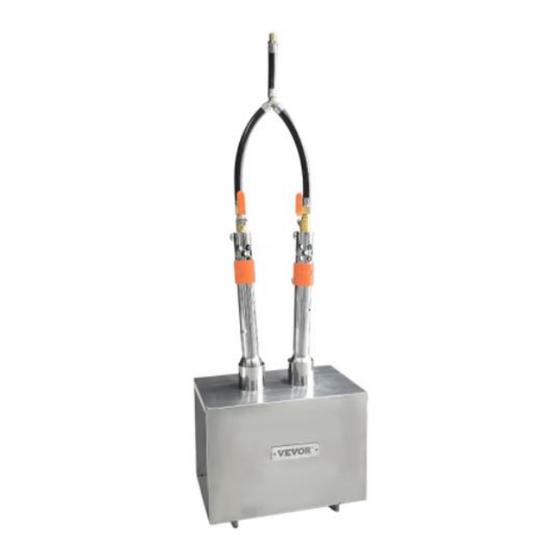

Propane forge
Hide thumbs
Table of Contents

Advertisement

Available languages
  • EN

Available languages

  • ENGLISH, page 86

Quick Links

Download this manual
Technical Support and E-Warranty Certificate www.vevor.com/support
PROPANE FORGE
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JHBXG2A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VEVOR JHBXG2A

Summary of Contents for VEVOR JHBXG2A

  • Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support PROPANE FORGE We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 3 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS WARNING: 1. This product is intended for outside use (Use of this equipment without proper ventilation could result in asphyxiation). 2. Read these instructions carefully before assembling the hose and regulator units. 3. Wear protective gloves, protective glasses and heat-proof clothing when using the furnace to avoid burns.
  • Page 5 13. The unit will heat large objects to forging temperature with the door open, but it will take a little longer. 14. Never leave the line pressure on when not in use. Always cut the ball valve and tank valve off for storage. 15.

  • Page 6: Structure Diagram

    MODEL AND PARAMETERS JHBXG2A / JHBXG2B / JHBXG2C / Model JHBXG2D / JHBXG2E Fuel Propane Working pressure 14.5～29PSI(0.1～0.2MPa) Maximum Temperature 2600°F ±3% (1427℃±3%） Shape Rectangle Number of burners Number of doors Material Stainless steel STRUCTURE DIAGRAM - 4 -...
  • Page 7 NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTE: 1. It is not necessary to force these fittings to the extreme, however, it is important to use the proper wrench size when tightening the parts.

  • Page 8: Parts List

    PARTS LIST Forge Body Air Chock Gas Pressure Regulator Gas Hose Pipe Burner Refractory Bricks (230*115*20mm) x1 User Manual OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ② Insert the burner into each opening at the top of the forging. ③...
  • Page 9 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. WARNING Please note that the closing and opening operations are performed in the - 7 -...

  • Page 10: Maintenance

    following order: Opening steps: First, open the ball valve of the gas container, then open the ball valve of the burner(s). Closing steps: First, close the ball valve of the burner(s), then close the ball valve of the gas container. (Please follow the above operation in order.
  • Page 11 EC REP: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main. UK REP: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Imported to USA: Sanven Technology Ltd.
  • Page 13 Technical Support and E-Warranty Certificate www.vevor.com/support...
  • Page 14 Supporto tecnico e certificato di garanzia elettronica www.vevor.com/support FORGIA DI PROPANO We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 16 PROPANE FORGE JHBXG 2A JHBXG 2B/ JHBXG 2C/ JHBXG 2D/ MODELLO: JHBXG 2E NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...

  • Page 17: Safety Instructions

    This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 18 porte aperte devono essere completamente chiuse. Ciò potrebbe causare gravi danni e possibili lesioni personali. 31. Evitare di sostare o di spostarsi davanti alle aperture e alle porte di scarico. Temperature estremamente elevate si estendono per circa mezzo metro da qualsiasi apertura durante il funzionamento. Quando si recuperano oggetti da una fucina a caldo, avvicinarsi lateralmente o dal basso.

  • Page 19: Structure Diagram

    posizionare la fucina vicino a un muro o a materiale infiammabile. Lasciare che la fucina si raffreddi completamente prima di maneggiarla. 40. Sono necessari dispositivi di protezione personale quando si maneggiano il rigido, il materiale refrattario alla satanite e la coperta isolante durante l'installazione.
  • Page 20 NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTA: 3. Non è necessario forzare questi raccordi all'estremo, tuttavia è importante utilizzare la chiave della dimensione corretta quando si serrano le parti.

  • Page 21: Parts List

    PARTS LIST Forgiare il corpo Blocco d'aria Pressione del gas X2​ Regolatore x1​ Tubo flessibile del gas Bruciatore Mattoni refrattari X2​ (230*115 * 20mm) x1 Manuale d' uso OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ②...
  • Page 22 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. AVVERTIMENTO Si prega di notare che le operazioni di chiusura e apertura vengono - 7 -...

  • Page 23: Maintenance

    eseguite nel seguente ordine : Fasi di apertura: aprire innanzitutto la valvola a sfera della bombola del gas, quindi aprire la valvola a sfera del/dei bruciatore/i. Fasi di chiusura: chiudere innanzitutto la valvola a sfera del bruciatore/i, quindi chiudere la valvola a sfera della bombola del gas. (Seguire le operazioni di cui sopra in ordine.
  • Page 24 Indirizzo: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. RAPPRESENTANTE CE: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Francoforte sul Meno. REP. DEL REGNO UNITO: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Importato in Australia: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Importato negli Stati Uniti: Sanven Technology Ltd.
  • Page 26 Tecnico Supporto e certificato di garanzia elettronica www.vevor.com/support...
  • Page 27 Wsparcie techniczne i certyfikat e-gwarancji www.vevor.com/support KUŹNIA PROPANU We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 29 PROPANE FORGE JHBXG 2A JHBXG 2B / JHBXG 2C / JHBXG 2D / JHBXG MODEL: NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...

  • Page 30: Safety Instructions

    This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 31 Może to spowodować poważne uszkodzenia i możliwe obrażenia ciała. 51. Unikaj stania lub przemieszczania się przed otworami i otworami wylotowymi. Podczas pracy wyjątkowo wysokie temperatury sięgają około dwóch stóp od wszelkich otworów. Podczas wydobywania przedmiotów z gorącej kuźni podchodź do niej z boku lub od dołu. Trochę praktyki pomoże ci zdobyć...

  • Page 32: Structure Diagram

    ogniotrwałym szatanitem i kocem izolacyjnym podczas instalacji wymagany jest sprzęt ochrony osobistej. MODEL AND PARAMETERS JHBXG 2 A / JHBXG 2B / JHBXG 2C / Model JHBXG 2D / JHBXG 2E Paliwo Propan Ciśnienie robocze 14,5 ~ 29PSI (0,1 ~ 0,2 MPa) Maksymalna temperatura 2600°F ±3% (1427℃±3%）...
  • Page 33 NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTATKA: 5. Nie ma potrzeby dokręcania tych złączek na siłę, jednak ważne jest, aby podczas dokręcania części używać...

  • Page 34: Parts List

    PARTS LIST Wykuj ciało Klin powietrzny Ciśnienie gazu Regulator X2​ Rura węża gazowego Palnik Cegły ogniotrwałe X2​ (230*11 5 *20mm) x1 Instrukcja obsługi​ OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ② Insert the burner into each opening at the top of the forging.
  • Page 35 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. OSTRZEŻENIE Należy pamiętać, że operacje zamykania i otwierania wykonywane są w - 7 -...

  • Page 36: Maintenance

    następującej kolejności : Etapy otwierania: Najpierw otwórz zawór kulowy zbiornika gazu, a następnie otwórz zawór kulowy palnika(ów). Etapy zamykania: Najpierw zamknij zawór kulowy palnika(ów), a następnie zamknij zawór kulowy zbiornika gazu. (Proszę wykonać powyższą operację w podanej kolejności. Niezastosowanie się do tego spowoduje niebezpieczny zwrot akcji.) MAINTENANCE 5.
  • Page 37 Przedstawiciel KE: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt nad Menem. REPUBLIKA WIELKIEJ BRYTANII: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia Import do USA: Sanven Technology Ltd.
  • Page 39 Techniczny Certyfikat wsparcia i e-gwarancji www.vevor.com/support...
  • Page 40 Technischer Support und E-Garantie-Zertifikat www.vevor.com/support PROPAN-SCHMIEDE We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 42 PROPANE FORGE JHBXG 2A JHBXG 2B/ JHBXG 2C/ JHBXG 2D/ JHBXG MODELL: NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...

  • Page 43: Safety Instructions

    This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 44 den Türen oder offenen Endöffnungen vollständig verschlossen werden. Dies kann zu schweren Schäden und möglichen Verletzungen führen. 71. Vermeiden Sie es, vor Öffnungen und Abluftöffnungen zu stehen oder sich dort aufzuhalten. Extrem hohe Temperaturen erreichen während des Betriebs etwa zwei Fuß von allen Öffnungen entfernt. Wenn Sie Objekte aus einer heißen Schmiede entnehmen, nähern Sie sich ihr von der Seite oder von unten.
  • Page 45 Oberflächentemperatur der Schmiede und ihrer Komponenten bis zu 315 °C erreichen. Berühren Sie keine Teile der Schmiede, während diese sich aufheizt oder heiß ist. Stellen Sie die Schmiede nicht in die Nähe einer Wand oder eines brennbaren Materials. Lassen Sie die Schmiede vor der Handhabung vollständig abkühlen.

  • Page 46: Structure Diagram

    STRUCTURE DIAGRAM NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTIZ: 7. Es ist nicht notwendig, diese Armaturen bis zum Äußersten zu zwingen, es ist jedoch wichtig, beim Festziehen der Teile die richtige Schraubenschlüsselgröße zu verwenden.

  • Page 47: Parts List

    PARTS LIST Schmiedekörper Luftbremse Gasdruck Regler Gasschlauch Brenner Feuerfeste Ziegelsteine (230*11,5 * 20 mm) x1 Benutzerhandbuch​ ​ OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ② Insert the burner into each opening at the top of the forging. ③...
  • Page 48 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. WARNUNG Bitte beachten Sie, dass die Schließ- und Öffnungsvorgänge in der - 7 -...

  • Page 49: Maintenance

    folgenden Reihenfolge durchgeführt werden : Schritte zum Öffnen: Zuerst den Kugelhahn der Gasflasche öffnen, dann den Kugelhahn des/der Brenner(s) öffnen. Schließschritte: Zuerst den Kugelhahn des/der Brenners/Brenner schließen, dann den Kugelhahn der Gasflasche schließen. (Bitte befolgen Sie die obigen Schritte in der richtigen Reihenfolge. Andernfalls kann es zu einer gefährlichen Fehlzündung kommen.) MAINTENANCE 7.
  • Page 50 Adresse: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN. EG-Vertreter: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main. UK-VERTRETER: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien In die USA importiert: Sanven Technology Ltd.
  • Page 52 Technisch Support und E-Garantie-Zertifikat www.vevor.com/support...
  • Page 53 Assistance technique et certificat de garantie électronique www.vevor.com/support FORGE AU PROPANE We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 55 PROPANE FORGE JHBXG 2A JHBXG 2B/ JHBXG 2C/ JHBXG 2D/ JHBXG MODÈLE : NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...

  • Page 56: Safety Instructions

    This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 57 être complètement fermés sur les portes ou les orifices d'extrémité ouverts. Cela pourrait causer des dommages graves, voire des blessures corporelles. 91. Évitez de vous tenir debout ou de vous déplacer devant les ouvertures et les orifices d’échappement. Les températures extrêmement élevées s'étendent à...
  • Page 58 100. Un équipement de protection individuelle est requis lors de la manipulation du rigidificateur, du réfractaire satanite et de la couverture isolante pendant l'installation. MODEL AND PARAMETERS JHBXG2A /​ JHBXG2B / JHBXG2C / Modèle JHBXG 2D / JHBXG 2E Carburant...

  • Page 59: Structure Diagram

    STRUCTURE DIAGRAM NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTE: 9. Il n'est pas nécessaire de forcer ces raccords à l'extrême, cependant, il est important d'utiliser la bonne taille de clé...

  • Page 60: Parts List

    PARTS LIST Corps de forge Cale pneumatique Pression du gaz X2​ Régulateur x1​ Tuyau de gaz Brûleur Briques Réfractaires X2​ (230*11 5 *20mm) x1 Manuel de l' Utilisateur OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ②...
  • Page 61 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. AVERTISSEMENT Veuillez noter que les opérations de fermeture et d'ouverture s'effectuent - 7 -...

  • Page 62: Maintenance

    dans l'ordre suivant : Étapes d'ouverture : Ouvrez d'abord le robinet à bille du réservoir de gaz, puis ouvrez le robinet à bille du ou des brûleurs. Étapes de fermeture : Fermez d’abord le robinet à bille du ou des brûleurs, puis fermez le robinet à...
  • Page 63 Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. REPRÉSENTANT CE : E-CrossStu GmbH. Mainzer Landstr.69, 60329 Francfort-sur-le-Main. REPRÉSENTANT DU ROYAUME-UNI : YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETASTWOOD NSW 2122 Australie Importé...
  • Page 65 Technique Assistance et certificat de garantie électronique www.vevor.com/support...
  • Page 66 Technische ondersteuning en e-garantiecertificaat www.vevor.com/support PROPAAN SMED We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 68 PROPANE FORGE JHBXG 2A JHBXG 2B/ JHBXG 2C/ JHBXG 2D/ JHBXG MODEL: NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...

  • Page 69: Safety Instructions

    This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 70 110. VOORZICHTIGHEID! In geen geval mogen de uitlaatpoorten volledig worden afgesloten op de deuren of open eindpoorten. Dit kan ernstige schade en mogelijk lichamelijk letsel veroorzaken. 111. Vermijd staan of bewegen naar de voorkant van openingen en uitlaatpoorten. Extreem hoge temperaturen reiken tijdens bedrijf tot ongeveer 60 cm uit openingen.
  • Page 71 hanteert. 120. Persoonlijke beschermingsmiddelen zijn vereist bij het hanteren van Rigidizer, Satanite Refractory en Isolatiedeken tijdens de installatie. MODEL AND PARAMETERS JHBXG 2 A / JHBXG 2B / JHBXG 2C / Model JHBXG 2D / JHBXG 2E Brandstof Propaan Werkdruk 14,5~29PSI(0,1~0,2MPa) Maximale temperatuur 2600°F ±3% (1427℃±3%）...
  • Page 72 NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge OPMERKING: 11.Het is niet nodig om deze fittingen tot het uiterste te forceren, maar het is wel belangrijk om de juiste sleutelmaat te gebruiken bij het vastdraaien van de onderdelen.

  • Page 73: Parts List

    PARTS LIST Smeed lichaam Luchtblok Gas druk Regelaar X2​ Gasslangleiding Brander Vuurvaste stenen X2​ (230*11 5 *20mm) x1 Handleiding​ ​ OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ② Insert the burner into each opening at the top of the forging.
  • Page 74 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. WAARSCHUWING Houd er rekening mee dat de sluitings- en openingshandelingen in de - 7 -...

  • Page 75: Maintenance

    volgende volgorde worden uitgevoerd : Stappen voor het openen: Open eerst de kogelkraan van de gasfles en vervolgens de kogelkraan van de brander(s). Sluitstappen: Sluit eerst de kogelkraan van de brander(s) en sluit vervolgens de kogelkraan van de gasfles. (Volg de bovenstaande handelingen in de juiste volgorde. Als u dit niet doet, kan dit een gevaarlijke averechtse uitwerking tot gevolg hebben.) MAINTENANCE 11.Alle kleppen, meters, regelaars en slangen moeten wekelijks op slijtage...
  • Page 76 shanghai 200000 CN. EG-REP: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main. VK REP: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Geïmporteerd naar AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australië Geïmporteerd naar de VS: Sanven Technology Ltd.
  • Page 78 Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support...
  • Page 79 Teknisk support och e-garanticertifikat www.vevor.com/support PROPANSMIDA We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 81 PROPANE FORGE JHBXG 2A JHBXG 2B/ JHBXG 2C/ JHBXG 2D/ JHBXG MODELL: NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...

  • Page 82: Safety Instructions

    This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 83 allvarliga skador och möjliga kroppsskador. 131. Undvik att stå eller flytta dig fram till öppningar och avgasportar. Extremt höga temperaturer sträcker sig cirka två fot från alla öppningar under drift. När du hämtar föremål från en varm smedja gå till den från sidan eller botten.

  • Page 84: Structure Diagram

    MODEL AND PARAMETERS JHBXG 2 A / JHBXG 2B / JHBXG 2C / Modell JHBXG 2D / JHBXG 2E Bränsle Propan Arbetstryck 14,5–29 PSI(0,1–0,2 MPa) Maximal temperatur 2600°F ±3% (1427℃±3%） Form Rektangel Antal brännare Antal dörrar​ Material Rostfritt stål STRUCTURE DIAGRAM - 4 -...
  • Page 85 NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTERA: 13.Det är inte nödvändigt att tvinga dessa beslag till det yttersta, men det är viktigt att använda rätt skiftnyckelstorlek när du drar åt delarna.

  • Page 86: Parts List

    PARTS LIST Forge Body Air Chock Gastryck Regulator Gasslangsrör Brännare Eldfasta tegelstenar (230*11 5 *20 mm) x1 Användarmanual​ ​ OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ② Insert the burner into each opening at the top of the forging. ③...
  • Page 87 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. VARNING Observera att stängnings- och öppningsoperationerna utförs i följande - 7 -...

  • Page 88: Maintenance

    ordning : Öppna steg: Öppna först kulventilen på gasbehållaren, öppna sedan kulventilen på brännaren/brännarna. Stängningssteg: Stäng först kulventilen på brännaren/brännarna, stäng sedan kulventilen på gasbehållaren. (Vänligen följ ovanstående operation i ordning. Om du inte gör det kommer det att resultera i en farlig bakslag.) MAINTENANCE 13.Alla ventiler, mätare, regulatorer och slangar bör kontrolleras varje vecka för slitage.
  • Page 89 EC REP: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Frankfurt am Main. UK REP: YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien Importerad till USA: Sanven Technology Ltd.
  • Page 91 Teknisk Support och e-garanticertifikat www.vevor.com/support...
  • Page 92 Soporte técnico y certificado de garantía electrónica www.vevor.com/support FORJA DE PROPANO We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
  • Page 94 PROPANE FORGE JHBXG 2A JHBXG 2B/ JHBXG 2C/ JHBXG 2D/ JHBXG MODELO: NEED HELP? CONTACT US! Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support - 1 -...
  • Page 95 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
  • Page 96 finales. Esto podría causar daños graves y posibles lesiones corporales. 151. Evite pararse o moverse hacia el frente de las aberturas y puertos de escape. Las temperaturas extremadamente altas se extienden aproximadamente a dos pies de cualquier abertura mientras está en funcionamiento.
  • Page 97 160. Se requiere equipo de protección personal al manipular el rigidizador, el refractario de satanita y la manta aislante durante la instalación. MODEL AND PARAMETERS JHBXG 2 A / JHBXG 2B / JHBXG 2C / Modelo JHBXG 2D / JHBXG 2E Combustible Propano Presión laboral...
  • Page 98 NOTE: Your assembly should look like the figure ! Air Chock Valve 1 Air Chock Valve 2 Adjusting the air Adjusting the air intake inside the burner intake inside the burner Burners2 Burners1 Fire Brick Forge NOTA: 15.No es necesario forzar estos accesorios al extremo; sin embargo, es importante utilizar el tamaño de llave adecuado al apretar las piezas.
  • Page 99 PARTS LIST Cuerpo de forja Calzo de aire Presion del gas x2​ Regulador x1​ Manguera de gas Quemador Ladrillos refractarios x2​ (230*11 5 *20mm) x1 Manual de usuario OPERATION STEPS ① Place the copper nozzle at each end of the bridge. ②...
  • Page 100 Install the copper nozzle to the burner. NOTE: Screw the nozzle to the red line. Then tighten the screws above. ADVERTENCIA Tenga en cuenta que las operaciones de cierre y apertura se realizan en el - 7 -...
  • Page 101 siguiente orden : Pasos de apertura: Primero, abra la válvula de bola del recipiente de gas, luego abra la válvula de bola del(los) quemador(es). Pasos de cierre: Primero, cierre la válvula de bola del(los) quemador(es), luego cierre la válvula de bola del recipiente de gas. (Siga la operación anterior en orden.
  • Page 102 Fabricante: Shanghaimuxinmuyeyouxiangongsi Dirección: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN. REPRESENTANTE CE: E-CrossStu GmbH. Mainzer Landstr.69, 60329 Fráncfort del Meno. REPRESENTANTE DEL REINO UNIDO: YH CONSULTING LIMITED. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX Importado a AUS: SIHAO PTY LTD.
