PASTE LIQUID FILLING MACHINE
USER MANUAL
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an
estimate of savings you might benefit from buying certain tools with us compared to the major
top brands and does not necessarily mean to cover all categories of tools offered by us. You
are kindly reminded to verify carefully when you are placing an order with us if you are
actually saving half in comparison with the top major brands.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for VEVOR SY-1200-V1
Summary of Contents for VEVOR SY-1200-V1
- Page 1 Technical Support and E-Warranty Certificate www.vevor.com/support PASTE LIQUID FILLING MACHINE USER MANUAL We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us.
- Page 2 This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
-
Page 3: General Safety Rules
1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating. 2. Failure to follow the safety rules and other basic safety precautions may result in serious personal injury. GENERAL SAFETY RULES Important reminder 1.Before use, please carefully read the product manual and ensure that you understand and comply with all safety warnings and usage precautions. - Page 4 3. When foreign objects are found on the surface of the product, please immediately stop using and remove the foreign objects before continuing to use. 4. When using this product continuously for a long time, please rest in good time to avoid excessive fatigue. 5.
- Page 5 MODEL AND PARAMETERS SY-120 SY-120 SY-120 SY-M90 SY-M90 SY-M90 Model 0-V1 0-V2 0-V3 All free-flowing pastes and All free-flowing pastes and liquids (no particles) such as liquids (no particles) such as Suitable Soy sauce, beverages, white Soy sauce, beverages, white liquid wine, vinegar, milk, alcohol wine, vinegar, milk, alcohol...
-
Page 6: Structure Diagram

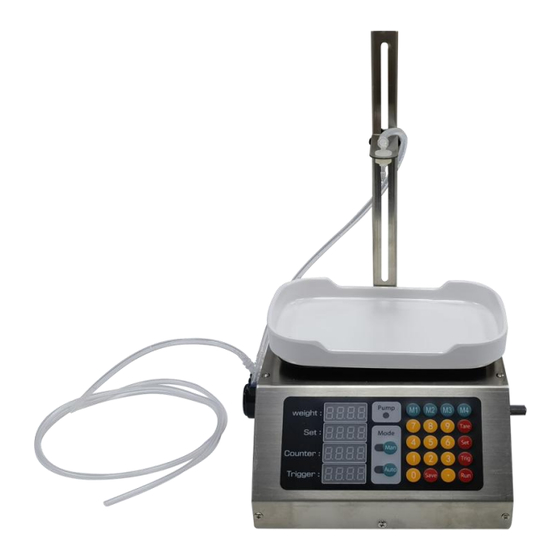

STRUCTURE DIAGRAM SY-1200-V1,SY-1200-V2,SY-1200-V3 1. Bracket 2. Tray 3. Control Panel 4. Inlet Hose and Filter 5.Peristaltic Pump 6.Outlet Hose and Filling Nozzle 7. Power Switch 8. AC Power Socket 9. Flow Knob - 5 -... - Page 7 SY-M90-V1,SY-M90-V2,SY-M90-V3 1.Bracket 2. Tray 3. Control Panel 4. Inlet Hose 5.Peristaltic Pump 6.Outlet Hose and Filling Nozzle 7. Power Switch 8. AC Power Socket 9. Flow Knob - 6 -...
- Page 8 COMPONENTS SY-1200-V1 SY-M90-V1 Model SY-1200-V2 SY-M90-V2 Parts SY-1200-V3 SY-M90-V3 Power Cord ×1 ×1 Bracket ×1 ×1 Hose(with filter) ×1 Silicone Hose(short) ×1 Inlet Hose ×1 Outlet Hose ×1 Sponge Strip(black) ×1 ×1 Filling Nozzle ×2 ×2 User Manual ×1 ×1...
- Page 9 OPERATING INSTRUCTIONS 1.Place the tray on top as shown 2.Removal screws and Install the bracket and lock it with screws as shown. 3.Open the cover of the peristaltic 4.Open the clips of the peristaltic pump. pump. 5.Wrap the hose into the peristaltic 6.
- Page 10 7.Adjust filling nozzle height and plug 8.Insert the power cord as shown. in hose. 9. Product assembly completed. Note:The product is supplied with a thin filling nozzle.You can install it as needed. After use,it can be cleaned by repeatedly pumping water.Or replace the hose.
- Page 11 The display window and button function description 1, Display window: Weight : displays the actual weight of the item being weighed Set: User. set weight to be filled Counter : number of bottles that have been filled Trigger : the weight value that triggers the auto start 2，Button function: [Man] : Enter manual mode [Auto] : enter automatic mode...
- Page 12 (2) Remove the filled bottle, put down an empty bottle, press the [Tare] [Run] button to start the next filling. 4，"Automatic mode" operation method: (Press the [Auto] key, the automatic light is on, enter the automatic mode) Put the empty bottle, the system automatically peels and automatically starts filling after a delay of x seconds.
- Page 13 then enter the value to be set , and then press [Trig] again. 9, "factory settings" method: press the [ auto ] button, and then hold the [5] button not to let go, until the machine alarm "beep" after the release. The machine is back to factory status.
-
Page 14: Maintenance
MAINTENANCE 1.The user shall select a quantitative filling machine of a suitable range according to the said products. 2.The machine contains a precision electronic scale, it is forbidden to be overweight. 3.The Height of filling head can be adjusted to about 10 mm from the bottle mouth. - Page 15 Confirm hose inlet into liquid Hose inlet and outlet are inverted The pump tank. can't get the The power cord is not plugged in Reconnect the power cord liquid out Hose folded or damaged Smooth hose or replace hose The power indicator is The power cord is not plugged in Reconnect the power cord...
- Page 16 Technical Support and E-Warranty Certificate www.vevor.com/support...
