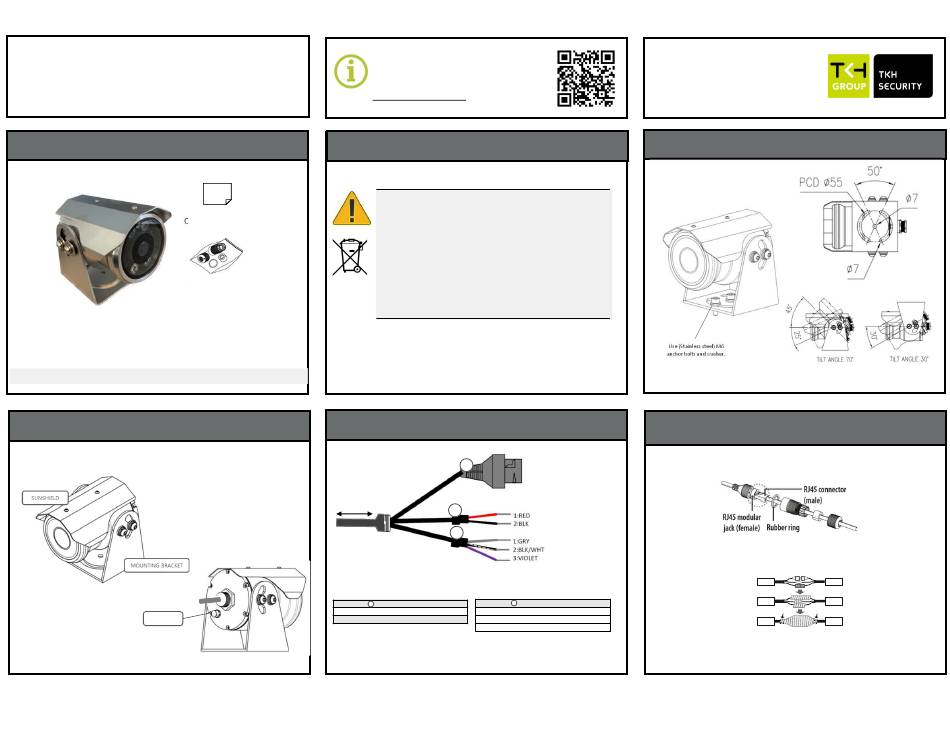

TKH security SA-BLM04 Quick Start Manual

SA-BLM04 or SA-BL28

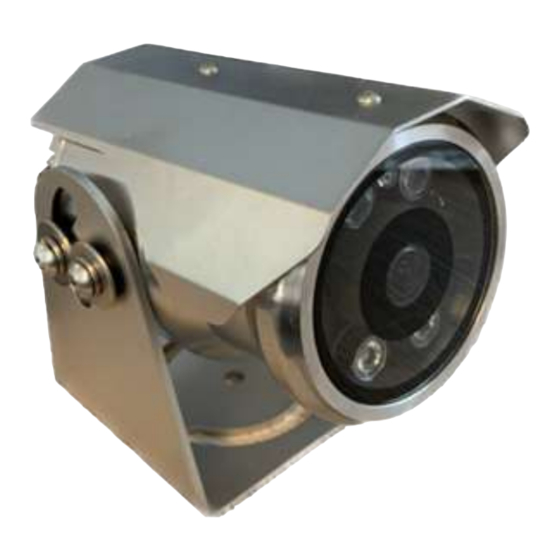

Corrosion proof compact bullet camera
Quick Start Guide
Unpack
Quick Start Guide
waterproof Kit
SA-BLM04 or SA-BL28
Note 1: Subject to modification. Actual product and accessories may differ in appearance.
Appearance
VENT PLUG
© TKH Security. 2023
Vision 1.0 (20230602)
SA-BLM04-BL28_QSG
Find additional manuals, the datasheet,
the EU Declaration of Conformity, and
the latest firmware for this product at:
http://tkhsecurity.com
Installation Notices
CAUTION:
INSTALLATION SHALL BE PERFORMED BY QUALIFIED PERSONNEL ONLY.
INSTALLATION SHALL BE IN ACCCORDANCE WITH LOCAL PROCEDURES.
THE CAMERA CONTAINS BATTERIES. DO NOT REPLACE THEM IN RISK OF
EXPLOSION.
DISPOSE BATTERIES IN ACCORDANCE WITH LOCAL REGULATIONS.
DO NOT EXPOSE THE VENT PLUG TO EXCESSIVE HEAT OR PHYSICAL SHOCK.
IF YOU USE AN EXTERNAL POWER SUPPLY, CONTACT TKH SECURITY TO MAKE
SURE THAT THE POWER SUPPLY HAS THE PROPER POWER SPECIFICATIONS.
MAKE SURE THAT THE POWER SUPPLY COMPLIES WITH LPS REQUIREMENTS.
WHEN INSTALLING THE CAMERA, MAKE SURE TO USE APPROPRIATE
ANCHORE BOLTS M10 OR BETTER. THE ANCHOR BOLTS SHOULD HOLD A LOAD
OF AT LEAST 100KG.
FOR MORE INFORMATION, CONTACT TKH Security.
Camera Cabling
1
1.5 meter
2
3
Alarm cable 3
Power cable 2 COLOR
ALARM INPUT
Camera power (DC12V) RED
GND BLACK GND
ALARM OUTPUT
Use (Stainless steel) M6
anchor bolts and washer.
1. Use the RJ45 waterproof accessory to protect the RJ45 connection from water.
Ethernet (RJ45)
Power cable
Alarm cable
2. Use the delivered heat shrink to protect the power cable and the alarm cable
from water ingress
COLOR
GRAY
BLACK/WHITE
VIOLET
Mounting the camera
Drill template [mm].
Viewing angle
IP66 connections
Camera System
Camera System
A A
Camera System
