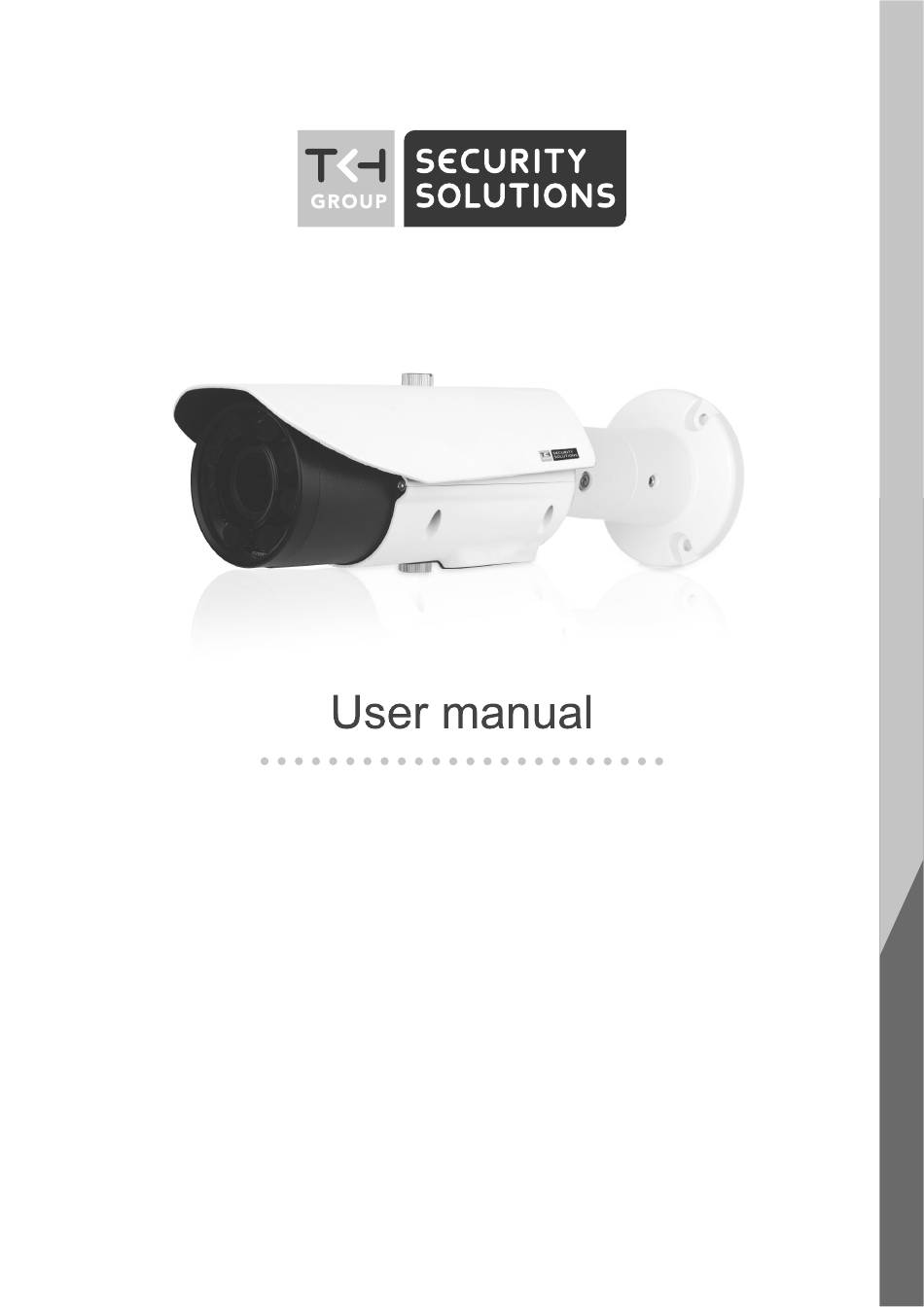

- Page 1 User manual Network LPR bullet TKIB25M1P tkhsecurity.fr V.201910.01...
- Page 2 User Manual - Network LPR Bullet - TKIB25M1P...
- Page 3 User Manual - Network LPR Bullet - TKIB25M1P Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
- Page 4 User Manual - Network LPR Bullet - TKIB25M1P Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.
- Page 5 User Manual - Network LPR Bullet - TKIB25M1P Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products. This manual may contain misprints, technology information that is not accurate enough, or product function and operation description that is slightly inconsistent with the actual product.
-
Page 6: Table Of Contents
User Manual - Network LPR Bullet - TKIB25M1P Contents Precautions ........................1 Device Installation ....................1.1 scene requirements ......................1.2 Angles of mounting ......................1.2.1 Vertical angle ...................... 1.2.2 Horizontal angle ....................1.2.3 Minimal distance ....................2 Quick Configuration ..................... -
Page 7: Device Installation
User Manual - Network LPR Bullet - TKIB25M1P Device Installation 1.1 scene requirements License plate must be readable and well light. License plate image dimensions (Pixel) must be at least: 1. For Russia, Kazakhstan, Armenia, Uzbekistan, Serbia: 150 pixels for rectangular plates and 100 pixels for two row plates 2. -
Page 8: Horizontal Angle
User Manual - Network LPR Bullet - TKIB25M1P Figure 1-2 Vertical angle 1.2.2 Horizontal angle Horizontal angle should not exceed 30 degrees, as shown in Figure 1-3. Figure 1-3 Horizontal angle 1.2.3 Minimal distance The initial formula is x =h *1.7 First of all you measure the vertical angle. - Page 9 User Manual - Network LPR Bullet - TKIB25M1P Table 1-1 Correspondence between installation height and distance h (meters) Minimal x (meters)
-
Page 10: Quick Configuration
User Manual - Network LPR Bullet - TKIB25M1P Quick Configuration 2.1 Login and Logout You must use Internet Explorer 6 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open Internet Explorer, enter the IP address of the IP camera (default value: 192.168.0.120) in the address box, and press Enter. -
Page 11: Install Plugins
User Manual - Network LPR Bullet - TKIB25M1P logout To logout of system, click in the upper right corner of the main page, the login page is displayed after you log out of the system. 2.2 Browsing Video 2.2.1 Install plugins You will be prompted with a message “download the latest plugins”... -
Page 12: Setting Local Network Parameters
User Manual - Network LPR Bullet - TKIB25M1P 2.2.2 Browsing Video To browse real-time videos, click Live Video. The Live Video page is displayed, as shown in Figure 2-4. Figure 2-4 Live Video 2.3 Setting Local Network Parameters Description Local network parameters include:... - Page 13 User Manual - Network LPR Bullet - TKIB25M1P Figure 2-5 Local network Step 2 Set the parameters according to Table 2-1. Table 2-1 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses [Setting method] an address length of 32 bits.
- Page 14 User Manual - Network LPR Bullet - TKIB25M1P Parameter Description Setting IP Address Device IP address that can be [Setting method] set as required. Enter a value manually. [Default value] 192.168.0.120 Subnet Mask Subnet mask of the network [Setting method] adapter.
-
Page 15: Front-End Configuration
User Manual - Network LPR Bullet - TKIB25M1P 2.4 Front-end Configuration Procedure Step 1 Move the cursor to the real-time video page and right-click on the page. A shortcut menu is displayed, as shown in Figure 2-6. Figure 2-6 Front-end configuration menu Step 2 Choose Sensor. - Page 16 User Manual - Network LPR Bullet - TKIB25M1P You can set the start time accordig to the local sunset time and set the end time according to the local sunrise time. Step 4 Configure Exposure. 1. Click Exposure, the Exposure page is displayed as shown in Figure 2-8.
-
Page 17: License Plate Recognition Configuration
User Manual - Network LPR Bullet - TKIB25M1P 2. Set the D/N Setting to Night Mode. 3. Set the IR LED to Manual. 4. Set the Strength to 40. 5. Click Save, the message "Save success" is displayed. Strength of IR LED is only for IR camera. - Page 18 User Manual - Network LPR Bullet - TKIB25M1P Figure 2-11 List Configure Step 2 Table 2-2 describes the operations. Table 2-2 Operation description Function Procedure Description Export Export the list file. (1) Click the open or save list file prompt page is displayed.
- Page 19 User Manual - Network LPR Bullet - TKIB25M1P Function Procedure Description Add the license (1) Click , an input box is displayed. plate number in (2) Enter the license plate number and black (white) list. click the left mouse button in blank area.
-
Page 20: Parameter Configure
User Manual - Network LPR Bullet - TKIB25M1P Advanced setting contains: no action, FTP upload, relay on and SMTP. As shown in Figure 2-12 Figure 2-12 Advanced setting 2. Set Black List Action: Enable the linkage actions. The linkage action will be performed automatically when the license plate in black list recognized by camera. -
Page 21: Linkage Configure
User Manual - Network LPR Bullet - TKIB25M1P Figure 2-13 Parameter Configure Step 2 Set Minimum Width of License Plate Drag the slider to set the minimum width of license plate, the setting range is 130~300 pixels. Step 3 Set direction angle of vehicle, the range of angle is 0 - 360 . -
Page 22: License Plate Recognition Search
User Manual - Network LPR Bullet - TKIB25M1P Procedure Step 1 Choose Configuration > License Plate Recognition > Linkage Configure. The Linkage Configure page is displayed, as shown in Figure 2-14. Figure 2-14 Linkage Configure Step 2 Set Valid Signal. - Page 23 User Manual - Network LPR Bullet - TKIB25M1P Figure 2-15 LPR Search Step 2 Set the parameters according to Table 2-3 Table 2-3 LPR Search parameters Parameter Description Setting Time Time period of license plate [Setting method] recognition. Click input box, the calendar is displayed.
- Page 24 User Manual - Network LPR Bullet - TKIB25M1P Parameter Description Setting Direction Direction of vehicles [Setting method] Select a value from the drop- down list box. [Default value] Class of License Plate List [Setting method] Number, likes white list, Select a value from the drop- black list and not in list.
-
Page 25: Troubleshooting
User Manual - Network LPR Bullet - TKIB25M1P Troubleshooting Table 3-1 lists the troubleshooting of the camera. Table 3-1 Troubleshooting of the camera Problems countermeasure Photo Focus Adjust the focus on the lens. Too much Adjust the shutter speed, light or dim the IR-Led (for the night). - Page 26 User Manual - Network LPR Bullet - TKIB25M1P Notes...
- Page 27 User Manual - Network LPR Bullet - TKIB25M1P Notes...
- Page 28 153, rue Michel Carré 95100 Argenteuil - FRANCE tel :+33 (0)1.30.76.30.30 - info.fr@tkhsecurity.com - tkhsecurity.fr V.201910.01...
