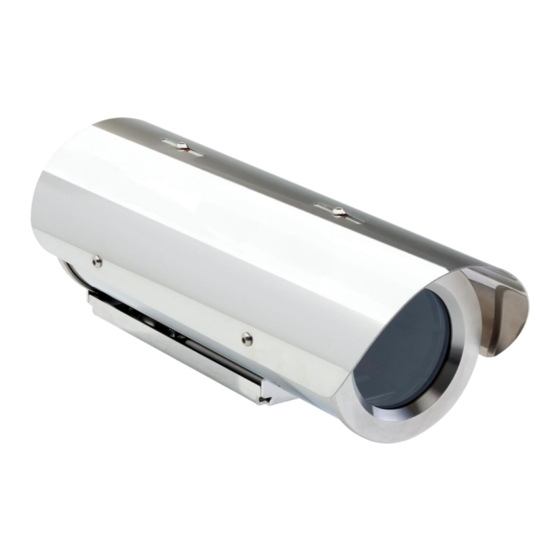

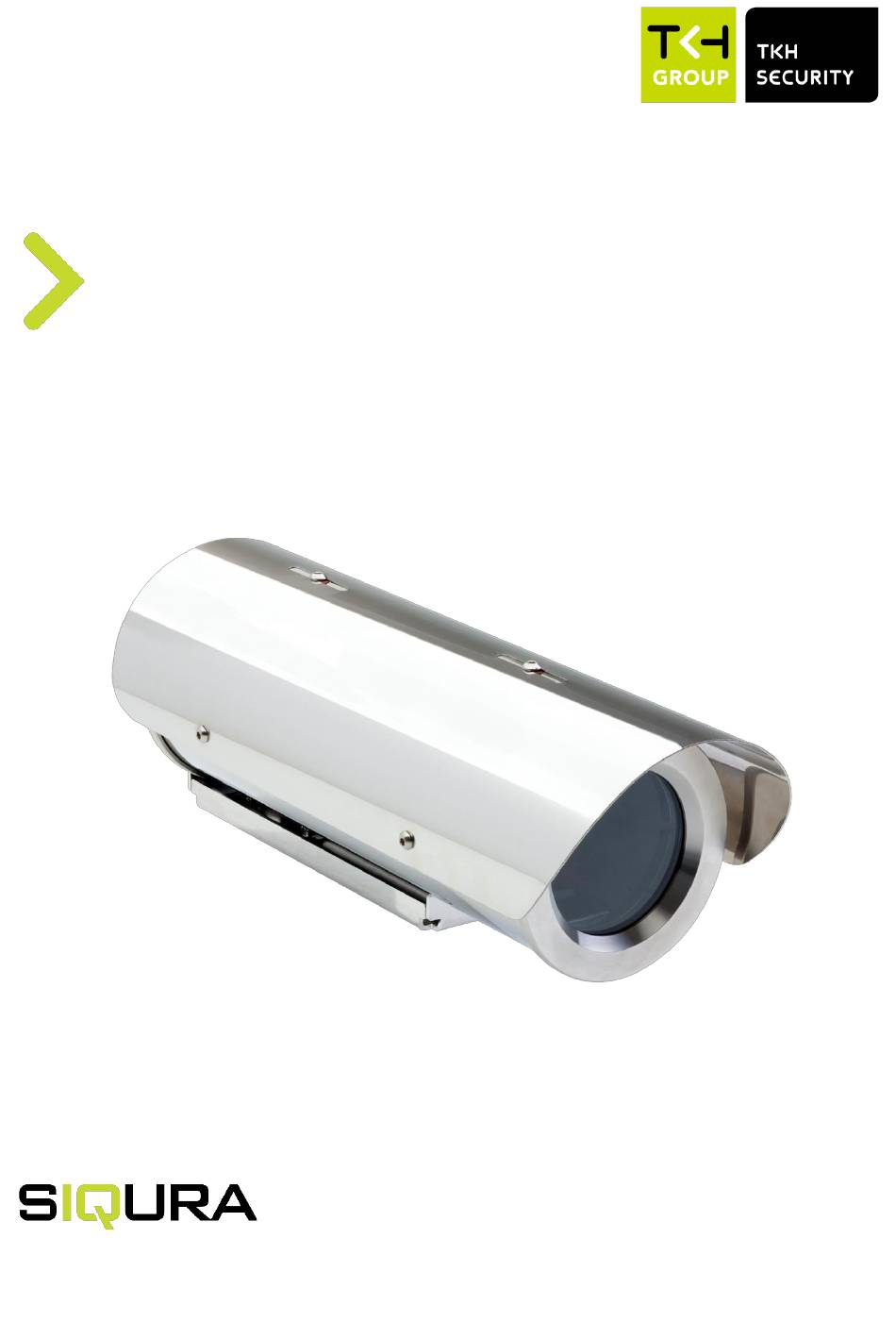

- Page 1 SA FIX Series Installation manual 316L Fixed camera station Copyright © 2021 TKH Security. Version 2.0. TKH Security | Siqura EX-PD24 | Installation manual...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability TKH Security accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Contents Description .......................... 4 Models ......................... 4 Installing the Camera ......................5 Installation procedure ......................7 Maintain the unit ........................ 10 Inspections ......................... 10 Routine activities ......................10 Dimensions ........................12 TKH Security | Siqura EX-PD24 | Installation manual... -
Page 4: Description
SA-FIX230W Safe Area Fixed Camera 316L 230VAC, Wiper SA-FIX24T Safe Area Fixed Thermal Camera 316L 24VAC SA-FIX115T Safe Area Fixed Thermal Camera 316L 115VAC SA-FIX230T Safe Area Fixed Thermal Camera 316L 230VAC TKH Security | Siqura SA FIX Series | Installation manual... -
Page 5: Installing The Camera
An all-pole mains switch with an opening distance between the contacts at least 3 mm in each pole must be incorporated in the electrical installation. The switch must be equipped with protection against the fault current towards the ground (differential) and TKH Security | Siqura SA FIX Series | Installation manual... - Page 6 Earth cable should be about 10mm longer than the other cables on the connector, in such way that it won't be accidentally disconnected if the cable is stretched or pulled. When leaving the unit unused for long periods, disconnect supply cables. TKH Security | Siqura SA FIX Series | Installation manual v2...
-
Page 7: Installation Procedure
230 (115) Vac model: supply voltage (on "LINE" connector: line on L pin and neutral on N pin). Connect the earth cable to the 2-way screw terminal block. 24Vac “N” 24Vac “L” 230Vac “L” 230Vac “N” TKH Security | Siqura SA FIX Series | Installation manual... - Page 8 Models with integrated wiper are fitted with a mini telemetry receiver. Connect the washer pump (WP10-24/115/230) to AUX 2. (M3, pin 3 & 4). A 24 Vac control signal is activated to switch on the WP10 24Vac “N” TKH Security | Siqura SA FIX Series | Installation manual v2...
- Page 9 Check the proper position of the seal in its groove on the rear flange. Tighten the cable glands up till an 8 Nm torque ratio. Tighten the two M6 on the rear flange screws to the main body. TKH Security | Siqura SA FIX Series | Installation manual v2...
-
Page 10: Maintain The Unit
Do not use compressed air to clean the unit. Check electrical connections Check cables and electrical connections for integrity and tightness. If the cables seem worn or damaged, refer to the Extraordinary maintenance section. TKH Security | Siqura SA FIX Series | Installation manual v2... - Page 11 TKH Security Proposal | RFP Name | RFP Number Check mounting accessories Check mounting bolts and screws for integrity and tightness. Replace or tighten any damaged/loose mounting hardware. TKH Security | Siqura SA FIX Series | Installation manual v2...
-
Page 12: Dimensions
Dimensions SA-FIX SA-FIX T TKH Security | Siqura SA FIX Series | Installation manual... - Page 13 TKH Security Proposal | RFP Name | RFP Number SA-FIX W TKH Security | Siqura SA FIX Series | Installation manual v2...
- Page 14 TKH Security Proposal | RFP Name | RFP Number tkhsecurity.com Brands Our Brands © 2020, TKH Security. © 2021, TKH Security. TKH Security | Siqura EX-PD24 | Installation manual...
