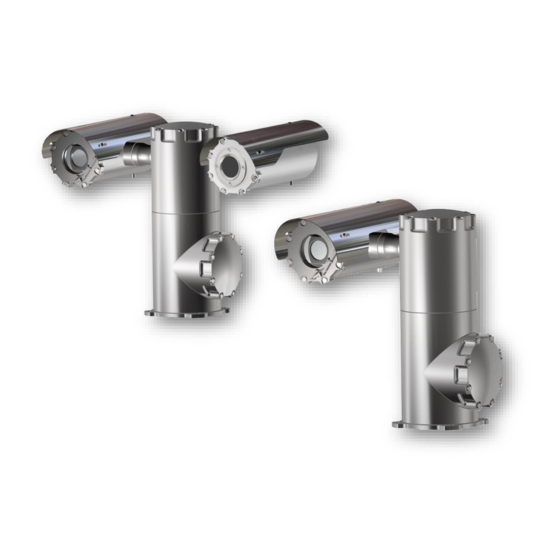

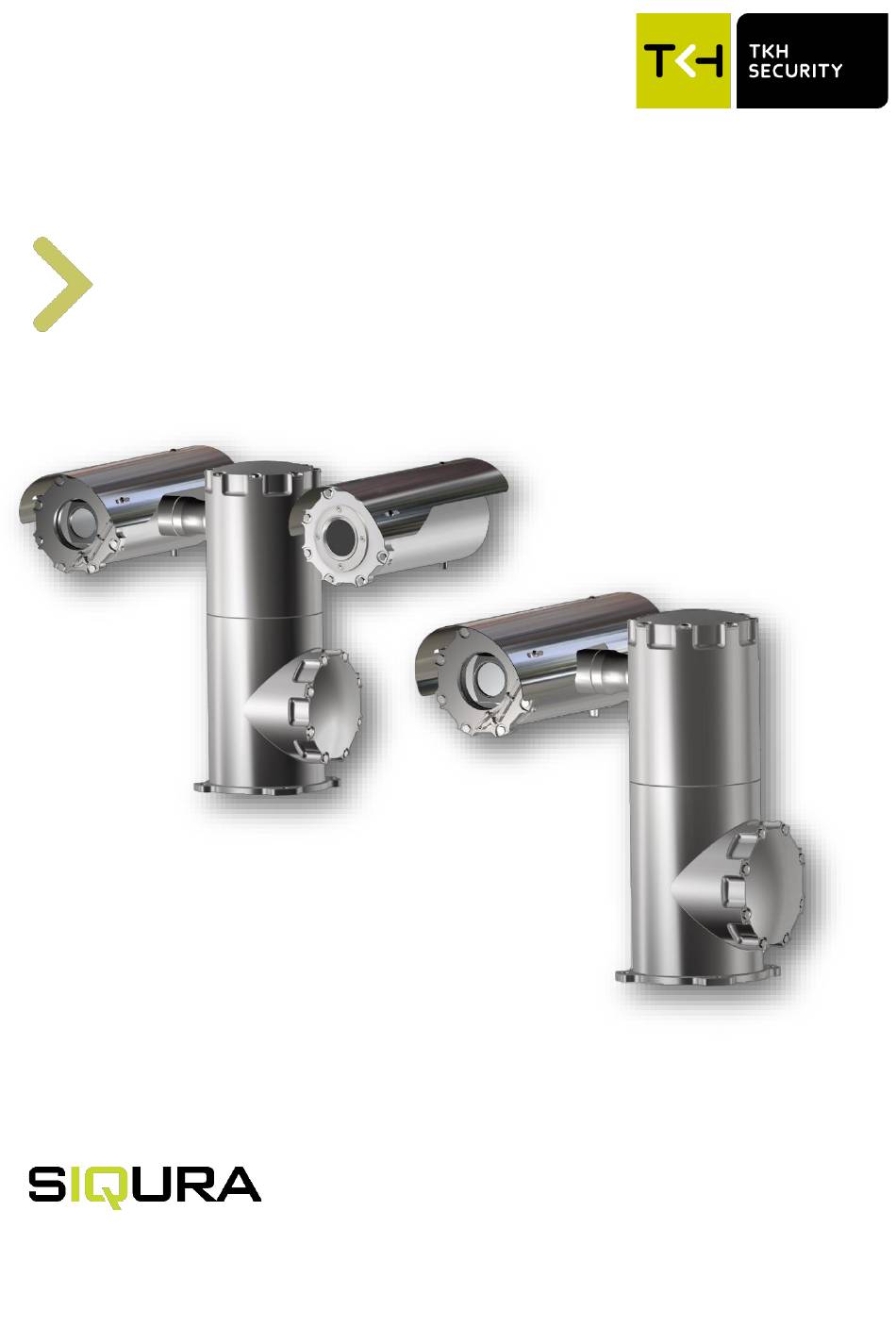

- Page 1 SA3 PTZ Series Installation manual 3rd Generation SA PTZ Camera 316L Copyright © 2024 TKH Security. Version 1.0. TKH Security | Siqura EX-PD24 | Installation manual...
- Page 2 Any brand names mentioned in this manual are registered trademarks of their respective owners. Liability TKH Security accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
-
Page 3: Table Of Contents
Before you continue ......................7 Unpacking ........................... 9 Installation ......................... 10 Maintain the unit ........................ 22 Sync IR with D/N mode ..................... 23 EU Certificates ........................25 Appendix: Technical drawings ................... 28 TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 3-30... -
Page 4: Introduction
The manufacturer declines all responsibility for any consequences resulting from improper use of the product, or use which is different from that expected and specified in the present documents. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 4-30... -
Page 5: General Information
SA3-PTZ(v)D-IR34. Dual head optical upright pan, tilt, and zoom camera with IR illuminator (v) determines the power supply voltage. (v) can be 24 for AC 24 V, 120 for AC 120 V or 230 for AC 230 V TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 5-30... - Page 6 OPTICAL RADIATION It indicates a potentially dangerous situation due to the emission of visible light or infrared that could be harmful for eyes. Read the provided instructions carefully. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 6-30...
-
Page 7: Before You Continue
Only for SA3-PTZD IR34 with integrated IR LED illuminator: The unit emits high intensity IR light. Wear protective eyewear. Avoid direct eye and skin exposure. Please follow safety precautions given in IEC 60825-1 and IEC 62471. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 7-30... - Page 8 Supply voltage: (v) = 24 AC 24V (±10%) (v)= 120 AC 120V (±10%) (v)= 230 AC 230V (±10%) Certifications Weatherproof standard: IP66/IP67/IP68/IP69 EMC, LVD CE compliant, Class A TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 8-30...
-
Page 9: Unpacking
3. Pull the strap to tilt the unit in vertical 4. Lift the PTZ out of the box. Be careful to position while still in the box any sudden movements of the unit while lifting. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 9-30... -
Page 10: Installation
3x1,5 mm2. The yellow/green PE wire must be longer than the others. Connecting GND/Earth/PE to line or neutral will result in damaging the device and will void the warranty. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 10-30... - Page 11 Route all the cables avoiding contact with the wiper shaft and motor. Do not connect the unit to a supply circuit unless the installation is completed. Check before assembling the position of the O-ring seals in their groove TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 11-30...
- Page 12 . Choose the proper fasteners for surface. The screws must be tightened with suitable torque by authorized and qualified personnel only. See appendix for drawings of the mounting pattern and for the camera physical dimensions TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 12-30...
- Page 13 Check that all the threads are clean. When fixing the screws use thread locking compound (e.g., Loctite) and allow an appropriate rest period. Screws must be tightened to 38Nm with an adequate torque wrench TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 13-30...
- Page 14 INT3-SM10 SA25, 10 meter composite cable with SM fiber, M25 If the composite cable tail isn’t provided by TKH Security, please check the correct cable gland thread dimension. (M25 x1.5) To maintain the IP rating of the unit, use only cables, cable glands, blind-stops, adapters that are suitably rated.
- Page 15 Loosening the back-nut (4) and the middle- (2) and lower flange (3) nut (5) Insert plastic washer (6) and tighten the nut Tighten the middle-nut (5) to 50Nm (7). Tighten the back-nut (4). TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 15-30...
- Page 16 2400 (Default) 9600 19200 57600 Reset button Push 15 seconds to reset to default settings. CAUTION: this operation will reset all the existing presets and the PAN/TILT axis limits. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 16-30...
- Page 17 RJ45 Fast Ethernet Signal out from the camera. Use shielded or unshielded cable according to the needs. Fuse name Fuse value 8 A HT 250 VAC 5x20 10 A HT 250 VAC 5x20 TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 17-30...
- Page 18 Closing the camera base Check if the O-Ring gasket (4) is in its grove before proceeding. Assemble the rear flange (5) in the PTZ and tight the screws (6) to 11Nm TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 18-30...
- Page 19 Check if the O-Ring gasket (3) is inside its grove before proceeding A: Access the IP-camera A: Access the IR-Illuminator B: Closing the camera house B: Closing the Illuminator house TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 19-30...
- Page 20 ON when the IR LEDs are not activated or when they are in short-circuit. Yellow is ON when the IR LEDs are in the activation phase during its hysteresis delay TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 20-30...
- Page 21 Connect earth cable to the PTZ base, between nozzle bracket and screws (1), with M5 ring wire terminal. Adjust horizontal position of the nozzle, use the screwdriver slot (3) on the nozzle to adjust the tilt position TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 21-30...
-
Page 22: Maintain The Unit
All the fuses must be ceramic T type (time lag) with a breaking capacity of 1500 A. Different supply voltage can be supplied and may require different fuse values. In such cases, please contact TKH Security. TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 22-30... -
Page 23: Sync Ir With D/N Mode
1. Open the web interface; click on the “System” tab and open [Events] > [Application]. Check the boxes as shown below: 2. Click the [Manual Trigger] page and again take over the settings as shown in screenshot below: TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 23-30... - Page 24 With these settings the Alarm contact output is synchronized with the Day/Night mode of the camera. The Alarm output of the optical camera must be connected to M6 of the IR control board to switch on/off the IR illuminator TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 24-30...
-
Page 25: Eu Certificates
EU Certificates EU Declaration of conformity TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 25-30... - Page 26 TKH Security Proposal | RFP Name | RFP Number TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 26-30...
- Page 27 TKH Security Proposal | RFP Name | RFP Number TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 27-30...
-
Page 28: Appendix: Technical Drawings
Appendix: Technical drawings SA3-PTZ and SA3-PTZ T TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 28-30... - Page 29 TKH Security Proposal | RFP Name | RFP Number SA3-PTZD and SA3-PTZD-IR TKH Security | Siqura SA3 PTZ Series | Installation manual v1.0 29-30...
- Page 30 TKH Security Proposal | RFP Name | RFP Number tkhsecurity.com Brands Our Brands © 2020, TKH Security. © 2024, TKH Security. TKH Security | Siqura EX-PD24 | Installation manual...
