Summary of Contents for TKH security TKIP55F5S

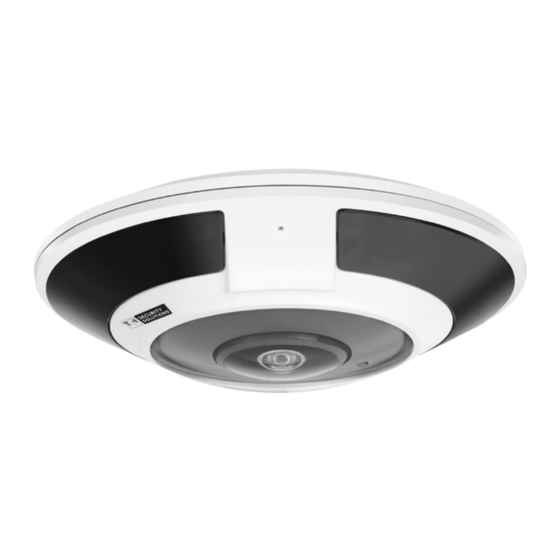

- Page 1 User manual Network fisheye camera TKIP55F5S / TKIP125F5S www.aasset-security.fr V.201910.01...
- Page 2 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S...
- Page 3 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Precautions Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
- Page 4 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged.
- Page 5 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Special Announcement All complete products sold by the manufacturer are delivered along with nameplates, operation instructions, and accessories after strict inspection. The manufacturer shall not be held responsible for counterfeit products.
-
Page 6: Table Of Contents
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Contents Precautions ........................1 Quick Configuration ....................1.1 Login and Logout ......................1.2 Main Page Layout ......................1.3 Browsing Video ......................1 1.3.2 Select the play mode ..................1 1.3.3 In the Google, Firefox, or Safari browsers watch real-time video ....1 1.4 Setting Local Network Parameters ................ -
Page 7: Quick Configuration
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Quick Configuration 1.1 Login and Logout You must use Internet Explorer 8 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system... -
Page 8: Main
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S logout To logout of system, click Sign out in the upper right corner of the main page, the login page is display after you log out of the system. 1.2 Main Page Layout On the main page, you can view real-time video, set parameter, Video parameter, Video control, PTZ control, PTZ Configure and log out of the system. - Page 9 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Element Description Device You can choose a menu to set device parameters, including the device configuration information, audio and video streams, alarm setting, and privacy mask function. Change password You can click to change the password.
- Page 10 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-3 Display mode of live video...
- Page 11 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S...
- Page 12 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S...
-
Page 13: Browsing Video
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S When the device accepts an alarm signal, the alarm icon will display within 10s in the web management system. The alarm icon is displayed. You can click view the alarm information. - Page 14 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-4 Adding the a trusted site Step 2 In the Internet Explorer, choose Tool > Internet Options > Security > Customer level, and set Download unsigned ActiveX control and initialize and script ActiveX controls not marked as safe for scripting under ActiveX controls and plug-ins to Enable, as shown in Figure 4-5.
-
Page 15: Select The Play Mode
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S The login page is display when the control is loaded. 1.3.2 Select the play mode You can select VLC player to play the video, or select the plugin to play the video as shown in Figure 4-6,when you login to the web management system for the first time. - Page 16 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-8 Select destination location Step 4 Click “Next”, ready to install the plugin, as shown in Figure 4-9.
- Page 17 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-9 Ready to install Step 5 Click “Install” to install the plugin, as shown in Figure 4-10.
- Page 18 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-10 Installing Step 6 Click “Finish” , complete to install the plugin, as shown in Figure 4-11.
-
Page 19: In The Google, Firefox, Or Safari Browsers Watch Real-Time Video
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-11 Complete to install the plugin Step 7 Reopen the browser after installing. If the repair tips displayed when installing the control , please ignore the prompt, and continue the installation. -
Page 20: Setting Local Network Parameters
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S 1.4 Setting Local Network Parameters Description Local network parameters include: IP protocol IP address Subnet mask Default gateway Dynamic Host Configuration Protocol (DHCP) Preferred Domain Name System (DNS) server Alternate DNS server... - Page 21 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 1-2 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses [Setting method] an address length of 32 bits. Select a value from the drop-down list box.
-
Page 22: Fisheye Configuration
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Parameter Description Setting Set the maximum value of [Setting method] network transmission data Enter a value manually. packets. NOTE The MTU value is range from 800 to 1500, the default value is 1500, Please do not change it arbitrarily. - Page 23 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 1-3 Fisheye parameters Parameter Description Setting Video [Setting method] Select a value from the drop-down list box. [Default value] One-Channel Mount The following mount config are [Setting method] config...
-
Page 24: Control And Configure The Ptz
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Parameter Description Setting Fisheye Fisheye mode include: [Setting method] Mode Fisheye : Only one fisheye Select a value from image; the drop-down list box. Double panorama: Two panorama screen [Default value] 4PTZ: 4 PTZ districts. -
Page 25: Sensor Setting
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 1-14 PTZ Control area In the PTZ control area, you can perform the following operations: Slide the slider left or right beyond the PTZ rotation keys, you can adjust the PTZ rotation speed. -
Page 26: Time Segment
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 2-1 Sensor Setting interface Table 2-1 Sensor parameters description Parameter Description Full Screen It enlarges and displays the image in full screen. It is used for configure the parameter set of front-end Sensor images. -
Page 27: Image Setting
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Figure 2-2 Time Segment page Step 2 Choose Debug Model in the lower left corner to activate the sensor setting page. Step 3 Tick the Enable, then set the start time and end time. -
Page 28: Scene Mode
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 2-2 Image setting parameters description Parameter Description Configuration Method Brightness It indicates the total brightness of an [Setting method] image. As the value increases, the Drag the slider. image becomes brighter. -
Page 29: Exposure Setting
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 2-3 FFC mode parameters description Parameter Description Configuration Method [Configuration method] It indicates the working mode of a camera.. Select from the Outdoor: It applies to outdoor scenarios. Scene drop-down list Indoor: It applies to indoor scenarios. - Page 30 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 2-4 Exposure parameters description Parameter Meaning Configuration Method The exposure modes include: [Setting method] Select a value from Auto: The system performs auto the drop-down list. exposure based on the monitoring [Default value] environment.
-
Page 31: Wb Setting
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S 2.6 WB Setting Figure 5-6 shows the WB Setting interface. Figure 2-6 WB Setting interface Table 5-5 describes WB Setting parameters. - Page 32 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 2-5 WB Setting parameters description Parameter Meaning Configuration Method Mode It is adjusted based on [Setting method] application scenarios to Select a value from the drop- improve the fidelity of the down list.
-
Page 33: Daynight
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S 2.7 Daynight The day night mode settings vary based on device models. For details, see the following sections. Figure 5-7 shows the DayNight Mode interface. Figure 2-7 DayNight Mode interface... - Page 34 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 2-6 DNR parameters description Parameter Meaning Configuration Method It can be set to Auto, Day, Night or [Setting method] Setting Timing. Select a value from the Mode drop-down list.
- Page 35 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Parameter Meaning Configuration Method TRANSI.( It determines the night-to-day [Setting method] N->D) switching in auto mode. When the Drag the slider. system gain is smaller than the value [Default value] of this parameter, the system enters the day mode.
-
Page 36: Noise Reduction
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Parameter Meaning Configuration Method [Setting method] Select a value from the drop-down list. NTD Time Time of night to day. [Default value] 6:00 2.8 Noise Reduction Figure 5-8 shows the Noise Reduction interface. -
Page 37: Enhance Image
User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Parameter Meaning Configuration Method It is valid in auto noise [Setting method] filter mode. When the Drag the slider. parameter value is 0, the [Default value] noise filter is disabled. - Page 38 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Table 2-8 Enhance image parameters description Parameter Meaning Configuration Method It is used to display the foreground [Setting method] and background at the same time in Tick the WDR mode and the environment with a large drag the slider.
- Page 39 User Manual - Network Fisheye Camera - TKIP55F5S & TKIP125F5S Notes...
- Page 40 153, rue Michel Carré 95100 Argenteuil - FRANCE tel :+33 (0)1.30.76.30.30 - info@aasset-security.com - www.aasset-security.fr V.201910.01...
