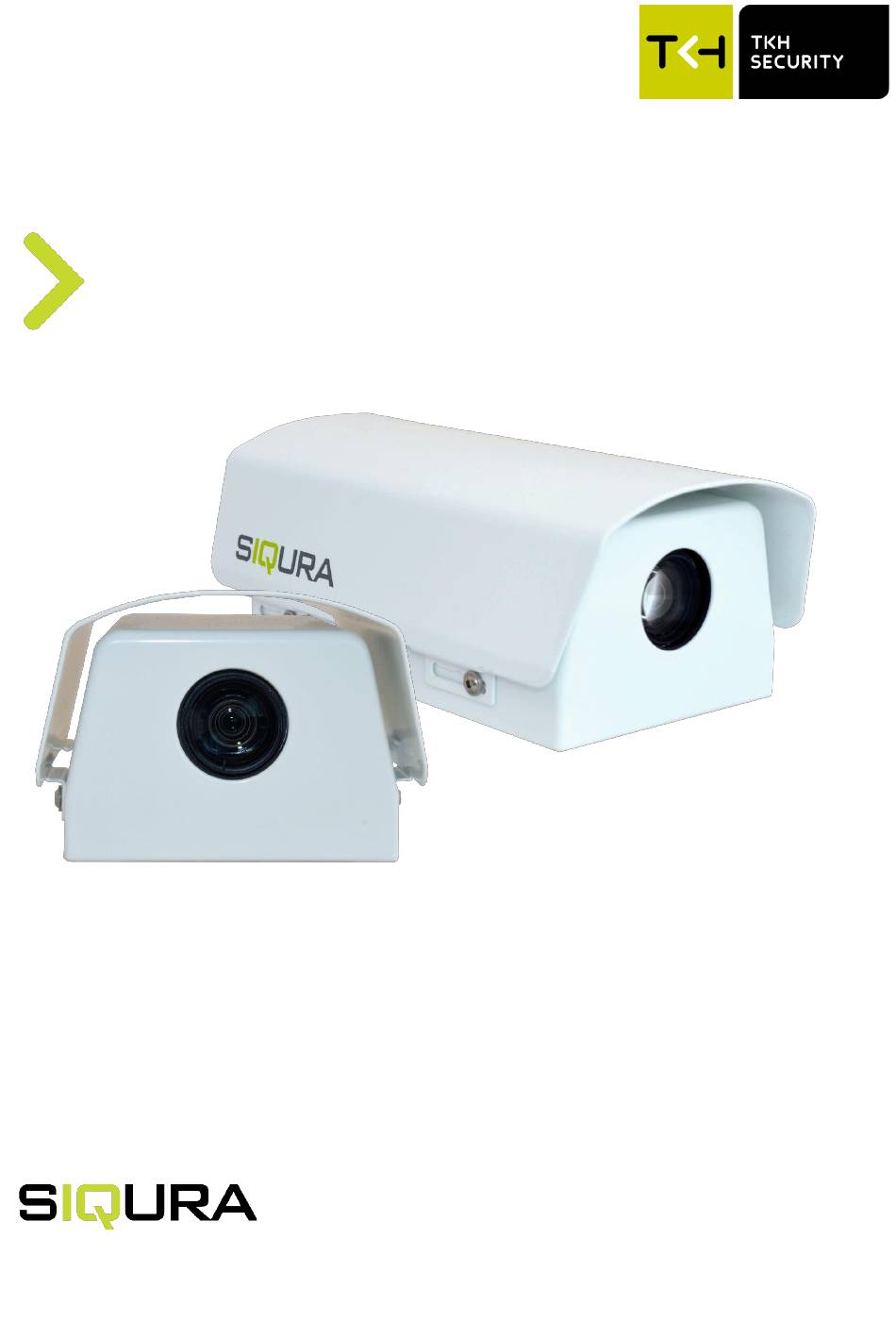

- Page 1 XCU3 Series Installation manual Rugged and reliable IP cameras for challenging environments Copyright © 2023 TKH Security. Version 1.0. TKH Security | Siqura XCU3 Series | Installation manual...
- Page 2 Any brand and product names mentioned in this manual are (registered) trademarks of their respective owners. Liability TKH Security accepts no liability for claims from third parties arising from improper use other than that stated in this manual. Although considerable care has been taken to ensure a correct and suitably comprehensive description of all relevant product components, this manual may nonetheless contain errors and inaccuracies.
- Page 3 TKH Security Proposal | RFP Name | RFP Number Document revisions V1.0 2023-06-05 PdK: Initial version TKH Security | Siqura XCU3 Series | Installation manual...
-
Page 4: Table Of Contents
About this manual ....................... 5 Models ..........................7 Preparations........................8 Before you continue ......................9 Install the unit ........................10 Cables and installation ...................... 11 Connectors (Power and I/O) ....................13 Maintenance ........................17 TKH Security | Siqura XCU3 Series | Installation manual... -
Page 5: About This Manual
Should you detect errors or inaccuracies in this manual, we would be grateful if you would inform us. We invite you to offer your suggestions and comments, Your feedback helps us to further improve our documentation. TKH Security | Siqura XCU3 Series | Installation manual... - Page 6 TKH Security Proposal | RFP Name | RFP Number Acknowledgement This product uses the open-source Free Type font-rendering library. The Open Source Libraries and Licenses document, available at http://tkhsecurity.com, gives a complete overview of open source libraries used by our video encoders and IP cameras.
-
Page 7: Models

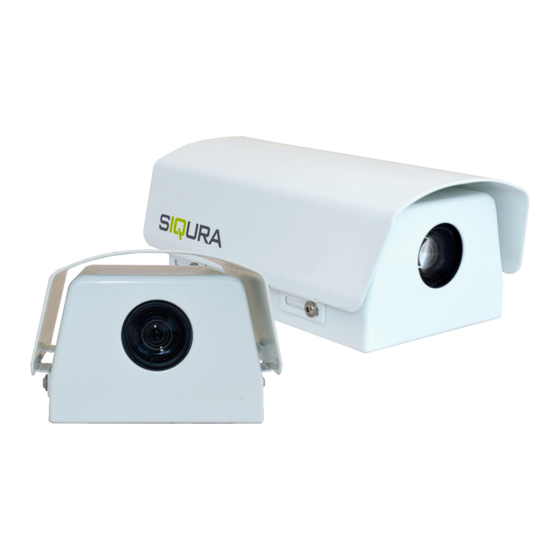

XCU Compact can be fitted with a low-light imager with 4x or 10x optical zoom lens, or a thermal imager. XCU Compact series XCU Fusion series TKH Security | Siqura XCU3 Series | Installation manual... -
Page 8: Preparations
The packaging materials can be recycled. If you discard the packaging, properly separate the materials and dispose of them at your local waste collection or recycling center. Observe the local waste disposal regulations. TKH Security | Siqura XCU3 Series | Installation manual... -
Page 9: Before You Continue
Connecting GND/Earth/PE to line or neutral may result in damaging the device and will void the warranty. When a fibre optical cable is used on the equipment it shall be suitably protected against mechanical damage. TKH Security | Siqura XCU3 Series | Installation manual... -
Page 10: Install The Unit
Make sure that the unit case is properly earthed. The Protective Earth (PE) connection is included in the 3p or 5p power connector. The minimum wire size is 0.75 mm2 copper stranded wire. TKH Security | Siqura XCU3 Series | Installation manual... -
Page 11: Cables And Installation
The installer is required to provide additional protection to reduce the overvoltage if the equipment is subject to transient overvoltages exceeding those for overvoltage category II. Ethernet cable: Shielded CAT5E S/FTP, wire size AWG24, solid or stranded, cable length up to 100m. TKH Security | Siqura XCU3 Series | Installation manual... - Page 12 TKH Security Proposal | RFP Name | RFP Number For PoE powering of the XCU cameras the Ethernet cable must comply with the IEEE 802.3at requirements for PoE+ (up to 25,5W power at the camera). This means the maximum cable resistance per pair set is limited to 12.5 Ohm. The recommended size AWG24 typically meets this requirement for cable lengths up to 100m.
-
Page 13: Connectors (Power And I/O)
2 = (L) 230VAC or (+) 24VDC/24VAC cable) Screw termination, Wire range 0.5 – 1.5 3 = (N) 230VAC or (-) 24VDC/24VAC Temperature range -40°C to +85°C UL approved E331608 Front view TKH Security | Siqura XCU3 Series | Installation manual... - Page 14 TKH Security Proposal | RFP Name | RFP Number 5p-Cable plug for power IP67 connector, size 7/8” Some special 24 Vac/PoE models are fitted with 2 relay outputs. These are equipped with a 5p power and I/O connector. In the table below you will find the cable plug details and the wiring diagram.
- Page 15 TKH Security Proposal | RFP Name | RFP Number RJ45 IP67 plug kit, for CAT6A, AWG24 By default the cameras are fitted with a IP67 Ethernet connector. The table below gives the cable plug details and wiring diagram. Standard RJ45 connector (8p)
- Page 16 TKH Security Proposal | RFP Name | RFP Number Dual LC Plug for Fiber IP67 connector The XCU3 models are also available with direct to fiber connection (1SM, 2SM, 1MM, and 2MM models). These models are fitted with a IP67 Dual LC connector. The table below gives the cable plug details and wiring diagram.
-
Page 17: Maintenance
Observe the applicable standards and safety instructions when you inspect, maintain or repair the equipment. Disconnect the power to the unit and contact TKH security support or the nearest service center whenever you detect damage or deformation to the equipment. - Page 18 TKH Security Proposal | RFP Name | RFP Number tkhsecurity.com Brands Our Brands © 2020, TKH Security. © 2023, TKH Security. TKH Security | Siqura XCU3 Series | Installation manual...
