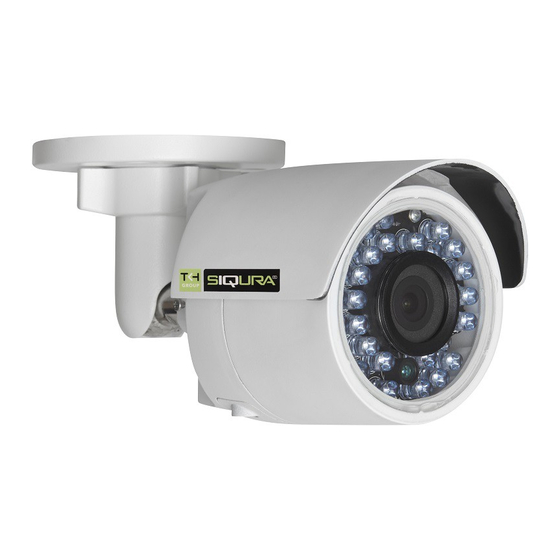

- Page 1 USER MANUAL Network Bullet Camera BL1002F4-EI/T V2017.1.001...
- Page 2 User Manual - Network Bullet Camera - BL1002F4-EI/T About this Manual This Manual is applicable to BL1002F4-EI/T Network Camera. The Manual includes instructions for using and managing the product. Pictures, charts, images and all other information here in after are for description and explanation only. The information contained in the Manual is subject to change, without notice, due to firmware updates or other reasons.
- Page 3 User Manual - Network Bullet Camera - BL1002F4-EI/T FCC compliance: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
- Page 4 User Manual - Network Bullet Camera - BL1002F4-EI/T 2012/19/EU (WEEE directive): Products marked with this symbol cannot be disposed of as unsorted municipal waste in the European Union. For proper recycling, return this product to your local supplier upon the purchase of equivalent new equipment, or dispose of it at designated collection points.
- Page 5 User Manual - Network Bullet Camera - BL1002F4-EI/T Warnings Follow these Cautions Follow these safeguards to prevent precautions to prevent serious injury or death. potential injury or material damage. Warnings ● In the use of the product, you must be in strict compliance with the electrical safety regulations of the nation and region.
- Page 6 User Manual - Network Bullet Camera - BL1002F4-EI/T ● Proper configuration of all passwords and other security settings is the responsibility of the installer and/or end-user. Cautions ● Make sure the power supply voltage is correct before using the camera.
- Page 7 User Manual - Network Bullet Camera - BL1002F4-EI/T ● While in delivery, the camera shall be packed in its original packing, or packing of the same texture. ● Regular part replacement: a few parts (e.g. electrolytic capacitor) of the equipment shall be replaced regularly according to their average enduring time.
-
Page 8: Table Of Contents
User Manual - Network Bullet Camera - BL1002F4-EI/T Table of Contents 1 Appearance Description ..............8 1.1 Overview of Type I Bullet Camera ........8 1.2 Overview of Type II Bullet Camera ........ 10 1.2.1 Installing the microSD Card ........ 12 1.2.2 Resetting the Camera ......... -
Page 9: Appearance Description
User Manual - Network Bullet Camera - BL1002F4-EI/T 1 Appearance Description 1.1 Overview of Type I Bullet Camera Figure 1-1 Type I Bullet Camera... - Page 10 User Manual - Network Bullet Camera - BL1002F4-EI/T Table 1-1 Description Description Description Mounting Base Lens Back Box Sun Shield Front Box Power Cable Reset Button GND Screw 10/100M Self-adaptive Ethernet Interface Type I camera does not support the function of Wi-Fi or SD card.
-
Page 11: Overview Of Type Ii Bullet Camera
User Manual - Network Bullet Camera - BL1002F4-EI/T 1.2 Overview of Type II Bullet Camera Figure 1-2 Type II Bullet Camera Table 1-2 Description Description Description Mounting Base microSD Card Slot Main Body Power Supply Interface... - Page 12 User Manual - Network Bullet Camera - BL1002F4-EI/T Description Description 10/100M Self-adaptive Sun Shield Ethernet Interface Lens PoE Cable Adjusting Nut GND Screw WPS/RESET Button This type of bullet camera supports PoE power supply. You can power the camera by connecting both DC 12V interface and the Ethernet interface.
-
Page 13: Installing The Microsd Card
User Manual - Network Bullet Camera - BL1002F4-EI/T WPS function and Reset function share the same button. The button works as a reset button only when you press it when the camera is powered on. 1.2.1 Installing the microSD Card Insert the microSD card into the microSD card slot. -
Page 14: Setting The Wps Protocol
User Manual - Network Bullet Camera - BL1002F4-EI/T WPS/RESET Figure 1-5 WPS/RESET Button 1.2.3 Setting the WPS Protocol A wireless router with the WPS function is required to enable the WPS function of the camera. Refer the steps below. Steps: Enable the WPS function of your router. - Page 15 User Manual - Network Bullet Camera - BL1002F4-EI/T WPS/RESET Figure 1-6 WPS/RESET Button You can also press the WPS button on the camera first and then enable the WPS function on the router to establish the connection. But the WPS function of the router must be turned on within 120s right after pressing the WPS/RESET button on the camera.
-
Page 16: Installation
User Manual - Network Bullet Camera - BL1002F4-EI/T 2 Installation Before you start: ● Make sure the device in the package is in good condition and all the assembly parts are included. ● The standard power supply is 12V DC or 24V AC, please make sure your power supply matches with your camera. -
Page 17: Installation Of The Bullet Camera
User Manual - Network Bullet Camera - BL1002F4-EI/T 2.1 Installation of the Bullet Camera Both wall mounting and ceiling mounting are suitable for the bullet camera. Wall mounting will be taken as an example in this section. You can take steps of wall mounting as a reference if ceiling mounting is adopted. - Page 18 User Manual - Network Bullet Camera - BL1002F4-EI/T Figure 2-2 Secure the Camera to the Ceiling 4. Connect the corresponding power/Video Output cables. 5. Adjust the surveillance angle. Adjusting Nut 0°~360° 0°~360° 0°~90° Figure 2-3 3-axis Adjustment 1). Loosen the adjusting nut.
- Page 19 User Manual - Network Bullet Camera - BL1002F4-EI/T 4). Rotate the camera [0° to 360°] to adjust the lens to the surveillance angle. 5). Tighten the adjusting nut to complete the installation.
-
Page 20: Installation Of Network Cable Water-Proof Jacket
User Manual - Network Bullet Camera - BL1002F4-EI/T 2.2 Installation of Network Cable Water-proof Jacket (Optional) Purpose: If the camera is installed outdoor, you can adapt the water-proof accessory for the network cable after the camera is secured on the installation surface. - Page 21 User Manual - Network Bullet Camera - BL1002F4-EI/T Align the snap and notch. i. Insert into ⑤ ④ ii. Secure with ⑥ ④ Camera Switch/Router Figure 2-5 Water-proof Accessory Installation Steps: 1. Feed the plugless network cable ⑦ through the lock nut ⑥, waterproof rubber gasket ⑤...
- Page 22 User Manual - Network Bullet Camera - BL1002F4-EI/T 4. Insert the network plug ③ into the camera’s network interface socket①. 5. Insert the water-proof rubber gasket ⑤ into the waterproof endcap ④, and secure lock nut ⑥ with the water-proof endcap ④.
-
Page 23: Setting The Network Camera Over The Lan
User Manual - Network Bullet Camera - BL1002F4-EI/T 3 Setting the Network Camera over the Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. -
Page 24: Activating The Camera
User Manual - Network Bullet Camera - BL1002F4-EI/T 3.2 Activating the Camera You are required to activate the camera first by setting a strong password for it before you can use the camera. Activation via Web Browser, Activation via software, and Activation via Client Software are all supported. -
Page 25: Activation Via The Software
User Manual - Network Bullet Camera - BL1002F4-EI/T 3. Create a password and input the password into the password field. STRONG PASSWORD RECOMMENDED– We highly recommend you create a strong password of your own choosing (using a minimum of 8 characters, including... - Page 26 User Manual - Network Bullet Camera - BL1002F4-EI/T Figure 3-4 the Interface Note: The software supports activating the camera in batch. Please refer to the User Manual of the software for details. 3. Create a password and input the password in the password field, and confirm the password.
-
Page 27: Modifying The Ip Address
User Manual - Network Bullet Camera - BL1002F4-EI/T 4. Click OK to save the password. You can check whether the activation is completed on the popup window. If activation failed, please make sure that the password meets the requirement and try again. - Page 28 User Manual - Network Bullet Camera - BL1002F4-EI/T Figure 3-5 Modify the IP Address 4. Input the password to activate your IP address modification. The batch IP address modification is supported by the software.
-
Page 29: Accessing Via Web Browser
User Manual - Network Bullet Camera - BL1002F4-EI/T 4 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and... - Page 30 User Manual - Network Bullet Camera - BL1002F4-EI/T 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in.
- Page 31 Zuidelijk Halfrond 4 - P.O. Box 415 2801 DD Gouda - 2800 AK Gouda - The Netherlands www.tkhsecurity.com...
