TKH security BL950 Quick Start Manual

BL950

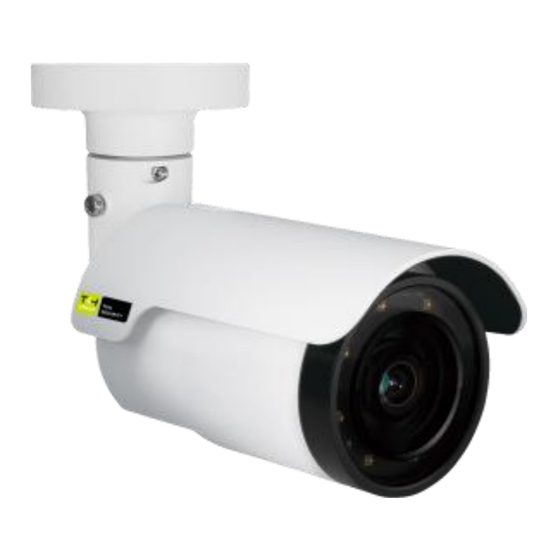

5MP Network Bullet Camera
Quick Start Guide

Unpack

M5 security
screw(x1)
M4 Self-tapping screw
and screw anchors(x5)
BL950
Security Torx
Subject to modification. Actual product and accessories may differ in appearance.

Connector Definition

No. Connector Definition
Network and PoE connections. Contact TKH
1 RJ45/PoE
Security for a compatible PoE injector.
2 Audio I/O Two-way audio transmission.
3 BNC For analogue video output
Alarm I/O connection. Do not connect external
4 Alarm I/O
power to the alarm I/O connector of the camera.
5 Power & RS-485 For DC12V/AC24V power connection
Press the button with a proper tool for at least 20
6 Reset Button
seconds to restore the system.
Insert the microSD card into the card slot to store
7 microSD Card Slot videos and snapshots. Do not remove the
microSD card when the cam era is powered on.
Table 1 Connector definition
© TKH Security B.V. 2021 | Vision 1 (20210601) | BL950 QSG
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
CAUTION INSTALLATION SHALL BE PERFORMED BY
QUALIFIED PERSONNEL ONLY. INSTALLATION SHALL BE IN
ACCORDANCE WITH LOCAL PROCEDURES. THE CAMERA
CONTAINS BATTERIES. DO NOT REPLACE IN RISK OF
EXPLOSION.
2-pin power terminal
BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW
block
OF THE RISK OF EXPLOSION. LE REMPLACEMENT DES
PILES
D'EXPLOSION. DISPOSE OF USED BATTERIES ACCORDING
TO
BATTERIES
INSTRUCTIONS..
5-pin alarm
terminal block
FOR "PoE" INPUT CONNECTION, USE ONLY WITH UL
LISTED I.T.E WITH "PoE" OUTPUT. DESCRIPTION FOR THE
"PoE" IS INTENDED TO BE CONNECTED TO NOT EXPOSED
(OUTSIDE
STATEMENT IN INSTALLAION INSTRUCTIONS.
Quick Start Guide POUR LA CONNEXION
UNIQUEMENT AVEC UN I.T.E. LISTE AVEC UNE SORTIE
"PoE". LA DESCRIPTION DE "POE" EST CONÇUE POUR
ÊTRE CONNECTÉE À DES RÉSEAUX OR NON ÉNONCÉS
(INSTALLATIONS
INSTRUCTIONS D'INSTALLATION DE L'INSTALLATION.
Power Connector
1
2
❑ The green link LED is lit when there is a good network
connection.
❑ The orange network LED flashes to indicate that there
is network activity.
IN SOME CASES, AN ETHERNET CROSSOVER
CABLE MAY BE NEEDED WHEN CONNECTING
THE CAMERA DIRECTLY TO THE PC. CHECK THE
STATUS OF THE LINK INDICATOR AND THE
ACTIVITY INDICATOR LEDS. IF THE LEDS ARE
UNLIT, CHECK THE LAN CONNECTION.

Installation Notices

NE DOIT PAS ÊTRE APPLIQUÉ AU RISQUE
THE INSTRUCTIONS. METTRE AU REBUT
USAGÉES CONFORMÉMENT
PLANT) NETWORKS OR EQUIVALENT
DâÇÖENTREE "PoE", UTILISER
EXTÉRIEURES), DANS

Camera Cabling

Pin Definition
1 DC12V + / AC24V
2 DC12V - / AC24V
Table 2 Pin definition

Connectors

LES
AUX
Figure 1 Camera Connectors
LES
Figure 2 Default button and microSD card slot

Alarm I/O and RS-485 Connection

See the diagram and the pin definition below for the
alarm I/O connection.
Figure 2 Diagram of Alarm I/O connection pins
Pin Definition
1 Alarm In 2+
2 Alarm In -
3 Alarm In1+
Table 3 Pin definitions
6
7
1
2
3
4
5
6
7
Pin Definition
4 Alarm Out1 -
5 Alarm out1+
