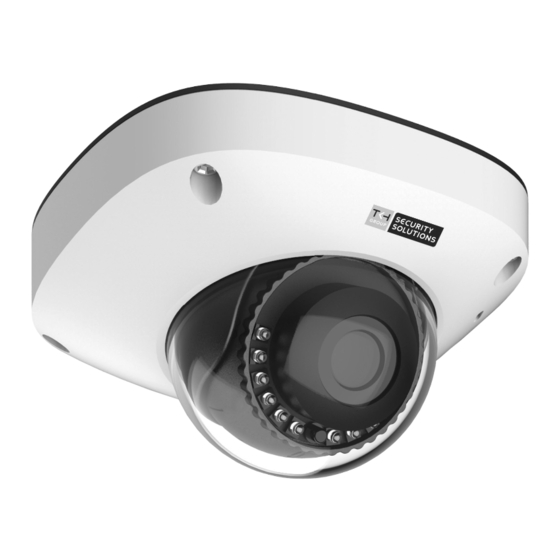

TKH security TKIM25F2S User Manual

Network mini-dome
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User manual
Network mini-dome
TKIM25F2S / TKIM45F2S
TKIM25F2SM12 / TKIM45F2SM12
tkhsecurity.fr
V.201910.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TKIM25F2S and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TKH security TKIM25F2S

Summary of Contents for TKH security TKIM25F2S

  • Page 1 User manual Network mini-dome TKIM25F2S / TKIM45F2S TKIM25F2SM12 / TKIM45F2SM12 tkhsecurity.fr V.201910.01...
  • Page 2 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Precautions Fully understand this document before using this device, and strictly observe rules in this document when using this device. If you install this device in public places, provide the tip "You have entered the area of electronic surveillance" in an eye- catching place.
  • Page 3 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Strictly conform to local electrical safety standards and use power adapters that are marked with the LPS standard when installing and using this device. Otherwise, this device may be damaged. Use accessories delivered with this device. The voltage must meet input voltage requirements for this device.

  • Page 4: Special Announcement

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 The lens window of the camera is designed to be applicable to an outdoor environment. The window is coated with durable coating material, but may require frequent cleaning. When you found lens image degradation or excessive accumulation of pollutants, you should clear up the window in a timely manner.
  • Page 5 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 1.1 Login and Logout ......................1.2 Main Page layout ......................1.3 Change the Password ..................... 1.4 Browse Video ......................... 1.4.1 Install Plugins....................1 1.5 Setting Local Network Parameters ................1 2.1 Sensor Setting Interface ....................1 2.2 Time Segment .......................

  • Page 6: Login And Logout

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 1.1 Login and Logout You must use Internet Explorer 8 or a later version to access the web management system; otherwise, some functions may be unavailable. Login system Step 1 Open the Internet Explorer, enter the IP address of IP camera (default value: 192.168.0.121) in the address box, and press Enter.

  • Page 7: Main Page Layout

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 logout To logout of system, click in the upper right corner of the main page, the login page is display after you log out of the system. 1.2 Main Page layout On the main page, you can view real-time video, set parameter, Video parameter, Video control, and logout of the system.

  • Page 8: Change The Password

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Element Description Change password You can click to change the password. Sign Out You can click to return to the login page. Stream Choose stream mode from drop-list. Only used for dome cameras, set parameters.

  • Page 9: Browse Video

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 1-3 Modify Password dialog box The change password page will be displayed if you don’t change the default password when you login the system for the first time. User need to wait at least three minutes after changing password, and then restart the device.
  • Page 10 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 In the display dialog box, click Add, as shown in Figure 1-4. Figure 1-4 Add the a trusted site Step 2 In the Internet Explorer, choose Tool > Internet Options > Security > Customer...

  • Page 11: Install Plugins

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 The login page is display when the control is loaded. 1.4.1 Install Plugins You will be prompted with a message “Download and install the new plugin” will show as in Figure 1-6, when you login to the web management system for the first time.
  • Page 12 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 1-7 Local Network page Step 2 Set the parameters according to Table 1-2. Table 1-2 Local network parameters Parameter Description Setting IP Protocol IPv 4 is the IP protocol that uses [Setting method] an address length of 32 bits.
  • Page 13 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Description Setting Subnet Mask Subnet mask of the network [Setting method] adapter. Enter a value manually. [Default value] 255.255.255.0 Default Gateway This parameter must be set if [Setting method] the client accesses the device Enter a value manually.

  • Page 14: Time Segment

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 2.1 Sensor Setting Interface Operation Procedure Step 1 On the Internet Explorer interface or the client software interface, select and right-click the surveillance image to the set, as shown in Figure 2-1.

  • Page 15: Image Setting

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-2 Time segment interface Operation Procedure Step 1 Click in the lower left corner of Sensor Setting, and choose Debug Mode. Step 2 Tick Enable. Step 3 Set the Start Time...
  • Page 16 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-3 Image interface Table 2-2 lists the image setting parameters. Table 2-2 Image setting parameters Parameter Description Setting Brightness It indicates the total brightness of an image. As [Setting the value increases, the image becomes brighter.

  • Page 17: Scene Mode

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 2.4 Scene Mode Figure 2-4 shows the scene mode interface. Figure 2-4 Scene mode interface for IP camera Table 2-3 describes the Scene mode parameters. Table 2-3 Scene mode parameters description Parameter...
  • Page 18 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Description Configuration Method Aisle Mode The image rotates 90 degrees clockwise when aisle mode is [Setting method] enabled. Tick the Freeze status. [Default value] Disable 2.5 Exposure Figure 2-5 shows the Exposure interface.
  • Page 19 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Table 2-4 Exposure parameters description Parameter Meaning Configuration Method The exposure modes include: [Setting method] Auto: The system performs auto exposure Select a value from the based on the monitoring environment. drop-down list.
  • Page 20 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-6 WB Setting interface Table 2-5 describes WB Setting parameters. Table 2-5 WB Setting parameters description Parameter Meaning Configuration Method Mode It is adjusted based on application [Setting method] scenarios to improve the fidelity of Select a value from the drop-down list.
  • Page 21 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Meaning Configuration Method Red Gain It indicates the gain applied to red [Setting method] channels. As the value increases, the Drag the slider. color temperature becomes lower. [Default value] This parameter is valid when Manual Mode is set to Customized.
  • Page 22 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-8 DayNight Mode (2) interface Figure 2-9 DayNight Mode (3) interface...
  • Page 23 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-10 DayNight Mode (4) interface Table 2-6 describes DayNight Mode parameters.
  • Page 24 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Table 2-6 DNR parameters description Parameter Meaning Configuration Method D/N Setting Mode It can be set to Auto, Day, Night or [Setting method] Timing. Select a value from the drop-down list. Auto mode...

  • Page 25: Noise Reduction

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Meaning Configuration Method TRANSI.(N- It determines the night-to-day [Setting method] switching in auto mode. When the >D)(dB) Drag the slider. system gain is smaller than the value [Default value] of this parameter, the system enters the day mode.
  • Page 26 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-11 Noise Reduction interface(manual) Figure 2-12 Noise Reduction interface(auto) Table 2-7 describes DNR parameters. Table 2-7 DNR parameters description Parameter Meaning Configuration Method [Configuration method] Select from the drop-down list 2D NR Reduce noise of image.

  • Page 27: Enhance Image

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Meaning Configuration Method [Configuration method] Select from the drop-down list 3D NR Reduce noise of image. [Default value] Auto It is valid in auto noise filter mode. [Setting method] When the parameter value is 0, the Drag the slider.
  • Page 28 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 2-13 Enhance image interface Table 2-8 Enhance image parameters description Parameter Meaning Configuration Method [Setting method] It is used to display the foreground and background Tick the WDR mode at the same time in the environment with a large and drag the slider.

  • Page 29: Zoom Focus

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Meaning Configuration Method The shakes and visual angle of image will reduce when the camera shakes slightly and the anti-shake is [Setting method] enable. Tick the Anti-shake Anti-shake mode. It provides a clearer view of an image in the fogged environment when Defog is enabled.
  • Page 30 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Meaning Configuration Method It is used to trigger auto focus. [Setting method] Auto Focus Once Click the button. The lens of camera returns to the [Setting method] initial position. Lens Initialization...

  • Page 31: Local Network

    User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 3.1 Local Network Description Local network parameters include: IP protocol IP address Subnet mask Default gateway Dynamic Host Configuration Protocol (DHCP) Preferred Domain Name System (DNS) server Alternate DNS server Procedure Step 1 Choose Device Configuration >...
  • Page 32 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Figure 3-1 Local Network page Step 2 Set the parameters according to Table 1-2. Table 3-1 Local network parameters Parameter Description Setting IP Protocol IPv4 is the IP protocol that uses an address length [Setting method] of 32 bits.
  • Page 33 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Parameter Description Setting IP Address Device IP address that can be set as required. [Setting method] Enter a value manually. [Default value] 192.168.0.120 Subnet Mask Subnet mask of the network adapter. [Setting method] Enter a value manually.
  • Page 34 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Table 4-1 describes the common faults and solutions. Table 4-1 Common faults and solutions Common Fault Possible Cause Solution When you enter the The certificate is not Click Continue to this website (not device IP address in installed.
  • Page 35 User Manual - Network Mini Dome - TKIM25F2S/TKIM45F2S/TKIM25F2SM12/TKIM45F2SM12 Common Fault Possible Cause Solution After the IP camera is The browser cache is To delete the browser cache, proceed as follows: upgraded, the web not deleted. (Internet Explorer 8 is used as an example.) management system (1) Open Internet Explorer.
  • Page 36 153, rue Michel Carré 95100 Argenteuil - FRANCE tel :+33 (0)1.30.76.30.30 - info.fr@tkhsecurity.com - tkhsecurity.fr V.201910.01...
