TKH security FD950 Quick Start Manual

FD950

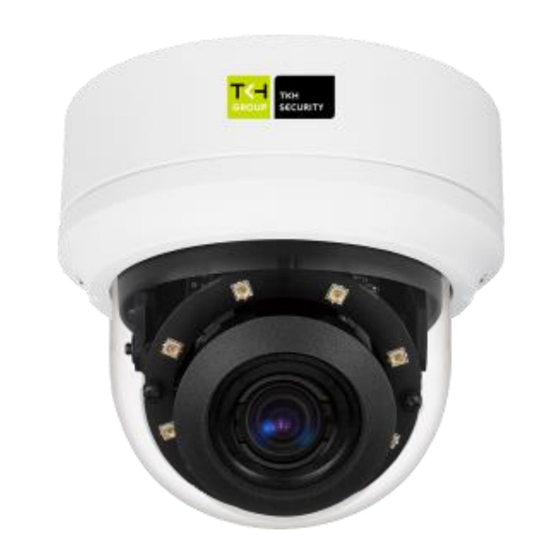

5MP Vandal Fixed Dome Camera
Quick Start Guide

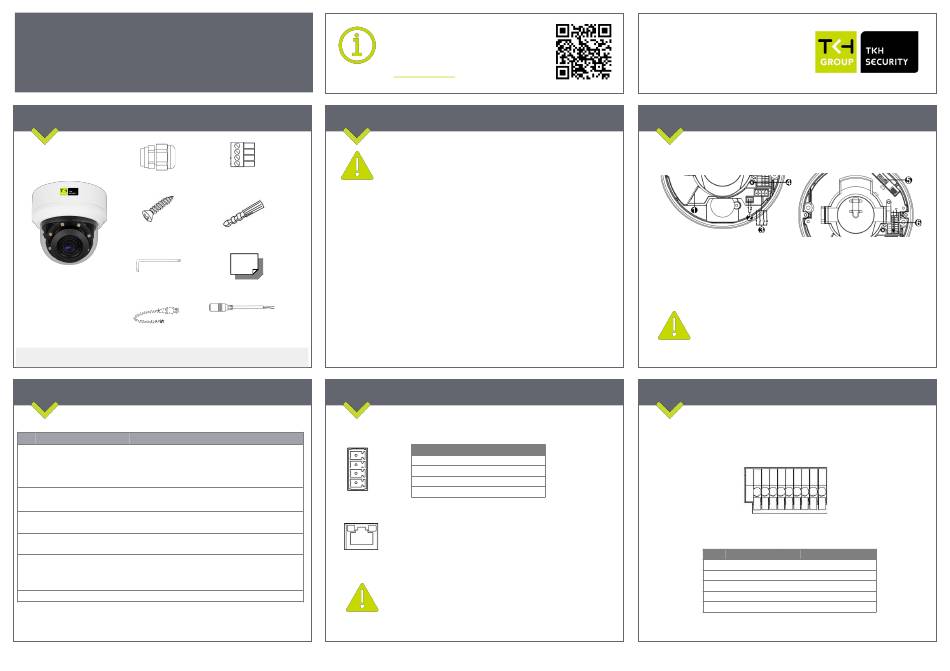

Unpack
Cable Gland
M4 Self-tapping
screw(x2)
FD950
Security Torx
BNC Connector
Subject to modification. Actual product and accessories may differ in appearance.
Connector Definition
No. Connector Definition
RJ-45 Port
(Contact Siqura for a
1 For network and PoE connections
compatible PoE
injecter.)
2 BNC For analogue video output
Power(DC 12V/AC
3 Power Connection
24V)
Press the button with a proper tool for at
4 Reset Button
least 20 seconds to restore the system.
Insert the SD card into the card slot to store
5 Micro SD Card Slot videos and snapshots. Do not remove the
SD card when the camera is powered on.
6 Alarm & Audio I/O Alarm I/O & Audio connection
Table 1 Connector definition
© TKH Security B.V. 2021 | Vision 1 (20210531) | FD950 QSG
4-pin power terminal
block
Plastic Screw
Anchor(x2)
Quick Start Guide
DC 12V Power
Connector
Power Connector (DC 12V/AC24V)
+ 1
- 2
+ 3
- 4
❑ The green link LED is lit when there is a good network
❑ The orange network LED flashes to indicate that there
Find additional manuals, the
datasheet, the EU Declaration of
Conformity, and the latest firmware
for this product at:
tkhsecurity.com
Installation Notices
CAUTION INSTALLATION SHALL BE PERFORMED BY
QUALIFIED PERSONNEL ONLY. INSTALLATION SHALL BE IN
ACCORDANCE WITH LOCAL PROCEDURES. THE CAMERA
CONTAINS BATTERIES. DO NOT REPLACE IN RISK OF
EXPLOSION.
BATTERY REPLACEMENT SHALL NOT BE APPLIED IN VIEW
OF THE RISK OF EXPLOSION. LE REMPLACEMENT DES
PILES NE DOIT PAS ÊTRE APPLIQUÉ AU
D'EXPLOSION. DISPOSE OF USED BATTERIES ACCORDING
TO THE INSTRUCTIONS. METTRE AU REBUT
BATTERIES USAGÉES CONFORMÉMENT
INSTRUCTIONS..
FOR "PoE" INPUT CONNECTION, USE ONLY WITH UL
LISTED I.T.E WITH "PoE" OUTPUT. DESCRIPTION FOR THE
"PoE" IS INTENDED TO BE CONNECTED TO NOT EXPOSED
(OUTSIDE PLANT) NETWORKS OR EQUIVALENT
STATEMENT IN INSTALLAION INSTRUCTIONS.
POUR LA CONNEXION DâÇÖENTREE "PoE", UTILISER
UNIQUEMENT AVEC UN I.T.E. LISTE AVEC UNE SORTIE
"PoE". LA DESCRIPTION DE "POE" EST CONÇUE POUR
ÊTRE CONNECTÉE À DES RÉSEAUX OR NON ÉNONCÉS
(INSTALLATIONS EXTÉRIEURES), DANS
INSTRUCTIONS D'INSTALLATION DE L'INSTALLATION.
Camera Cabling
Pin Definition
1 AC24V +
2 AC24V -
3 DC12V +
4 DC12V -
Table 2 Pin definition for power connection
connection.
is network activity.
IN SOME CASES, AN ETHERNET CROSSOVER
CABLE MAY BE NEEDED WHEN CONNECTING
THE CAMERA DIRECTLY TO THE PC. CHECK THE
STATUS OF THE LINK INDICATOR AND THE
ACTIVITY INDICATOR LEDS. IF THE LEDS ARE
UNLIT, CHECK THE LAN CONNECTION.
Connectors
RISQUE
LES
AUX
Figure 1 Camera Connectors
IT IS NOT RECOMMENDED TO CONTINUOUSLY
(24/7) RECORD WITH THE MICRO SD CARD, AS
THE CAMERA MAY NOT SUPPORT LONG-TERM
CONTINOUS DATA READ/WRITE. CONTACT THE
MANUFACTURER OF THE MICRO SD CARD FOR
INFORMATION REGARDING THE RELIABILITY
LES
AND THE LIFE EXPECTANCY.
Alarm I/O and RS-485 Connection
See the diagram and the pin definition below for the
audio and alarm I/O connection.
1 2 3 4 5 6 7 8 9
Figure 2 Diagram of I/O connection pins
Pin Definition
1 Audio In L
2 Audio In R
3 GND
4 Audio Out L
5 Audio Out R
Table 3 Pin definitions for Alarm I/O and RS-485 connection
Pin Definition
6 Alarm Out +
7 Alarm Out -
8 Alarm In +
9 Alarm In -
