*47981500*

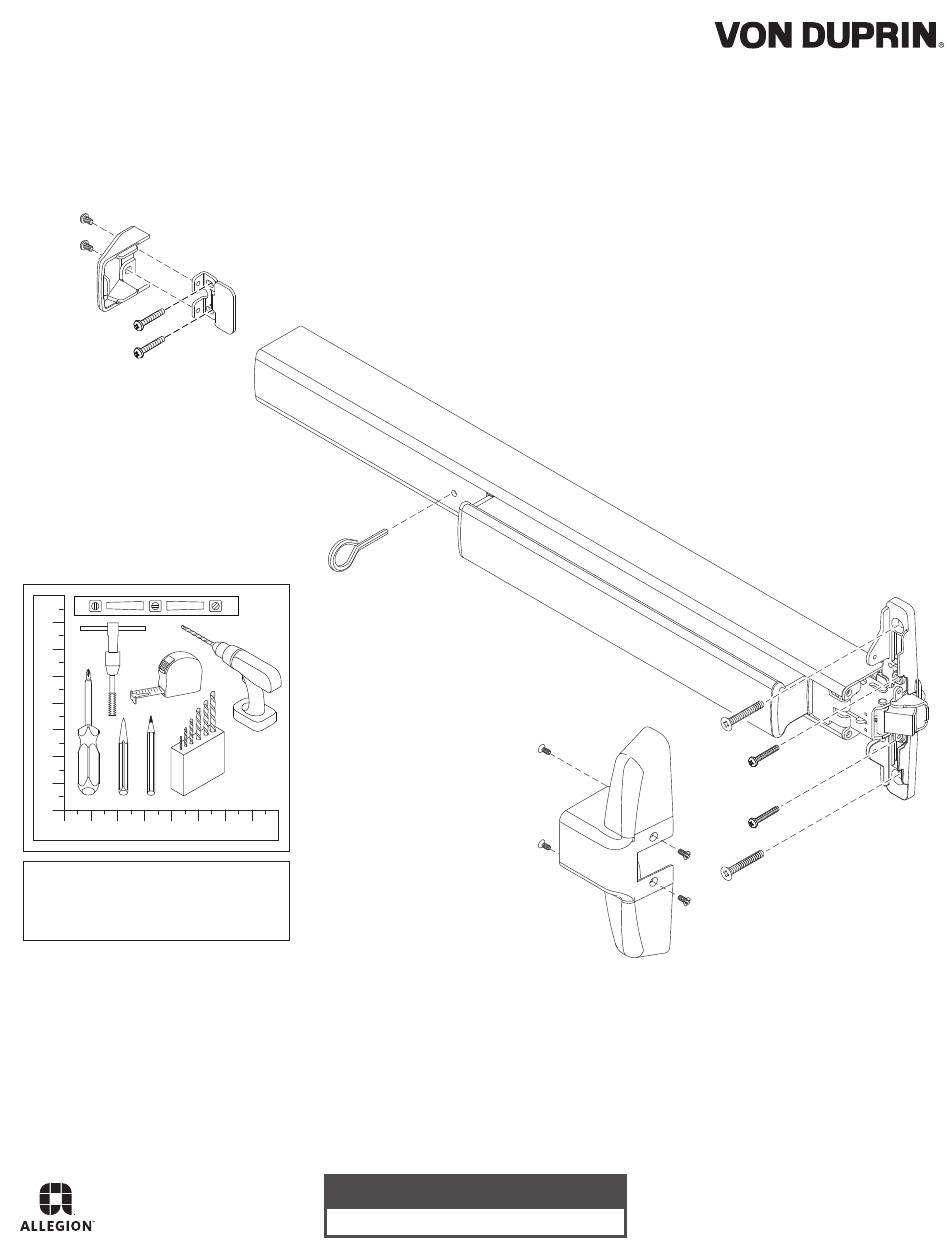

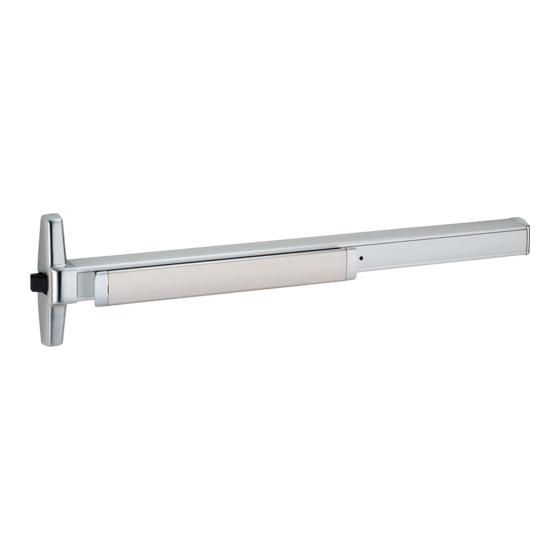

75 Series
47981500
Rim Exit Device
Installation Instructions
Devices covered by these instructions:
75 Rim Exit Device
75-F Rim Exit Device
CD75 Rim Exit Device
QEL75/-F Rim Exit Device
Dogging Key
(use with non-fire devices
to lock down pushbar)
Special tools needed:
#10-24 and 1/4"-20 tap
Drill bits: #7, #25, 1/8", 1/4", 5/16", 13/32"
1/2"
Customer Service
© Allegion 2024
Printed in U.S.A.
1-877-671-7011
www.allegion.com/us
47981500 Rev. 04/24-a
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allegion Von Duprin 75 Series
Summary of Contents for Allegion Von Duprin 75 Series
- Page 1 QEL75/-F Rim Exit Device Dogging Key (use with non-fire devices to lock down pushbar) Special tools needed: #10-24 and 1/4"-20 tap Drill bits: #7, #25, 1/8", 1/4", 5/16", 13/32" 1/2" Customer Service © Allegion 2024 Printed in U.S.A. 1-877-671-7011 www.allegion.com/us 47981500 Rev. 04/24-a...
- Page 2 Hurricane rated exit device requirements (when used with approved Allegion door applications) Application Single door, standard strike Mullion Double door, standard strike 4954 or KR4954 1654 or KR1654 1606 5654 (Wind Only) 5754 1408 75-F 299F 9954 or KR9954 499F...
-
Page 3: Screw Chart
SCREW CHART Screw Application Device Subassembly Trim mount or sex bolts: ¹⁄4 -20 x1” (25 mm) ³⁄4 ” (44 mm) door ¹⁄4 -20 x 1- ¹⁄2 ” (38 mm) ¹⁄4 ” (57 mm) door Metal door surface mount #10-24 x 1” (25 mm) (Yellow) ¹⁄4 #10 x 1... - Page 4 Draw horizontal device and strike center lines ( C L ). Install strike using two screws only at this time. Panic Device Install strike 1/16” past door side of stop * 39¹³⁄16” (101.1 cm) from finished floor For double doors with a 1439 Strike (standard) mullion and strike already installed, use existing...
- Page 5 If using a 1439 strike, install wear strip. If not, go to Prepare lock side of door for device and trim. step 5. See trim instructions for Door pull side door preparation. side Wear strip See template for drill and cut-out information A.
- Page 6 If necessary, cut device. Install hinge stile mounting bracket. Prepare device for cutting Mark and prepare 2 mounting holes Mounting Tape bracket flush Remove anti-rattle 1/4” drill clip inside 13/32” drill Cover plate outside (flush to pushbar) 13/32” drill thru Pushbar Cut device square Secure mounting bracket...
-
Page 7: 499F Strike Installation
Install 2 support screws and center case cover Install 2 support screws and center case cover End cap Remove protective film from pushbar For fire devices only use #8-32 machine thread screw. Center 2 support case cover screws 499F STRIKE INSTALLATION 1. -
Page 8: Optional Equipment
OPTIONAL EQUIPMENT CD (Cylinder Dogging) Option Undog... -
Page 9: Frame Preparation
1439 Strike 1439 Strike Frame Preparation RHR shown #25 Drill (LHR opposite) #10-24 tap 1/8” Drill pilot 1” deep 7/16” 1-9/16” to 7/16” Blade stop face of door... - Page 10 299/299F/1606 Strike Template 299F 1606 Strike Door Door Door Mullion Stop Stop Cut paper along this line and place on door stop against edge of door (see picture below) #25 Drill #10-24 tap 1/8” Drill pilot 1” deep Template 1-1/16” 1-1/16”...
- Page 11 75 Rim device Line X-X is a reference line for trim and exit device alignment. C L of device Line X-X shown here should Template correspond to line X-X in the trim installation instructions 1/4” Holes - 2 places #25 drill inside #10-24 tap 1/8”...
- Page 12 75 Rim device Line X-X is a reference line for trim and exit device alignment. Line X-X shown Device Template here should correspond to line X-X in the trim installation instructions 1/4” Holes - 2 places #25 drill inside #10-24 tap Cut-out device side only 1/8”...
