- Page 1 Opendor IF-241 Door Fitting RE-305000xx...
-
Page 2: Table Of Contents
Table of contents General information......................Short description....................... Scope of delivery ...................... Target group ......................Intended use ......................Safety........................Installation and configuration..................... Installation......................... Configuration ......................Operation ..........................Opening doors ......................Activating/deactivating the permanently open mode ..........Maintenance, cleaning, and disinfection ................Maintenance, cleaning, and disinfection.............. -
Page 3: General Information

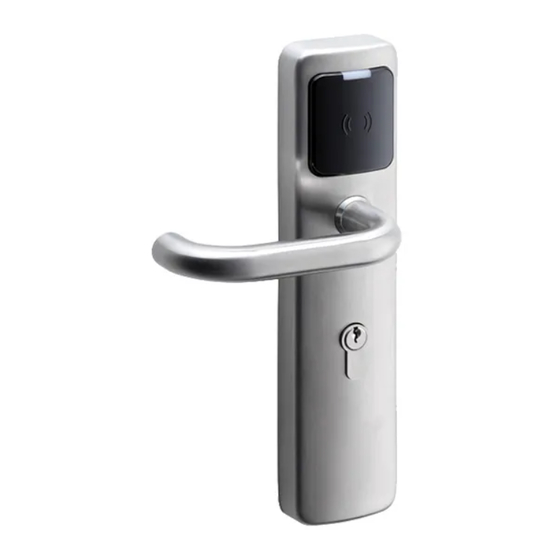

1 General information 1 General information 1.1 Short description The electronic door fitting is the ideal solution for cost-effective, uncomplicated and wireless compliance with current security standards for a wide range of applications. IF-241 Door Fitting offers stability through precisely manufactured mechanics and electronics as well as highest data security through the integrated Secure Element. -
Page 4: Target Group
1 General information 1.3 Target group This document is solely intended for experts and people trained in electrical engineering. Only perform the actions described in this document if you belong to this target group. Interflex is not liable for any damages caused by improper installation or initial operation. 1.4 Intended use The devices of the IF-241 Door Fitting series are fitted to designated doors intended for integration into an access control system. -
Page 5: Installation And Configuration
2 Installation and configuration Batteries CAUTION Risk of explosion due to incorrect battery type Inserting the wrong type of battery can cause an explosion. Only use the batteries specified in the technical specifications. NOTICE Batteries can be a fire hazard Batteries may pose a fire or burn hazard if handled incorrectly. -
Page 6: Configuration
2 Installation and configuration To install IF-241 Door Fitting: Test 2.2 Configuration The configuration and the management of the components are described in a separate documentation: card Opendor components Configuration with card set: Interflex Offline Components Configuration with the DoorManager software: in the corresponding technical manual ©... -
Page 7: Operation
3 Operation The software DoorManager and the technical manual can be found on our FTP server: https://ftpservice.interflex.de user: CD-Software password: 14gBD00ktH96 Opendor components Technical manual for IF-4041 Gateway IF-6040 Online help The technical manual can be found on our website: www.interflex.de/en/downloads 3 Operation The following sections describe the basics of operation. -
Page 8: Activating/Deactivating The Permanently Open Mode
3 Operation LEDs and tone indicate the status of the booking: Visual signal Audible signal Description Blue Error reading the credential Green Configurable with door Authorized credential initialization card (sound during motor flag) Reading error Credential unauthorized, the reason can be retrieved from DoorManager under Diagnostics ... -
Page 9: Maintenance, Cleaning, And Disinfection
4 Maintenance, cleaning, and disinfection 4 Maintenance, cleaning, and disinfection Maintenance work and firmware updates put a great load on the batteries. If in doubt, replace the batteries before performing these tasks. 4.1 Maintenance, cleaning, and disinfection The devices are made of top quality stainless steel. This material is featured by a smooth, mat- finished surface and a high resistance against wear and tear, corrosion and abrasion. -
Page 10: Battery Replacement
4 Maintenance, cleaning, and disinfection 4.3 Battery replacement Low battery warning levels Offline components indicate the low battery level during booking in three stages: Description Visual signal Audible signal Stage 1 Stage 2 Stage 3 We recommend changing the battery at stage 2. If the batteries are empty, LED signaling and bookings are no longer possible. - Page 11 4 Maintenance, cleaning, and disinfection 1. Insert the battery replacement tool and remove the battery case 2. Remove old batteries and insert new batteries in accordance with the regulations 3. Push the battery case back in until it clicks into place Changing the batteries in tubular frame fittings 1.
-
Page 12: Reset (Cold Boot)
4 Maintenance, cleaning, and disinfection 1. Loosen the battery case cover on the inside and open the battery case. 2. Remove old batteries and insert new batteries in accordance with the regulations 3. Close battery case and install cover again ... -
Page 13: Technical Specifications
5 Technical specifications 5 Technical specifications Power supply Battery 3 lithium batteries, type AA 1.5 V Battery life Approx. 200,000 actuations depending on the technology used at 20°C, up to 12 years on standby Equipment Modes of operation Online wireless, offline NoC Interfaces Bluetooth 5 to Gateway Credential reader... -
Page 14: Disposal
The original manual is in German. Other languages are translations of the original manual. Version: 08.22 Interflex Datensysteme GmbH +49 711 1322 - 0 Epplestraße 225 (Haus 3) interflex.info@allegion.com 70567 Stuttgart, Germany www.interflex.com © 2022 Interflex Datensysteme GmbH | All specifications are subject to change without notice.
