1461 Series
Door controls

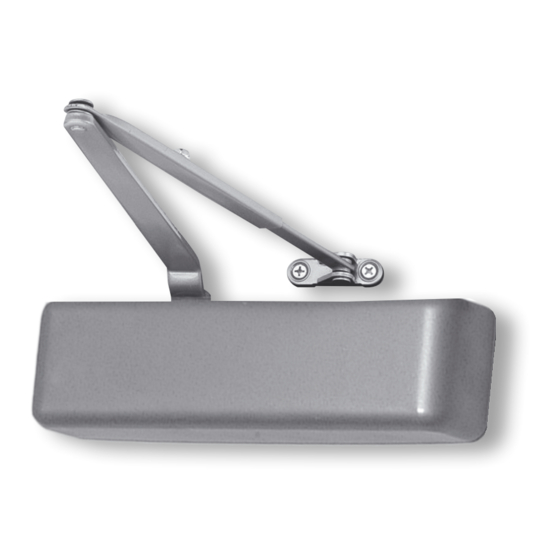

The LCN 1461 Series is a non-handed surface mounted
closer designed for maximum versatility. A wide choice
of options, mounting accessories and ease of installation
make this a fully universal closer.
The LCN 1461 Series has been designed to be used on
aluminium, hollow metal or wood swinging commercial
interior/exterior doors and is ideally suited for hospitals,
nursing homes, hostels, shopping centres, commercial
buildings, hotels, educational
applications.
C 169
and institutional
Fire Rated: Tested on fire door assemblies in accordance with
Australian Standards, refer fire door manufacturer for specific
approval details
Features
•
•
Universal, fully reversible, non-handed door closer
Closer cylinder constructed of high strength cast
•
iron for increased durability
•
Tested to 2,000,000 cycles
Fully adjustable 1-6 spring strength to suit door size
•
and site conditions
•
Factory set to strength 3
Standard closer offers 3 installation options
- Regular (pull side)
- Top jamb (push side)
•
- Parallel arm (push side)
Independent adjustment valves for adjusting
•
backcheck, closing and latching speeds
All adjustment valves are concealed behind the
•
cover to prevent tampering
Joints in arms and shoe brackets adapt to uneven
•
mounting surfaces
Stick-on template for fast, accurate installation.
•
Cuts installation time in half
Closers installed according to LCN installation
instructions require minimal periodic maintenance
•
or adjustments
Cush-N-Stop ® function has a built in stop
incorporated into the arm to prevent damage to
the closer, door or frame in the event of an abrupt
•
stop
The 30 year warranty provides specifiers and users
with assured quality and performance
