Allegion Brio Quick Run 120 Manual

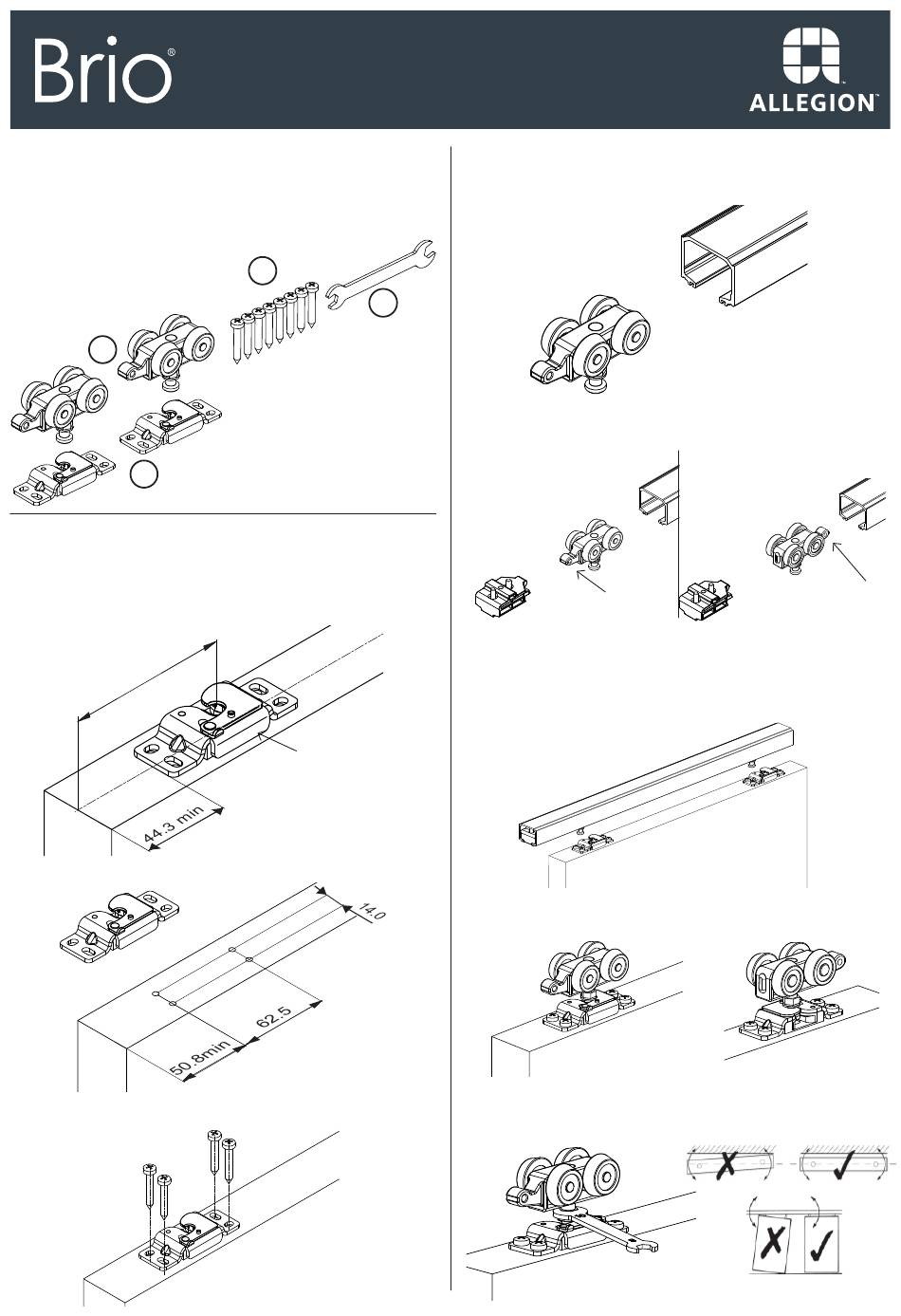

Pack Contents:
1. 2 x Hanger and Bolt
2. 2 x Mounting brackets
3. 8 x Fixing screws
4. 1 x Spanner
1
2
1. Panel Preparation
(a) Use bracket as template to mark the hole position on
panel.
Make sure the 2 brackets are in the same
orientation.
m i n
8 2
(b) Pre-drill the pilot holes for 10G screws.
(c) Fix bracket with mounting screws provided.
Quick Run 120: Hanger 57JNP
for Quick Fix Installation
3
4
This side to
face out
2. Hardware Installation
(a) Insert hanger with bolt into the track.
(b) If using 120CS clip stops: please ensure correct
orientation of hanger to engage the 120CS

3. Attach Panel to Hanger
(a) Carefully lift the door panel with brackets, lining up
the opening of the bracket with the bolt on hangers.
(b) Locate the hanger bolt into the bracket opening until
the locking lever clips into the locked position.
(c) Adjust the height using the spanner provided.
Clockwise will lower the panel, and anti-clockwise
will raise the panel.

