CTC Union IPS-803GSM-LL Quick Installation Manual

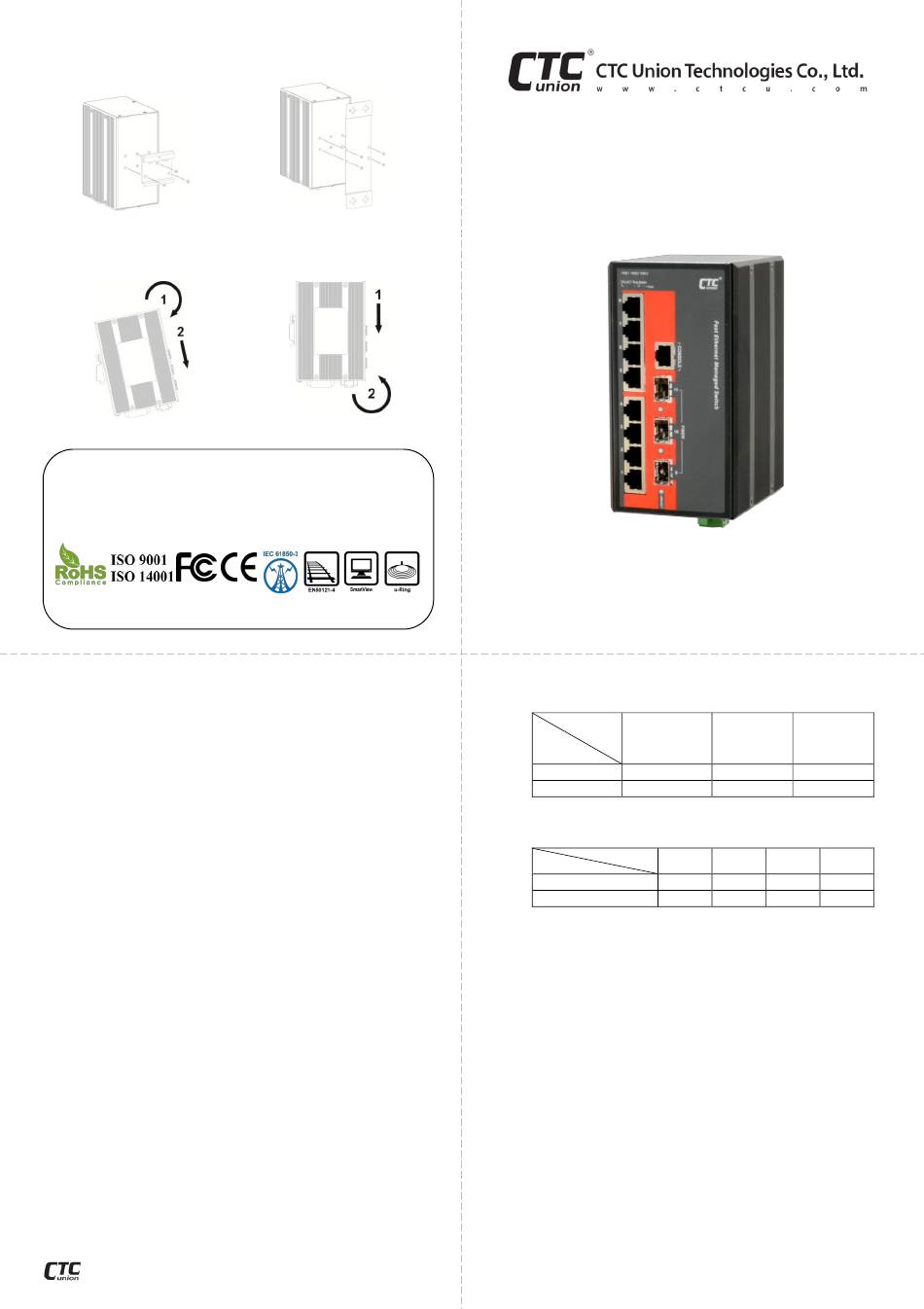

Installation
The switch comes with both wall mount and DIN rail hardware
brackets. When installing the DIN rail bracket, be sure to correctly
align the orientation pin.
Figure 11. DIN Rail
The switch with DIN Rail bracket has a steel spring in the upper
rail of the bracket. This spring is compressed for mounting and
un-mounting by applying downward force.
Figure 13. Mounting
CTC Union Technologies Co., Ltd.
Far Eastern Vienna Technology Center
(Neihu Technology Park)
8F, No. 60, Zhouzi St., Neihu District,
Taipei 114, Taiwan
To download this QIG or a more complete user manual, please visit
http://www.ctcu.com/Industrial/
© 2015 CTC Union Technologies Co., Ltd.
All trademarks are the property of their respective owners.
Technical information in this document is subject to change without notice.
Introduction
IPS-803GSM-LL & IPS-803GSM-HL are industrial grade Fast
Ethernet managed switches that are designed to meet demands
of power station systems and are fully compliant with IEC 61850-3
and IEEE 1613 requirements. The switches provide a wide variety
of redundant mechanisms to increase the reliability of network
communications such as redundant and isolated power supplies,
STP/RSTP/MSTP, and ITU-T G.8032 Ethernet Ring Protection
Switching. Housed in rugged DIN rail or wall mountable
enclosures, these switches are designed for harsh environments
and are also suitable for many military and utility market
applications where environmental conditions exceed commercial
product specifications.
Features
 Support isolated Low Voltage 24/48VDC and High Voltage
AC/DC (110/220 VAC/VDC) redundant power inputs
 IP30 rugged metal housing
 Wide temperature range -40°C~85°C
 Support many advanced Ethernet L2 functions
 Console, Telnet (ssh), Web and SNMP management
 UL60950-1, CE, FCC certification
 IEC61850-3, IEEE1613 certified for power substation
Specifications
Ethernet Interface
 Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX)
 RJ-45 (shielded) Ports: 8 ports
 Speed: 10/100M (Auto)
Optical Interface
 Standards: IEEE802.3u (100Base-FX), 802.3z (1000Base-X)
 3 ports, SFP based with DDMI
 Speed: 100/1000M (Manual)
Switch Features
 Store & Forward Switch
 Supports IEEE802.3x Flow Control
 Auto MDI/MDI-X
 Duplex: Full/Half (Auto-negotiation per IEEE802.3u)
 Switching Fabric: 7.6Gbps (Non-blocking)
 Packet Buffer: 256Mbytes
 MAC Table: 8K
 MTU: 64~9600 bytes
www.ctcu.com
Figure 12. Wall Mount
Figure 14.Un-mounting
T +886-2-26591021
F +886-2-26590237
E sales@ctcu.com
- 7 -
- 1 -
Quick Installation Guide
IPS-803GSM-LL
IPS-803GSM-HL
Industrial Grade Fast Ethernet Managed Switches for Power
Substation
sales@ctcu.com
Specifications (cont.)
Power
 Power Supply: (* N/A indicates Not Available)
Input
Isolated Low
Power
Voltage 24/48
VDC (18~72VDC)
Model
IPS-803GSM-LL 2
IPS-803GSM-HL 2
 Reverse Polarity Protection: Yes
 Dual Power Inputs: Yes
 Connector: Removable terminal block
 Power Consumption:
Input Voltage
24VDC
Model
IPS-803GSM-LL 8W
IPS-803GSM-HL 8W
Mechanical
 Water & Dust Proof: IP30 Protection
 Dimensions: 106 mm (D) x 82 mm (W) x 152 mm (H)
 Mounting: DIN-Rail, Wall Mount (Kits included)
 Weight: IPS-803GSM-LL－885g, IPS-803GSM-HL－1085g
Environmental
 Operating Temperature : -40°C~85°C
 Storage Temperature: -40°C~85°C
 Humidity: 5%~95% (Non-condensing)
Certifications
 EMC: CE, FCC
 EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A,
CE EN55022 Class A
 EMS (Electromagnetic Susceptibility) Protection Level:
 EN61000-4-2 (ESD) Level 4, Criteria B
 EN61000-4-3 (RS) Level 4, Criteria A
 EN61000-4-4 (EFT) Level 4, Criteria A
 EN61000-4-5 (Surge) Level 4, Criteria B
 EN61000-4-6 (CS) Level 4, Criteria A
 EN61000-4-8 (PFMF, Magnetic Field) Level 5, Criteria A
 Safety: UL60950-1
 Power Station: IEC61850-3, IEEE1613
 Railway Traffic: EN50121-4
 Shock: EN60068-2-27
 Freefall: EN60068-2-32
 Vibration: EN60068-2-6
Isolated High Isolated High
Voltage Voltage
110/220 VAC 110/220 VDC
(88~264VAC) (85~300VDC)
N/A* N/A*
1 1
48VDC 110VAC 220VAC
9.2W N/A N/A
9.2W 7.3W 7W
V1.0
