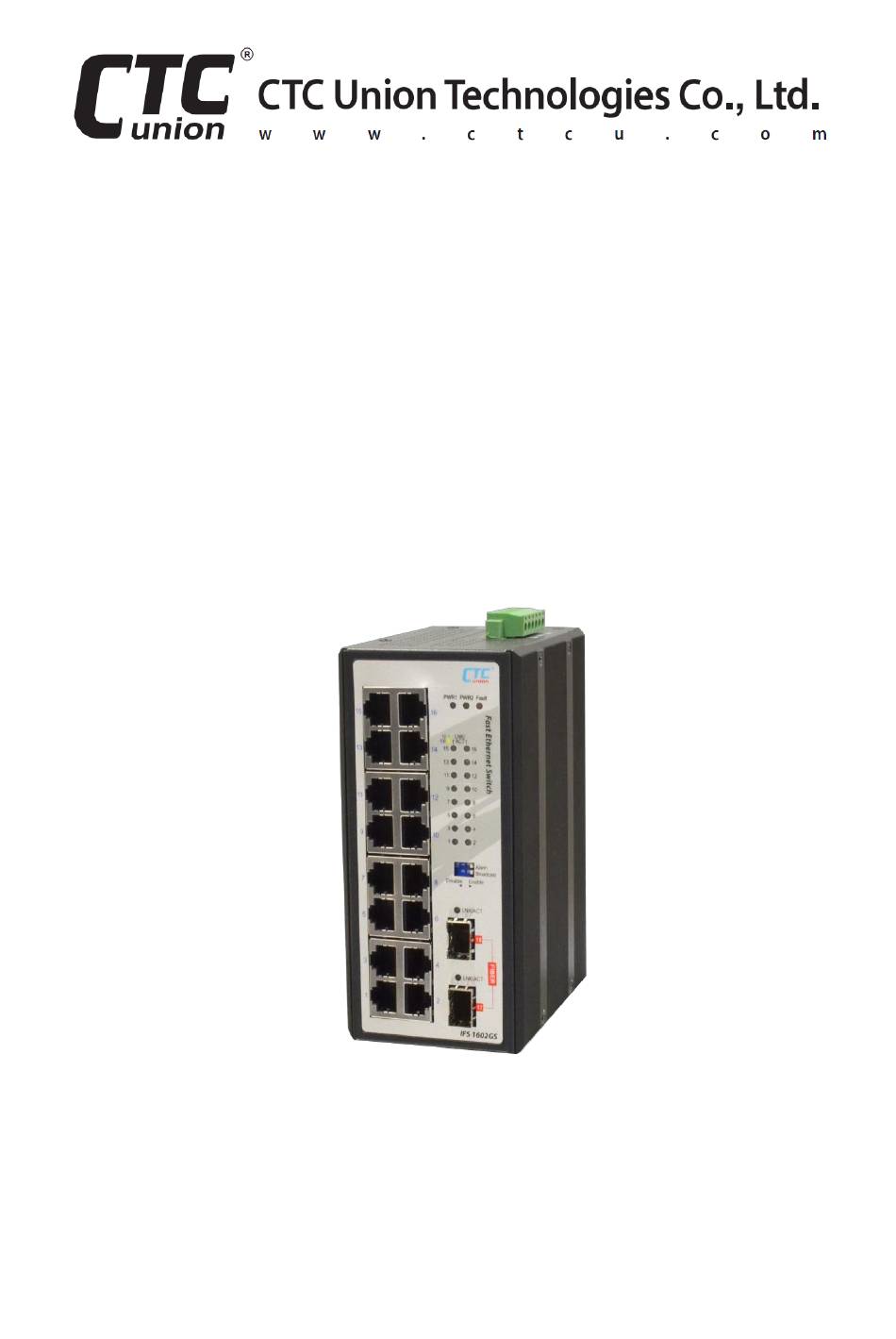

- Page 1 Quick Installation Guide IFS-1602GS IFS-1602GS-E 16 x 10/100Base-TX + 2 x 1000Base-X SFP Switch (Hardened) sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 .................... 6 THERNET NTERFACE ......................6 PTICAL ....................6 WITCH EATURES ......................6 OWER ...................... 7 ECHANICAL ....................7 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ..................7 Panels ................... -
Page 5: Introduction
Introduction IFS-1602GS & IFS-1602GS-E are unmanaged industrial grade Fast Ethernet switches that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such as industrial networking and intelligent transportation systems (ITS) and are also suitable for many... -
Page 6: Specifications
Specifications Ethernet Interface • Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX) • RJ-45 (shielded) Ports: 16 ports • Speed: 10/100M (Auto) Optical • Standards: 802.3z (1000Base-X) • SFP-Based Slots: 2 slots • Speed: 1000M Switch Features • Store & Forward Switch • Supports IEEE802.3x Flow Control •... -
Page 7: Mechanical
• Dimensions: 106 mm (D) x 72 mm (W) x 152 mm (H) • Mounting: DIN-Rail, Wall Mount (Optional) • Weight: 820g Environmental • Operating Temperature: -10°C~60°C (IFS-1602GS); -40°C~75°C (IFS- 1602GS-E) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications •... -
Page 8: Panels

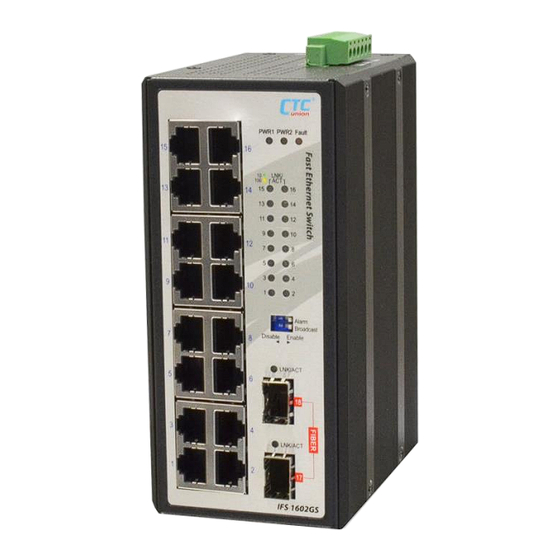

Panels Figure 2. Top Panel Figure 1. Front Panel Description Fast Ethernet ports 1~16 SFP slot 17 & 18 DIP Switch Power 1, Power 2 & Fault LEDs Fast Ethernet LNK/Act LEDs Fiber optic LEDs Terminal block for power inputs & alarm relay Grounding connection... -
Page 9: Lan And Fiber Ports
LAN and Fiber Ports IFS-1602GS-(E) switches have 16 electrical LAN ports (labeled 1~16) and 2 SFP-based fiber ports (labeled SFP 17~18) on the front panel. The LAN ports utilize shielded RJ-45 connectors that support 10/100M; while the fiber SFP ports support 1000M. -
Page 10: Recommended Power, Alarm, Ground Wiring Scheme
Recommended Power, Alarm, Ground Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device. -
Page 11: Alarm Relay Connection
Alarm Relay Connection The alarm relay contact can be wired into an alarm circuit which senses an alarm condition when the contact is broken. The alarm relay is normally closed when there is no alarm condition. The alarm conditions are user programmable through management to include power, link faults or other fault conditions. -
Page 12: Led Indicators
LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 PWR1/ input terminal connection. Green PWR2 PWR1/PWR2 is not connected. One of the power inputs has fault condition (Alarm DIP switch must be enabled). Fault Amber Normal operation without faults. Alarm DIP switch is disabled. -
Page 13: Installation
Installation The switch can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 8. DIN Rail Figure 9. - Page 14 Version Date Description 2020/7/31 Use new document format Revise spec.
