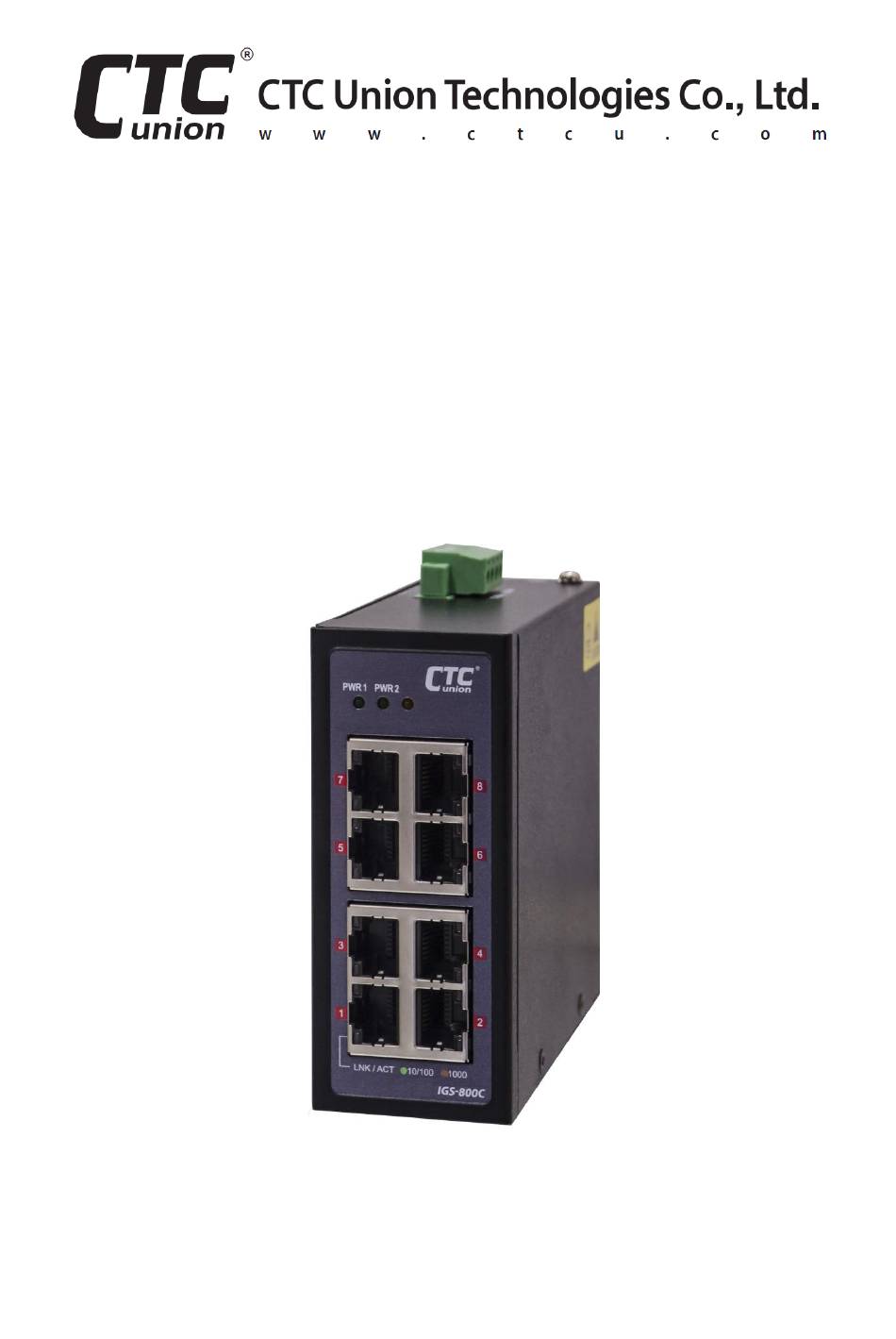

- Page 1 Quick Installation Guide IGS-800C IGS-800C-E 8 x GbE RJ-45 Compact-Sized Switch (Hardened) sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
- Page 4 Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Specifications ................6 ..................6 THERNET NTERFACE ......................6 OWER ....................6 ECHANICAL ....................6 NVIRONMENTAL ....................7 ERTIFICATIONS MTBF (MIL-HDBK-217) ................... 7 Panels ................... 8 Recommended Power & Ground Wiring Scheme ...... 9 DC P ..................
- Page 5 Introduction IGS-800C-(E) are unmanaged industrial grade Gigabit switches that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh environments, such industrial networking intelligent transportation systems (ITS) and are also suitable for many military and utility market applications where environmental conditions exceed commercial product specifications.
- Page 6 Fanless Design Dimensions: 100 mm (D) x 42 mm (W) x 115 mm (H) Installation Method: DIN Rail & Wall Mounting (Optional accessory) Weight: 710g Environmental Operating Temperature: -10°C~60°C (IGS-800C); -40°C~70°C (IGS-800- Humidity: 5%~95% (Non-condensing)
- Page 7 Certifications EMC: CE (EN55024, EN55032) EMI (Electromagnetic Interference): FCC Part 15 Subpart B Class A, CE Railway Traffic: EN50121-4 Immunity for Heavy Industrial Environment: EN61000-6-2 Emission for Heavy Industrial Environment: EN61000-6-4 EMS (Electromagnetic Susceptibility) Protection Level: ...

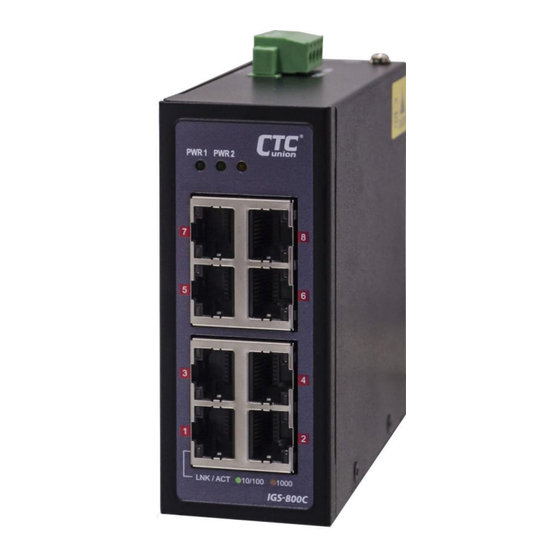

- Page 8 Panels Index Description RJ-45 Ethernet Ports (1~8) Power LED Indicators 10/100/1000 Link/Act LED Indicators Power Terminal Block Grounding Screw Figure 1. Front Panel Figure 2. Top Panel...
- Page 9 Recommended Power & Ground Wiring Scheme DC Power Connection A removable terminal block on the top panel provides power source connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device.
- Page 10 Earth Grounding Connection An earth grounding connection hole is provided on the top panel with an earth ground sign next to it. Grounding the device can help to release leakage of electricity to the earth safely so as to reduce injuries from electromagnetic interference (EMI).
- Page 11 Installation The switch can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 5. DIN Rail Figure 6.
- Page 12 LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green connection. PWR2 PWR1/PWR2 is not connected. Lit when the LAN connected speed is 10/100M. Green Blinking when there is Ethernet Blinking traffic. LINK/ACT Lit when the LAN connected speed is 1000M.
- Page 13 Version Date Description 2020/3/18 Preliminary version. -Revise weight info.
