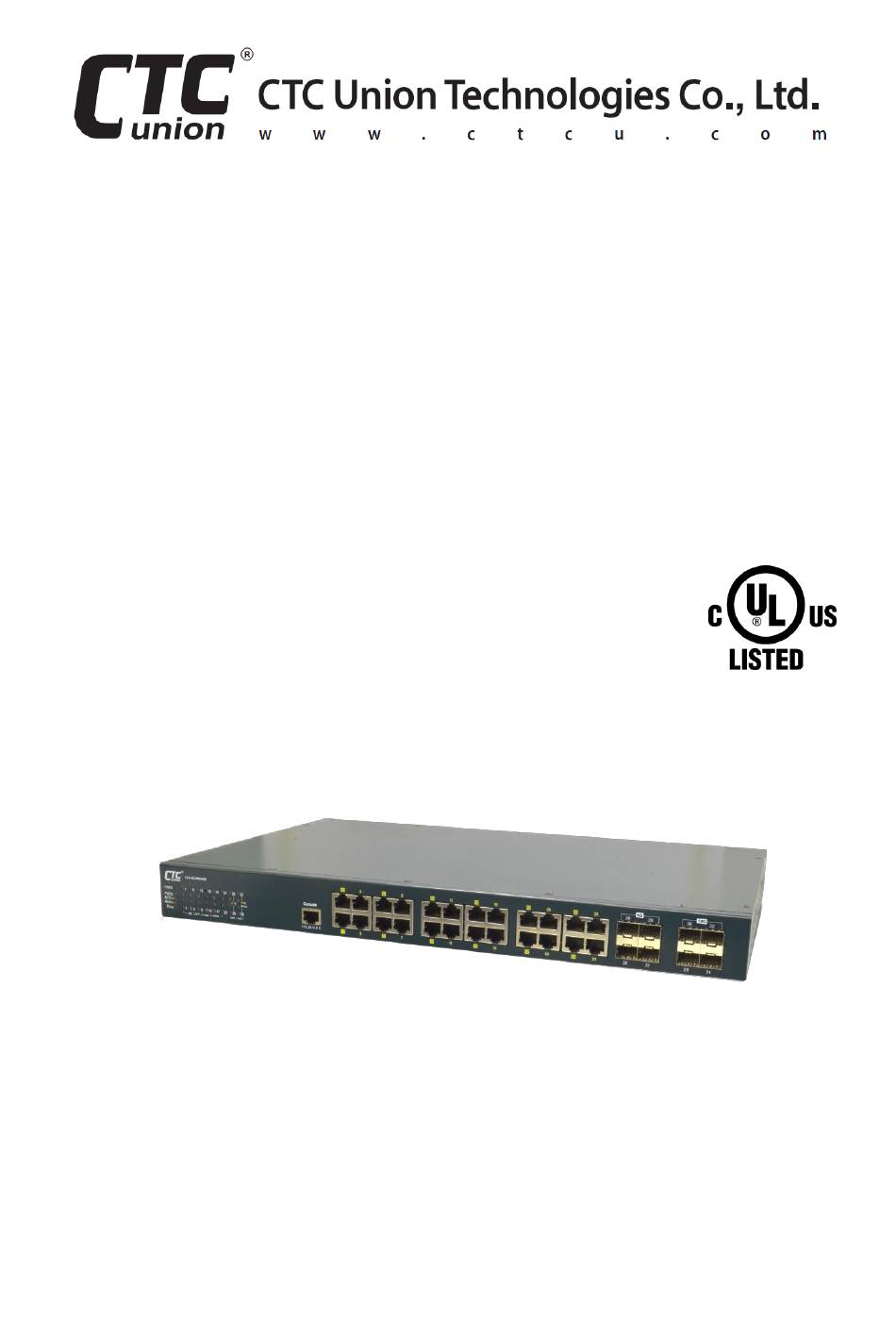

- Page 1 Quick Installation Guide ICS-G24044X 24 x 10/100/1000Base-T(X) + 4 x 100/1000Base-X SFP + 4 x 1/2.5/10GBase-X SFP+ Managed Core Switch sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2022 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Command Line Interface (CLI) ........6 ..................6 ONSOLE ONNECTION /SSH C ..................7 ELNET ONNECTION Access to Web-Based Management Interface ......8 Specifications ................9 .................... -
Page 5: Introduction

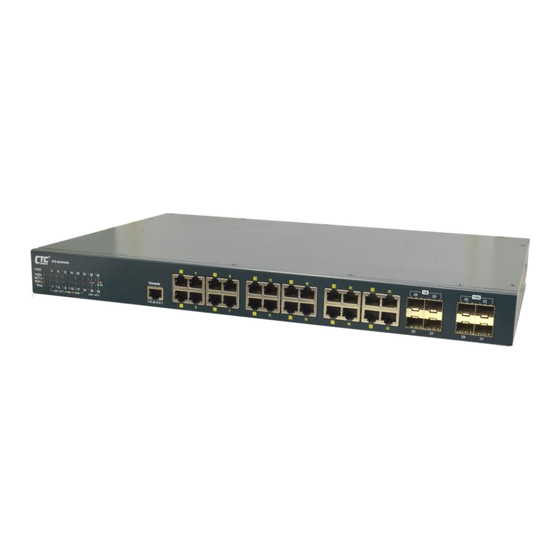

Introduction ICS-G24044X are industrial grade managed core switches with 24 x 10/100/1000Mbps RJ-45 + 4 x 100/1000Mbps SFP and 4 x 1/2.5/10Gbps SFP+. Housed in rugged enclosures, these switches are designed for harsh environments where environmental conditions exceed commercial product specifications, such as industrial networking or intelligent transportation systems (ITS) and are also suitable for many Smart City, surveillance, and intelligent traffic control systems. -
Page 6: Access To Command Line Interface (Cli)
Access to Command Line Interface (CLI) ICS-G24044X models are managed Gigabit switch devices. Initial configuration (assignment of IP address) may be accomplished via the RS-232 console and a PC or laptop running terminal emulation software or via RJ45 Ethernet port running Telnet or SSH. -
Page 7: Telnet/Ssh Connection
Telnet/SSH Connection To use Command Line Interface (CLI), you can also choose to access the device through a Telnet/SSH connection via TCP/IP network over Ethernet ports. For initial operation, use the default TCP/IP settings (10.1.1.1) to login to the device. Default TCP/IP settings: IP Address: 10.1.1.1 Subnet Mask: 255.255.255.0... -
Page 8: Access To Web-Based Management Interface
Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your web browser. Then, a standard login prompt will appear depending on the type of browser used. -
Page 9: Specifications
Specifications Ethernet Interface Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T) RJ-45 (shielded) Ports: 24 ports Speed: 10/100/1000M (Auto) GbE Optical Interface Standards: IEEE802.3u (100Base-FX), 802.3z (1000Base-X) SFP Slots: 4 Speed: 100/1000Mbps (Manual) dual speed ... -
Page 10: Mechanical
Mechanical Water & Dust Proof: IP30 Protection Dimensions: 280 mm (D) x 440 mm (W) x 44 mm (H) Mounting: 19" Rack Mounting Weight: 4.755 kg (AA Model), 4.51kg (AD Model), 4.26kg (DD Model) Environmental Operating Temperature: -40°C~60°C ... -
Page 11: Panels
Panels Figure 1. Front Panel Figure 2. Rear Panel with Two DC (DD Model) Power Supplies Figure 3. Rear Panel with Two AC (AA Model) Power Supplies Figure 4. Rear Panel with 1 AC + 1 DC (AD Model) Power Supplies Description Description UTP RJ-45 ports... -
Page 12: Lan And Fiber Ports
LAN and Fiber Ports ICS-G24044X managed core switches have 24 electrical LAN ports (labeled 1~24) and 8 fiber ports (SFP/SFP+ based, labeled 25~32) on the front panel. The LAN ports that utilize shielded RJ-45 connectors support 10/100/1000Mbps speed; while the fiber SFP ports (labeled 25~28) support 100/1000M speed and the fiber SFP+ ports (labeled 29~32) support 1/2.5/10Gbps speed. -
Page 13: Recommended Power, Alarm, Grounding Wiring Scheme
Recommended Power, Alarm, Grounding Wiring Scheme DC Power Connection Removable terminal blocks for power connection are provided on the rear panel. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device. -
Page 14: Earth Ground Connection
Alarm Relay Connection The alarm relay contact (located on the rear panel) can be wired into an alarm circuit which senses an alarm condition when the contact is broken. The alarm relay is normally closed when there is no alarm condition. -
Page 15: Led Indicators
LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green PWR2 connection. PWR1/PWR2 is not connected. When one or more of the Amber programmable alarm conditions is active. ACT/ALM During normal use, this LED will be Green lit, indicating a healthy condition of the running CPU. -
Page 16: Installation
Installation The managed core switch comes with rack-mounting hardware brackets. When installing the rack-mounting brackets, be sure to correctly align the orientation pin. Use the screws provided in the rack- mounting kit to securely fasten the brackets. Figure 13. Attaching Rack-Mounting Brackets Figure 14. - Page 17 Version Date Description 2020/12/25 Use new A4 document format 2022/7/29 Revise operating temperature -40~60...
