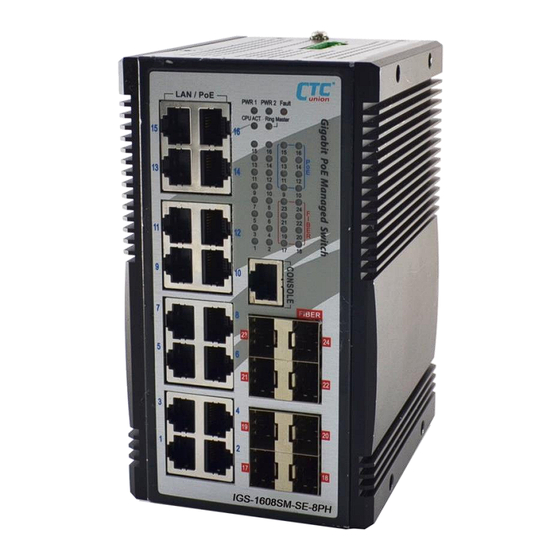

CTC Union IGS-1608SM-SE-8PH Quick Installation Manual

CTC Union IGS-1608SM-SE-8PH Quick Installation Manual

Industrial 16 x 10/100/1000base-t(x) + 8 x 100/1000base-x sfp slots with synce & 8 x poe+ managed ethernet switches (hardened)

Advertisement

Quick Links

Quick Installation Guide
IGS-1608SM-SE-8PH
IGS-1608SM-SE-8PHE
Industrial 16 x 10/100/1000Base-T(X) + 8 x 100/1000Base-X SFP Slots
with SyncE & 8 x PoE+ Managed Ethernet Switches (Hardened)
sales@ctcu.com
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the IGS-1608SM-SE-8PH and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CTC Union IGS-1608SM-SE-8PH

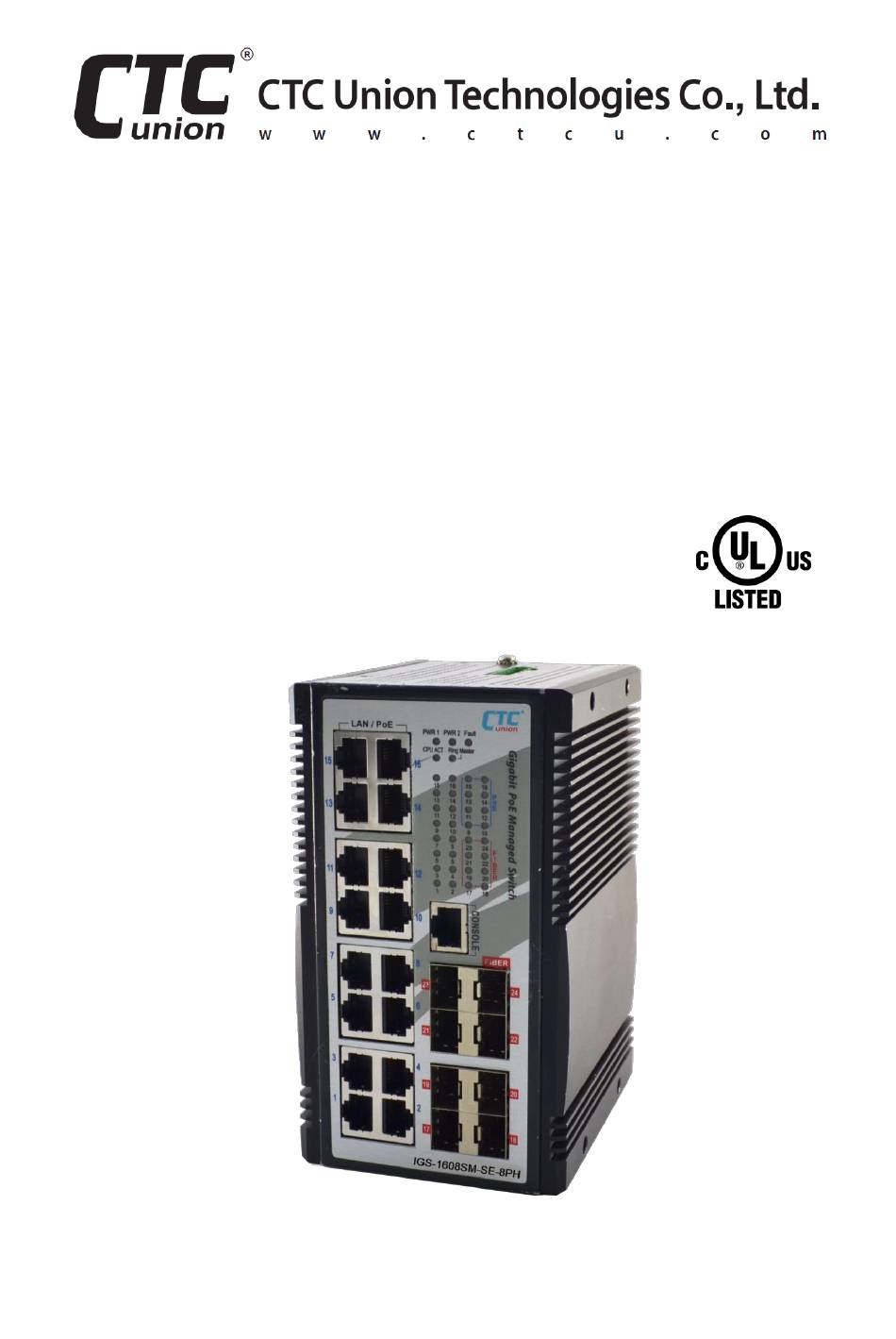

  • Page 1 Quick Installation Guide IGS-1608SM-SE-8PH IGS-1608SM-SE-8PHE Industrial 16 x 10/100/1000Base-T(X) + 8 x 100/1000Base-X SFP Slots with SyncE & 8 x PoE+ Managed Ethernet Switches (Hardened) sales@ctcu.com...
  • Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2021 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
  • Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
  • Page 4: Table Of Contents

    Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Command Line Interface (CLI) ........6 ..................6 ONSOLE ONNECTION /SSH C ..................7 ELNET ONNECTION Access to Web-Based Management Interface ......8 Specifications ................9 ....................
  • Page 5: Introduction

    Introduction IGS-1608SM-SE-8PH(E) models are managed industrial grade Gigabit switches with PoE (Power over Ethernet) and time synchronization features (SyncE & IEEE 1588 PTPv2) that provide stable and reliable Ethernet transmission. Housed in rugged DIN rail or wall mountable enclosures, these switches are designed for harsh...
  • Page 6: Access To Command Line Interface (Cli)

    Access to Command Line Interface (CLI) IGS-1608SM-SE-8PH(E) models are managed Gigabit PoE switch devices. Initial configuration (assignment of IP address) may be accomplished via the RS-232 console and a PC or laptop running terminal emulation software or via RJ45 Ethernet port running Telnet or SSH.
  • Page 7: Telnet/Ssh Connection

    Telnet/SSH Connection To use Command Line Interface (CLI), you can also choose to access the device through a Telnet/SSH connection via TCP/IP network over Ethernet ports. For initial operation, use the default TCP/IP settings (10.1.1.1) to login to the device. Default TCP/IP settings: IP Address: 10.1.1.1 Subnet Mask: 255.255.255.0...
  • Page 8: Access To Web-Based Management Interface

    Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your web browser. Then, a standard login prompt will appear depending on the type of browser used.
  • Page 9: Specifications

    Specifications Ethernet Interface • Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T) • RJ-45 (shielded) Ports: 16 ports • Speed: 10/100/1000M (Auto) Optical Interface • Standards: IEEE802.3u (100Base-FX), 802.3z (1000Base-X) • SFP-Based Slots: 8 slots • Speed: 100/1000M (Manual) Switch Features •...
  • Page 10: Mechanical

    • Dimensions: 116 mm (D) x 91 mm (W) x 157 mm (H) • Mounting: DIN-Rail, Wall Mount (Optional) • Weight: 1,375 g Environmental • Operating Temperature: -10°C~60°C (IGS-1608SM-SE-8PH); -40°C~75°C (IGS-1608SM-SE-8PHE) • Storage Temperature: -40°C~85°C • Humidity: 5%~95% (Non-condensing) Certifications •...
  • Page 11: Panels

    Panels Figure 2. Top Panel Figure 1. Front Panel Description UTP RJ-45 ports Fiber optic SFP slots Console port (RJ-45 to DB-9) LAN, PoE, Fiber LED indicators Power, Ring, CPU ACT, Fault LED indicators Terminal block Earth grounding connection...
  • Page 12: Lan And Fiber Ports

    LAN and Fiber Ports IGS-1608SM-SE-8PH(E) models have 16 UTP LAN ports (labeled 1~16) and 8 fiber ports (SFP based, labeled Fiber 17~24) on the front panel. The LAN ports that utilize shielded RJ-45 connectors support 10/100/1000M; while the fiber SFP ports support 100/1000M.
  • Page 13: Console Port

    CONSOLE Port The RJ-45 port labeled “CONSOLE” is an RS-232 terminal port for local management. These models use a “light” CLI (Command Line Interface) in addition to a user friendly Web interface and industry standard SNMP. One RJ-45 to DB-9 cable is provided with this device. CONSOLE port pinouts and RS-232 DB-9 connector are illustrated below together with RJ-45 to DB-9 signal mapping information.
  • Page 14: Recommended Power, Alarm, Ground Wiring Scheme

    Recommended Power, Alarm, Ground Wiring Scheme DC Power Connection A removable terminal block on the top panel provides both power and alarm connections. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device.
  • Page 15: Alarm Relay Connection

    Alarm Relay Connection The alarm relay contact can be wired into an alarm circuit which senses an alarm condition when the contact is broken. The alarm relay is normally closed when there is no alarm condition. The alarm conditions are user programmable through management to include power, link faults or other fault conditions.
  • Page 16: Led Indicators

    LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1/ Green connection. PWR2 PWR1/PWR2 is not connected. When one or more of the programmable alarm conditions is Fault Amber active. Normal operation without faults. Alarm conditions are all disabled.
  • Page 17: Installation

    Installation The switch can be mounted on the wall or installed in DIN rail depending on your installation needs. When installing the wall-mounting bracket (optional accessory) and DIN rail bracket, be sure to correctly align the orientation pin. Figure 10. DIN Rail Figure 11.
  • Page 18 Version Date Description 2020/12/25 Preliminary vesion Use new document format 2021/12/24 Change DIN Rail rack to the new one...

This manual is also suitable for:

Igs-1608sm-se-8phe
