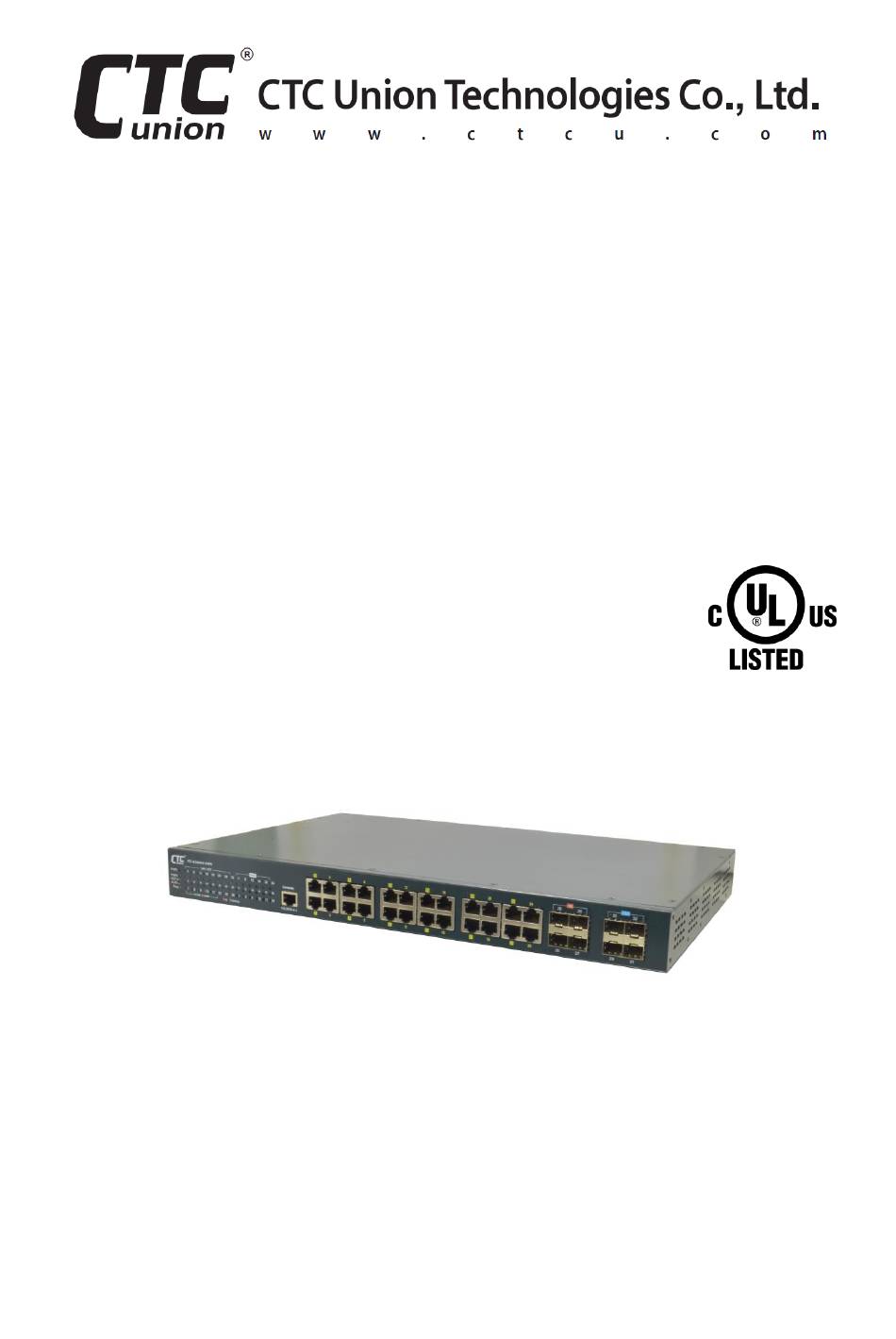

- Page 1 Quick Installation Guide ICS-G24044X-24PH 24 x 10/100/1000Base-T(X) + 4 x 100/1000Base-X SFP + 4 x 1/2.5/10GBase-X SFP+ Managed Core Switch sales@ctcu.com...
- Page 2 8F, No. 60 Zhouzi St., Neihu, Taipei 114, Taiwan T +886-2-26591021 F +886-2-26590237 E sales@ctcu.com H www.ctcu.com 2020 CTC Union Technologies Co., LTD. All trademarks are the property of their respective owners. Technical information in this document is subject to change without notice.
- Page 3 CTC Union Technologies makes no warranty, representation, or guarantee regarding the suitability of its products for any particular purpose, nor does CTC Union assume any liability arising out of the application or use of any product and specifically disclaims any and all liability, including without limitation any consequential or incidental damages.
-
Page 4: Table Of Contents
Table of Contents Introduction .................. 5 Package List ................. 5 Features ..................5 Access to Command Line Interface (CLI) ........6 ..................6 ONSOLE ONNECTION /SSH C ..................7 ELNET ONNECTION Access to Web-Based Management Interface ......8 Specifications ................9 .................... -
Page 5: Introduction
Introduction ICS-G24044X-24PH are industrial grade managed PoE+ core switches with 24 (10/100/1000Mbps) RJ-45 ports with Power over Ethernet function, 4 (100/1000Mbps) SFP slots and 4 (1/2.5/10Gbps) SFP+ slots. Housed in rugged enclosures, these switches are designed for harsh environments where... -
Page 6: Access To Command Line Interface (Cli)
Access to Command Line Interface (CLI) ICS-G24044X-24PH models are managed PoE+ core switches. Initial configuration (assignment of IP address) may be accomplished via the RS-232 console and a PC or laptop running terminal emulation software or via RJ45 Ethernet port running Telnet or SSH. -
Page 7: Telnet/Ssh Connection
Telnet/SSH Connection To use Command Line Interface (CLI), you can also choose to access the device through a Telnet/SSH connection via TCP/IP network over Ethernet ports. For initial operation, use the default TCP/IP settings (10.1.1.1) to login to the device. Default TCP/IP settings: IP Address: 10.1.1.1 Subnet Mask: 255.255.255.0... -
Page 8: Access To Web-Based Management Interface
Access to Web-Based Management Interface To enter the web-based management interface for the first time or after returning the device back to factory defaults, input the default IP 10.1.1.1 address “ ” in your web browser. Then, a standard login prompt will appear depending on the type of browser used. -
Page 9: Specifications
Specifications Ethernet Interface • Standards: IEEE802.3 (10Base-T), 802.3u (100Base-TX), 802.3ab (1000Base-T) • RJ-45 (shielded) Ports: 24 ports • Speed: 10/100/1000M (Auto) GbE Optical Interface • Standards: IEEE802.3u (100Base-FX), 802.3z (1000Base-X) • SFP Slots: 4 • Speed: 100/1000Mbps (Manual) dual speed •... -
Page 10: Power
Power • Redundant Dual Input Power: 48VDC (44~57VDC) • 50~57VDC is recommended for IEEE802.3at PoE+ 30W applications • Supports Removable Terminal Block • Consumption: <33W (50VDC) without PoE load, <449W (50VDC) with 400W PoE load Mechanical • Water & Dust Proof: IP30 Protection •... -
Page 11: Panels
Panels Figure 1. Front Panel Figure 2. Rear Panel with Two DC (DD Model) Power Supplies Description Description Link/ACT & Speed LED UTP RJ-45 ports indicators for SFP slots (100/1000M) Fiber optic SFP slots Link/ACT & Speed LED (100/1000M) indicators for SFP+ slots (1/2.5/10G) Fiber optic SFP+ slots PoE LED indicators... -
Page 12: Lan And Fiber Ports
LAN and Fiber Ports ICS-G24044X-24PH managed PoE+ core switches have 24 electrical LAN ports (labeled 1~24) and 8 fiber ports (SFP/SFP+ based, labeled 25~32) on the front panel. The LAN ports that utilize shielded RJ-45 connectors support 10/100/1000M speed; while the fiber SFP ports (labeled 25~28) support 100/1000M speed and the fiber SFP+ ports (labeled 29~32) support 1/2.5/10G speed. -
Page 13: Console Port
CONSOLE Port The RJ-45 port labeled “CONSOLE” is an RS-232 terminal port for local management. These models use a “light” CLI (Command Line Interface) in addition to a user friendly Web interface and industry standard SNMP. One RJ-45 to DB-9 cable is provided with this device. CONSOLE port pinouts and RS-232 DB-9 connector are illustrated below together with RJ-45 to DB-9 signal mapping information. -
Page 14: Recommended Power, Alarm, Grounding Wiring Scheme
Recommended Power, Alarm, Grounding Wiring Scheme DC Power Connection Removable terminal blocks for power connection are provided on the rear panel. Power can be provided through the dual inputs from separate sources (PWR1 & PWR2). One power supply is enough to power up the device. -
Page 15: Earth Ground Connection
Earth Ground Connection An earth ground connector is provided on the rear panel (See Figure 2, 3, 4) next to the power supply. Grounding the device can help to release leakage of electricity to the earth safely so as to reduce injuries from electromagnetic interference (EMI). -
Page 16: Led Indicators
LED Indicators Color Status Definition Power is connected and active at the PWR1/PWR2 input terminal PWR1 Green connection. PWR2 PWR1/PWR2 is not connected. When one or more of the Amber programmable alarm conditions is active. ACT/ALM During normal use, this LED will be lit, Green indicating a healthy condition of the running CPU. -
Page 17: Installation
Installation The managed core switch comes with rack-mounting hardware brackets. When installing the rack-mounting brackets, be sure to correctly align the orientation pin. Use the screws provided in the rack- mounting kit to securely fasten the brackets. Figure 10. Attaching Rack-Mounting Brackets Figure 11. - Page 18 Version Date Description 2020/12/25 Use new A4 document format...
