Recommended Accessories
Power Supply for #BB-USH204-B
40W, 12V, DIN Rail, Plastic
Model 96PSD-A40W12-MM
Power Supply for #BB-USH207-B
60W, 24V, DIN Rail, Plastic
Model 96PSD-A60W24-MM
USB 3.0 Cable
3 ft. (0.91 m)
Model BB-USB3AMBM-3FT
QUICK START
GUIDE
BB-USH204-B or
BB-USH207-B

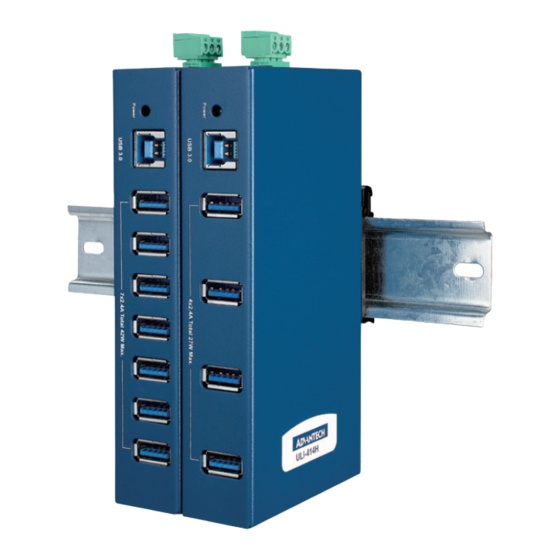

Industrial 4 or 7 Port USB 3.0 Hub
Before you begin, be
sure you have the following:
+ Industrial USB Hub (included)
+ USB 3.0 Type A to B Cable, 2m (included)
+ DIN Rail & Wall Mount Kit (included)
+ Terminal Block (included)
+ Power Supply (required, sold separately)
+ USB Cable (additional, sold separately)
www.advantech.com
Fast and easy on the web:
Advertisement
Related Manuals for Advantech BB-USH204-B
Summary of Contents for Advantech BB-USH204-B
- Page 1 QUICK START GUIDE Recommended Accessories BB-USH204-B or Power Supply for #BB-USH204-B 40W, 12V, DIN Rail, Plastic BB-USH207-B Model 96PSD-A40W12-MM Industrial 4 or 7 Port USB 3.0 Hub Power Supply for #BB-USH207-B 60W, 24V, DIN Rail, Plastic Before you begin, be...
- Page 2 Mount your hub on the wall or DIN rail, if needed. Assignment table below for wiring the power adapter DIN Rail Mounting BB-USH204-B (power adapter not included). Use the included screws to install the DIN rail kit to the hub.
