Advantech BB-UH104 Quick Start Manual

+
Additional USB Hub Options
Model# BB-UHR204
Heavy Industrial powered USB hub
Model# BB-UHR204 is a four port USB hub with a
barrel connector and terminal block for external power.
When operating on bus power, it provides 100 mA
to downstream ports. When using external power it
provides 500 mA to each downstream port.
Model# BB-UHR304
Heavy Industrial powered USB hub
with isolation
Model# UHR304 is a four port USB hub with a barrel
connector and terminal block for external power. It
provides 500 mA to each downstream port. It also adds
isolation, protecting connected devices from ground
loops and data loss.
BB-UH201
Compact, Portable USB Isolation
2 kV Isolation is as close as your pocket. Use Model#
BB-UH201 USB Port Guardian to protect your laptop
while connecting to remote devices for field service
or programming. Simply plug it into your laptop's USB
port and connect your USB cable. (Due to the nature of
isolation and USB, bandwidth will be set to 12 Mbps.)
Document Number: 20BB710-10581-00_r2_BB-BB-UH104_4919qsg

Recommended Accessories

USB Extension Cable
Model# BB-USBAMBM-3F
www.advantech.com
707 Dayton Road | PO Box 1040 | Ottawa, IL 61350 USA
Phone: 1 (815) 433-5100 | Fax: 1 (815) 433-5109
www.advantech.com | E-mail: support@advantech-bb.com
QUICK START
GUIDE

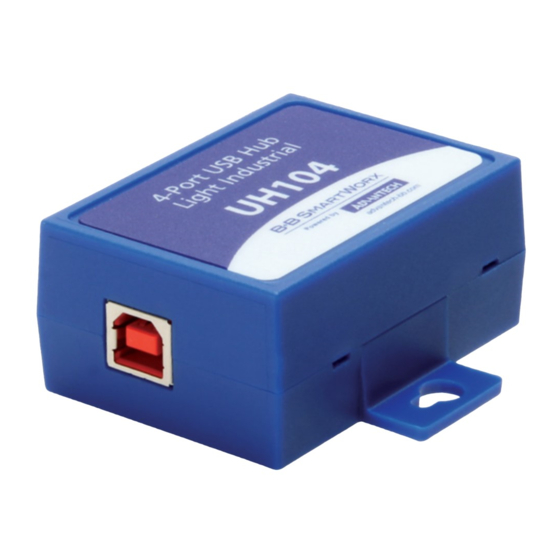

BB-UH104
Industrial 4-Port USB Hub
Before you begin, be
sure you have the following:
+ 4-Port Industrial USB Hub
+ USB Cable
(required but not included)
www.advantech.com
Fast and easy on the web:
