- Page 1 03/18 Wireless keypad PRF-LCD-WRL Firmware version 1.00 SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND tel. +48 58 320 94 00 www.satel.eu...
- Page 2 The name plate of the device is located on the enclosure base. SATEL's goal is to continually upgrade the quality of its products, which may result in some changes of their technical specifications and firmware. The current information on the introduced modifications is available on our website.

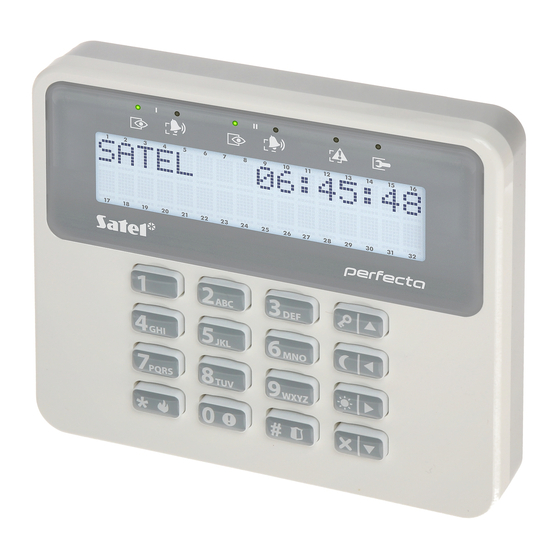

- Page 3 The PRF-LCD-WRL wireless keypad enables operation and programming of the PERFECTA 16-WRL and PERFECTA 32-WRL control panels. Fig. 1. PRF-LCD-WRL keypad. 1. Features Two-way encrypted radio communication in the 433 MHz frequency band. Display 2 x 16 characters with backlight.
-
Page 4: Installation
PRF-LCD-WRL SATEL – after preset time, if the active mode was started automatically (see description of the parameter p. 7). UP DURATION The purpose of the inactive mode is to save energy. The display is off. Backlight, LED indication and sound signaling are disabled (if a time different from 0 is preset for the parameter, the CHIME from zones will be signaled). - Page 5 LCD keypad. The control panel allows for enrolling of up to 4 PRF-LCD-WRL keypads. If no wired keypad is connected to the control panel, you can only add the first wireless keypad using the PERFECTA S program.
- Page 6 PRF-LCD-WRL SATEL 3. Click on 4. The wireless device adding panel will be displayed. 5. In the “Serial no.” field, enter the serial number of the keypad. You will find it on the keypad electronics board. 6. Press any key on the keypad being added.
- Page 7 SATEL PRF-LCD-WRL 4. Configuring You can configure the wireless keypad settings by using a computer with PEFECTA S program installed, or an LCD keypad. Names of parameters and options from the PERFECTA S program are used in this manual. At the description of each parameter or option, you will find one of the following data in square brackets: ...
- Page 8 PRF-LCD-WRL SATEL Show partition 2 status [Show part.2] – if this option is enabled, the keypad LEDs and display indicate the status of partition 2. The keypad will indicate the status of partition 1 only after entering code by the user who has access to partition 1.
-
Page 9: Operation
Wireless keypad initial greeting [218.Connect msg] – message displayed on the PRF-LCD-WRL keypad after wake-up. The message is the same for all keypads. 5. Operation When in active mode, the wireless keypad enables operation and programming of the alarm system. -
Page 10: Specifications
PRF-LCD-WRL SATEL 6. Specifications Operating frequency band................433.05 ÷ 434.79 MHz Radio communication range (in open area) ............up to 200 m Batteries......................2 x CR123A 3 V Standby current consumption, BT1 battery ..............0.005 mA Maximum current consumption, BT1 battery..............50 mA Standby current consumption, BT2 battery ..............0.001 mA...
