mac.pan MPT AUT Series User And Maintenance Manual

Automaticbread slicer with belts
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Automaticbread slicer
with belts
MPT AUT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MPT AUT Series and is the answer not in the manual?

Questions and answers

Related Manuals for mac.pan MPT AUT Series

Summary of Contents for mac.pan MPT AUT Series

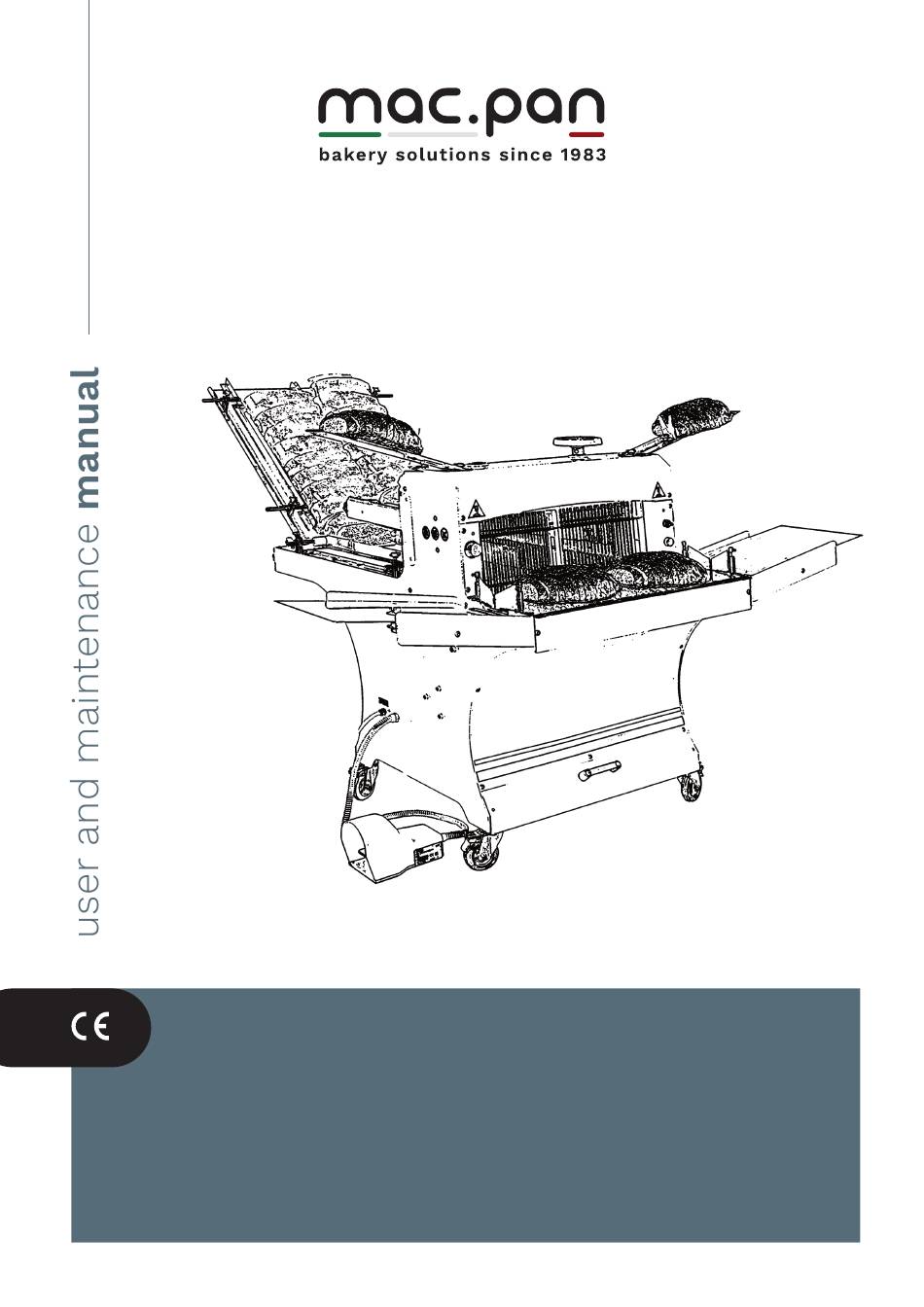

  • Page 1 Automaticbread slicer with belts MPT AUT...

  • Page 2: Introduction

    NTRODUCTION First of all, we would like to thank you for choosing our product. We kindly ask you to read this manual carefully before start work with the machine. Read carefully this manual since it contains important information and indications regarding safety during installation, use and maintenance of the appliance.

  • Page 3: Table Of Contents

    ONTENTS INTRODUCTION ............................1 GUARANTEE ............................. 4 ............................4 NSTALLING DATA MACHINE IDENTIFICATION ........................ 5 SYMBOLS USED IN THE MANUAL ...................... 5 DESCRIPTION OF THE MACHINE, GENERAL NOTICE ..............6 HANDLING AND STORAGE ........................7 ............................... 7 TORAGE ............................... 7 ACKING ................................
  • Page 4 LABOUR SAFETY AND HYGIENE ...................... 14 ............................14 ANGER ZONES ......................14 AFETY RULES FOR THE OPERATOR MACHINE SET-UP ..........................15 TECHNICAL DATA ..........................16 TROUBLESHOOTING ..........................17 CHANGING OF PARTS .......................... 18 ........................18 RDERING OF SPARE PARTS ..........................18 OME WEARING PARTS REPLACE OF THE BLADES .........................

  • Page 5: Guarantee

    UARANTEE The guarantee for the slicer last for 24 months (counted from the installation), if the following conditions are realized: • Observance of the instructions written in the manual. • Appropriate working environment. • Adequate cleaning and maintenance. If the above mentioned conditions have been observed, the distributor guarantees the free spare part supply and servicing of the machine is needed.

  • Page 6: Machine Identification

    ACHINE IDENTIFICATION A register on the back of the machine can be found, where the general characteristic are indicated, such as: • Name address, telephone of the distributor • Machine model • Serial number • Voltage & Frequency • Electric power •...

  • Page 7: Description Of The Machine, General Notice

    ESCRIPTION OF THE MACHINE GENERAL NOTICE These machines are designed for slicing different kind of breads, which sizes are not exceed the sizes of machine slicing unit, baked within one day and not too stiff for the blades. Any other kind of use is considered as improper, therefore improper.

  • Page 8: Handling And Storage

    ANDLING AND STORAGE Storage The machine must be stored in a hygienically clean, closed, covered environment, positioned on a flat surface and protected from atmospheric agents, dust and dirt. Temperature must be between -10 and +40 Packing The machine is packed by the manufacturer according to the requests of the buyer, the distance and the country of destination.

  • Page 9: Installing

    NSTALLING Installing can only be made by qualified personal. In other cases the manufacturer/distributor is not responsible for any problem. Noise level The average noise level near the working place is less than 70 decibel, in accordance to the European regulation. Installation place The following terms have to be realized: •...

  • Page 10: Electrical Connections

    LECTRICAL CONNECTIONS • The electrical connections have to be made in accordance to the CEE rules. • Before installing the machine make sure, that the voltage (V) and frequency (Hz) and the number of phases of the power supply correspond to those specified on the serial plate of the machine and of the motor.

  • Page 11: Working With The Machine

    ORKING WITH THE MACHINE Before start working with the slicer, you have to contact it to the electrical supply as written in the previous chapter. Proper use of the machine • • The bread slicer can only used for slicing bakery products as breads with adequate sizes.

  • Page 12: Working With The Machine Step-By-Step

    Working with the machine step-by-step 1. Connect the machine to the mains. Make sure, that the brake of the wheels are applied. 2. Make sure, that the emergency stop button is released (if not turn it in the way indicated by the arrows). 3.

  • Page 13: Malfunction

    Malfunction When malfunction is detected, you have to disconnect the machine from the electrical cord by pulling its cable out from the connection, and you have to contact the manufacturer/distributor. LEANING AND MAINTENANCE IMPORTANT: BEFORE CARRYING OUT ANY CLEANING OR MAINTENANCE OPERATION, ALWAYS DISCONNECT THE MACHINE FROM THE MAINS BY PULLING ITS CONNECTION OUT FROM THE ELECTRICAL SOCKET.

  • Page 14: Cleaning And Maintenance

    Cleaning and maintenance Markings of the procedures: Maintenance (only by qualified personnel) Cleaning ROCEDURE PERATION REQUENCY Empty the drawer. Every day after work or any time if it is full. Clean the outer surfaces of the The surface which are in contact with the machine.

  • Page 15: Labour Safety And Hygiene

    ABOUR SAFETY AND HYGIENE Danger zones The slicer was made in conformity to EU A89/392/CEE and 91/368/CEE The following danger zones can be found: 1. Bread intake zone – This is where you can put the bread before slicing. The belt and the stainless steel gravity slide.

  • Page 16: Machine Set-Up

    ACHINE SET 1. Drawer The crumbs are collected here. The operator has to empty it if needed. 2. Emergency stop button: The moving of the cutting unit can be stopped at any time by pushing the red mushroom head emergency stop button. After, it will remain closed and for release the it has to be turned in the way indicated by the arrow.
  • Page 17 ACHINE SET 3-4-7 Automatic bread slicer with belts...

  • Page 18: Technical Data

    ECHNICAL DATA MPT500AUT MPT800AUT DUAL ODEL Automatic bread slicer Automatic bread slicer 490 mm 2 x 400 mm AXIMAL CUTTING WIDTH 190 mm 190 mm AXIMAL CUTTING HEIGHT 400V 55Hz 400V 55Hz YPE OF THE ELECTRIC MOTOR 0,55 kW 0,75 kW APACITY OF THE ELECTRIC MOTOR 225 kg...
  • Page 19 WIRING DIAGRAM Automatic bread slicer with belts...
  • Page 20 WIRING DIAGRAM BELT SLICER WITH ------------------------------------- PEDAL AND BAG BLOWER 2x1mm² - 2000 mm 4x1mm² - 850 mm 7x0,5mm² - 1800 mm +24V 5x1,5mm² 800 mm 4x1mm² 1000 mm 7x0,5mm² - 1800 mm Automatic bread slicer with belts...
  • Page 21 WIRING DIAGRAM 5x1,5mm² 800 mm Automatic bread slicer with belts...

  • Page 22: Troubleshooting

    ROUBLESHOOTING Fault Possible cause Solution Blades are moving but belts 1.) Machine have been 1.) Inverter motor protection are stand still overloaded. intervene. Remove the cause of 2.) Mechanical problem. overloading. You can turn off inverter motor protection by turning off machine for 5 minutes. 2.) Control worm gear, worm gear axis, chain wheels.

  • Page 23: Changing Of Parts

    HANGING OF PARTS • The operation can only made by qualified person. • Before carrying out any operation: o Push the emergency stop button. o You have to disconnect the machine from the electrical cord by pulling its cable out from the connection. You can remove the following parts to reach the inside: •...

  • Page 24: Replace Of The Blades

    EPLACE OF THE BLADES Blade sizes Model of the slicer MPT500AUT MPT600AUT Blade sizes 270x3 mm pin 285x3 mm pin Pieces The capacity of the original blades is 35.000 – 45.000 cutting pieces.* Ordering of blades You can easily order blades from the distributor by telephone, fax or e-mail.

  • Page 25: Replacement Of Blades

    Replacement of blades ATTENTION! Blades are very sharp, be careful when working with them. Replacement of blades can only be made by qualified personal. • The operation can only made by qualified person. • Before carrying out any operation: o Push the emergency stop button. o You have to disconnect the machine from the electrical cord by pulling its cable out from the connection.

  • Page 26: Manufacturer Distributor Data

    Bread-slicer manual book – ANUFACTURER DISTRIBUTOR DATA Manufacturer MACPAN SNC Address VIA DELL’ASTRONAUTICA, 2 Telephone 00.390445366342 www.macpan.com Distributor Distributor*: *If clear, the distributor and the manufacturer is the same. Automatic bread slicer with belts...

  • Page 27: Guarantee Services

    Guarantee services These can only be filled by the technician of the distributor/manufacturer. In every other case guarantee is not valid! Description of procedure: Description of procedure: Date: Date: Signature, stamp: Signature, stamp: Description of procedure: Description of procedure: Date: Date: Signature, stamp: Signature, stamp:...
  • Page 28 SPARE PARTS Automatic bread slicer with belts...
  • Page 29 SPARE PARTS Automatic bread slicer with belts...
  • Page 30 SPARE PARTS Automatic bread slicer with belts...
  • Page 31 SPARE PARTS Automatic bread slicer with belts...
  • Page 32 SPARE PARTS Automatic bread slicer with belts...
  • Page 34 www.macpan.com...

This manual is also suitable for:

Mpt500autMpt600autMpt800aut
