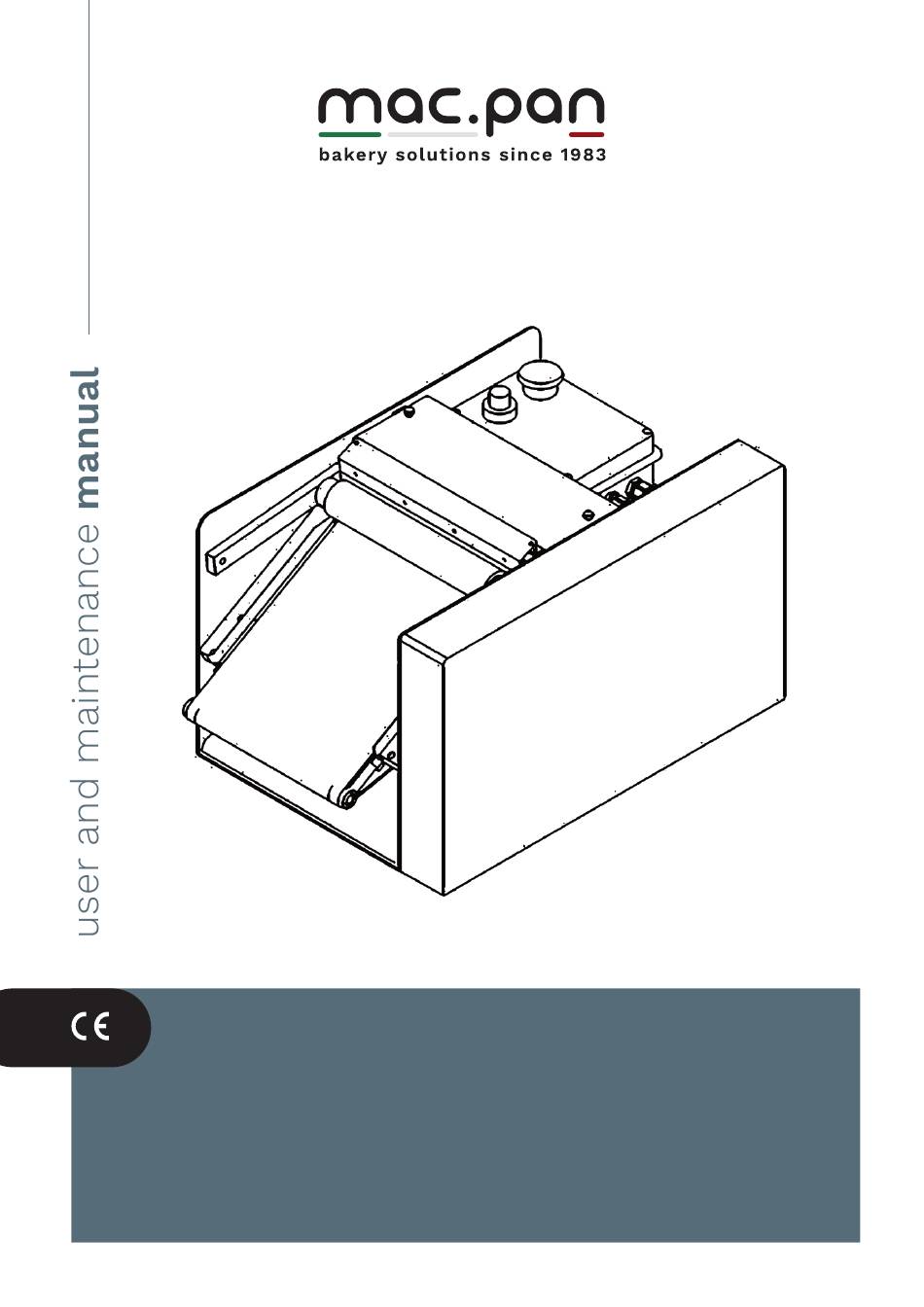

  • Page 1 Croissants machine table version...
  • Page 2 INDEX INTRODUCTION pag.3 DELIVERY OF THE MACHINE pag.3 WARRANTY pag.3 DESCRIPTION OF THE MACHINE pag.3 TECHNICAL SHEET pag.4 SAFETY RULES pag.5 SAFETY DEVICES pag.5 UNLOADING AND HANDLING pag.5 INSTALLATION pag.6 10. WORKING pag.6 11. WARNINGS pag.7 12. MAINTENANCE pag.7 13. CLEANING OF THE MACHINE pag.7 14.
  • Page 3: Delivery Of The Machine

    INTRODUCTION The BUILDING COMPANY with the present handbook wants to show the technical features and qualities, the installation and starting procedure and also the ordinary maintenances of the machine that You bought. Included in this manual, there are also the safety devices, the electrical system scheme and the drawings for the identification of the parts that compose the machine.
  • Page 4: Technical Sheet

    TECHNICAL SHEET MACCHINA: FORMATRICE PER CROISSANT DA BANCO Machinery: Croissants machine, table version Machine: Machine pour croissants type a banc n° NUMERO DI MATRICOLA: Serial number: Matricule: ANNO DI COSTRUZIONE: Manufacture year: Annèe de constuction: PESO: Weight: Poids: ALTEZZA: Heigth: Hauteur: LUNGHEZZA: Length:...
  • Page 5: Safety Rules

    SAFETY RULES 1) This machine must be destined to the use for which was designed, THE BUILDING COMPANY DOES NOT ASSUME ANY RESPONSIBILITY for any eventual damage to people, animals or things caused by an inappropriate, wrong and unreasonable use of the machine (different from the one showed in this handbook) 2) KEEP AWAY children from the machine.
  • Page 6: Installation

    INSTALLATION 1) Check that the tension of your place is the same as the one indicated on the machine (see the voltage label placed on the machine). Otherwise, do not proceed with the electric connection and contact the supplier or the building company. 2) Be sure that on the general electric panel on the wall there is installed a thermal-magnetic circuit breaker with differential, according to CEI rules.
  • Page 7: Maintenance

    WARNINGS 1. Every time that the machine is stopped, for starting the machine again push the green button (START) (ref. n°16). 2. Every time that the stop button (ref. n°14) is pushed, it needs to be unlocked by turning it clockwise. 3.
  • Page 8 SPARE PARTS NUMERATION LIST Croissants machine table version...
  • Page 9 16 GENERAL ARRANGEMENT VIEW Croissants machine table version...
  • Page 10 AXIS EXPLODED VIEW Croissants machine table version...
  • Page 11: Exploded View

    EXPLODED VIEW Croissants machine table version...
  • Page 12: Electrical System Scheme

    19. ELECTRICAL SYSTEM SCHEME Croissants machine table version...
  • Page 13 PUTTING OUT OF WORK If, for any reason, the machine should be put “temporarily” out of work, you need to be sure to remove the plug from the electrical system, to clean the machine as written in the handbook and to cover the machine in order to shelter it from the dust.
  • Page 14: Weee Notice

    WEEE NOTICE The Directive on Waste Electrical and Electronic Equipment (WEEE), which entered into force as European law on 13th February 2003, resulted in a major change in the treatment of electrical equipment at end-of-life. The purpose of this Directive is, as a first priority, the prevention of WEEE, and in addition, to promote the reuse, recycling and other forms of recovery of such wastes so as to reduce disposal.
