mac.pan FRY36SS User And Maintenance Manual

Doughnut fryer
Hide thumbs

Advertisement

Table of Contents

Doughnut fryer
FRY36SS - FRY36SC - FRY48SS
FRY48SC - FRY60SS - FRY60SC

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FRY36SS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for mac.pan FRY36SS

Summary of Contents for mac.pan FRY36SS

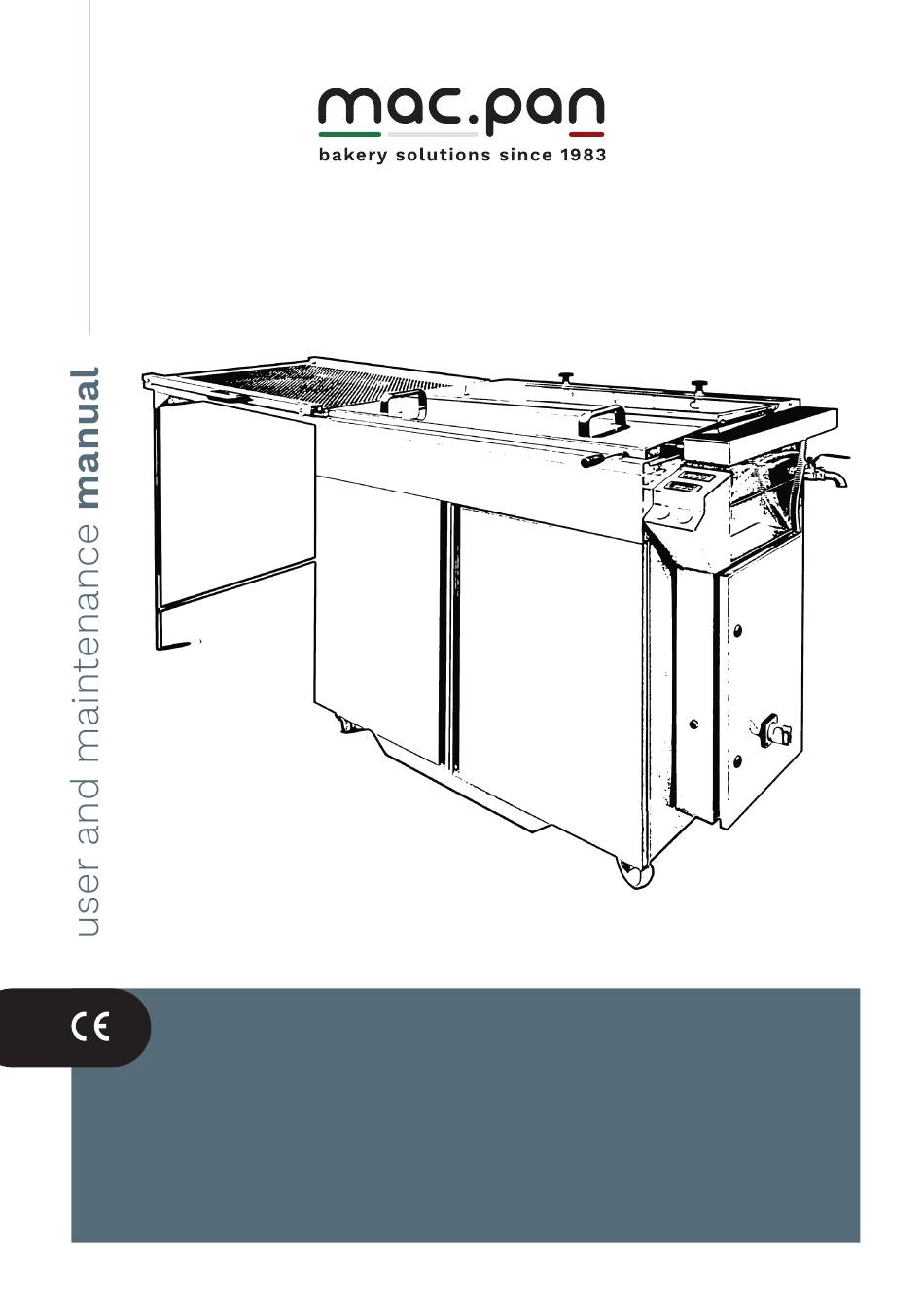

  • Page 1 Doughnut fryer FRY36SS - FRY36SC - FRY48SS FRY48SC - FRY60SS - FRY60SC...
  • Page 3 1.3. Directions and notes to the user DOUGHNUT FRYER FRY36SS FRY36SC , FRY48SS , FRY48SC , The producer refuses every responsibility for FRY60SS and FRY60SC . damages to the people, animals and things...
  • Page 4 2. THE MANUAL-DESCRIPTION OF THE MACHINE 2.1. FOREWORD The doughnut fryer models FRY36SS , FRY36SC FRY48SS FRY48SC FRY60SS and FRY60SC is a doughnut frying machine. It is made stainless steel of AISI 304 quality. It consists of an oil tub with 6 baskets. Each can be...
  • Page 5 2.2. Description 2.2.1. Description of the fryer 2.2. Description 2.2.1. Description of the fryer doughnut fryer PAGINA 8 od 34...
  • Page 6 doughnut fryer...
  • Page 7 Machine contains following parts: Wheel Side table legs Side table surface Main switch Basket lifting button Basket lowering button Doughnut drainer Oil draining tup Steam generator Chamber door Tub cover Tray trolley Tray from the trolley Basket frame Basket rotating lever Electric cabinet Managing box Oil heater housing...
  • Page 8 2.2.2. Description of the electrical cabinet OPIS / KOM. OZNAKA / PROIZVOĐAČ / KARAKTERISTIKE / DESCRIPTION MANUFACTOR CARACTERISTICS PCS. Main switch +GRO-S1 Telemecanique 3-polna Safety thermostat +GRO-S3 Metalflex 115-10 0C air heaters Autom. switch +GRO-F1…3 TRACON Autom. switch +GRO-F4,5,7 TRACON Autom.
  • Page 9 2.2.3. Description of the commands of the oil heater and electric housing Main switch 24. Safety thermostat of air heater Safety thermostat of oil heater doughnut fryer PAGINA 12 od 34...
  • Page 10 2.2.4. Description of the commands on the managing box Oil heater digital thermostat Air heater digital thermostat Motor starting and basket lifting Motor starting and basket button lowering button doughnut fryer PAGINA 13 od 34...
  • Page 11 2.3. Dimensions and other characteristic data doughnut fryer PAGINA 14 od 34...
  • Page 12 FP-60BK (FRY60SC ) Technical details FRY36SS (FRY36SC ) FRY48SS (FRY48SC ) A – The machine length without side plate (mm) 1080 1280 E – Side plate length (mm) 1118 Length of the machine with the side plate 1595 1942 2350 C –...
  • Page 13 2.4. Inscription plate and the product coding system doughnut fryer PAGINA 16 od 34...
  • Page 14 3. THE INSTALLING AND USING MANUAL 3.1. FOREWORD Following the EU 98/37/cee directions and within this manual, the following definitions are given: 1)"Danger zone"-any area in/or near the machine where the presence of the person exposed to a danger means danger for safety and health of that person.

  • Page 15: Machine Transportation

    3.3. Machine transportation The fryer is delivered without the frying oil and fixed on a palette in an appropriate package agreed. IF, when delivered, the visible faults are spotted the producer should be notified at once. The transporter should be notified for the faults occurred during the transportation.

  • Page 16: Starting And Operating

    7. Check the basket lifting and lowering, with Lift the tub lid and take a tray out of the trolley this also you check electric motor of basket: (pos.17) and put it in the frame (pos18) and -left button-UP-basket lifting push it to the edge.

  • Page 17: Maintenance Notes

    4. MAINTENANCE NOTES 1. Foreword "Regular maintenance“means the sum of all the operations that require no special knowledge to be done safely. All in the 4.2, 4.3 and 4.4 passages should be considered regular maintenance. IMPORTANT! Prior to the machine cleaning or electrical closet opening that contains the main socket (pos.20),...

  • Page 18: Schema Elettrico

    SCHEMA ELETTRICO to drain. Put the appropriate hose on the oil tap (pos.11), remove padlock from it, put a container underneath and open the tap. When the oil drains, close the tap, and return padlock to oil tap. Turn off the main switch; pull out the plug out of electric net, and the oil heater (pos.25) out of socket under the main switch closet.
  • Page 19 4.6. Servicing of the machine (extraordinary maintenance) The servicing, fixing and spare parts delivering are done by MACPAN 4.7. Spare parts list The spare parts list is with the producer. doughnut fryer PAGINA 23 od 34...
  • Page 20 SCHEMA ELETTRICO 4.8. Electrical diagrams 4.8.1. Electrical diagram of the joined modules doughnut fryer PAGINA 24 od 34...
  • Page 21 SCHEMA ELETTRICO doughnut fryer PAGINA 25 od 34...
  • Page 22 SCHEMA ELETTRICO 4.8.2. Electrical diagram of the managing circuit doughnut fryer PAGINA 26 od 34...
  • Page 23 SCHEMA ELETTRICO doughnut fryer PAGINA 27 od 34...
  • Page 24 5. INGREDIANTS SAFETY AND 5.2.4. Danger zone 4 HYGIENIC NOTES Danger getting jammed, pulling squeezing of upper limbs between the 5.1. General basket carrier and tub. Carefully operate the lifting and lowering Danger analysis in 5.2, 5.3, 5.4 and mechanism to avoid the hurt of the operator. Never place hands under the lifted baskets.
  • Page 25 doughnut fryer PAGINA 30 od 34...
  • Page 26 Make sure the colors and letters are visible. At any sign of the damaging they should be replaced as soon as possible. New ones can be purchased at the producer´s. 5.7. Ingrediants hygienic conditions The machine described in this manual should be considered ment for the food processing Descriptions, displays, weighs according to the law, on the day of the...
  • Page 28 www.macpan.com...

This manual is also suitable for:

Fry36scFry48ssFry48scFry60ssFry60sc
