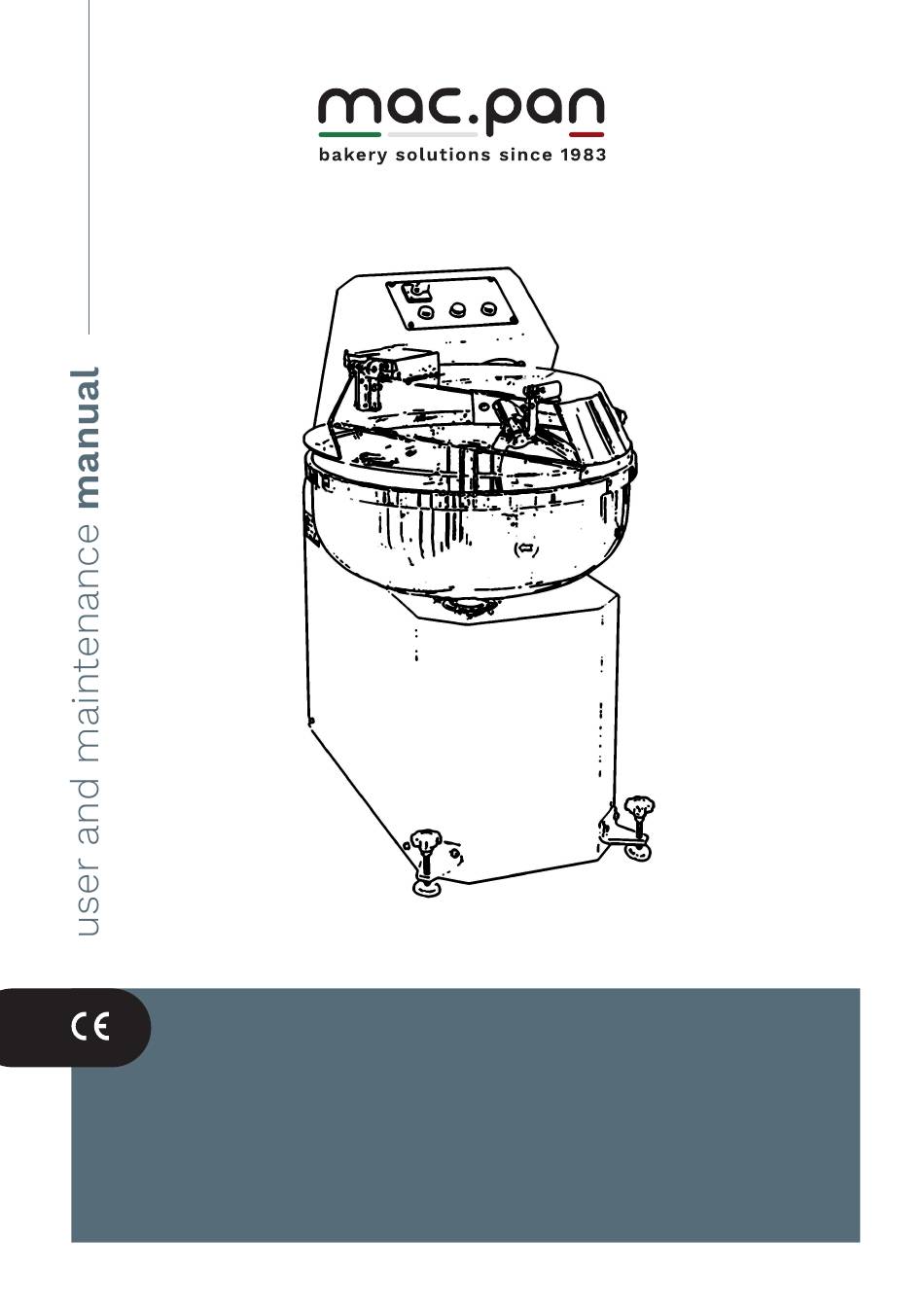

- Page 1 Fork mixer 2 speeds VL40 - VL80 - VL80 2T...
- Page 2 F O R K M I X E R 2 S P E E D S INDEX 1st CHAPTER - MACHINE MARKING........PAG.03 2nd CHAPTER - GENERAL INFORMATION .......PAG.04 3rd CHAPTER - FORESEEN USE OF THE MACHINE .......PAG.05 - General description .......PAG.05 - Machine capacity ........PAG.05 - Incorret use of the machine .......PAG.05 4th CHAPTER...
- Page 3 1ST CHAPTER MACHINE MARKING Each machine has got a small plate with its main datas. The plates gives the following information: - EC Marking - Furthermore, it shows the following datas, which feature each model: 1) Machine model ........VL 80 1) Machine model ........
- Page 4 2ND CHAPTER GENERAL INFORMATION THE INSTRUCTIONS WORKBOOK MUST BE CONSIDERED AS AN INTEGRAL PART OF THE MACHINE AND IT MUST BE KEPT FOR FURTHER REFERENCES FOR THE WHOLE LIFE OF THE MACHINE. Before carrying out any operation with the machine, please read this workbook carefully, specially the chapter dealing with satefy standards.
- Page 5 3RD CHAPTER FORESEEN USE OF THE MACHINE GENERAL DESCRIPTION The machine is reserved for being used by a staff qualified to produce and knead flour and dough, specially by people working in bakery and pastry workshops and in pizzerias. The VL80 is a kneading machine, that is, it is used to knead any kind of dough for bread, pastry and pizzas.
- Page 6 FEATURES OF THE ELECTRICAL MOTOR Three-phase asynchronous motor. Technical data: - Power ....3.1 + 0,55 Kw x VL80 - Power ....1.3 + 0,37 Kw x VL40 - Speed ....950/1400 rev./min. - Frequency ... 50 Hertz - Voltage ..... 400...
- Page 7 COMANDS Nr.1 MAIN SWITCH Nr.3 ON/BUTTON 1° SPEED Nr.2 RED STOP- PUSH BUTTON Nr.4 ON/BUTTON 2° SPEED FIGURE 4.1 OPTIONAL TIMER 1 SPEED TIMER 2 SPEED PS:_ FOR MODEL VL80-2 TIMER, SEE SETTING ON PAGE.21 Fork mixer 2 speeds...
- Page 8 DESCRIPTION OF THE PROTECTIONS AND OF THE SAFETY SYSTEM The dangerous working element of this machine is the spiral-shaped tool. The access to such element is prevented by a partially movable protection. The protection is completely made of stainless steel and has a grating (to allow possible additions and to control the working cycle).
- Page 9 5TH CHAPTER TRANSPORT, POSITIONING AND CONNECTION TO THE ELECTRIC NETWORK TRANSPORT The weight of the VL 80 is of 350 Kg. The weight of the VL 40 is of 180 Kg. Thanks to its particular shape, it is easy to move. Anyway, it is better not to stress the main elements, such as the protection, the basin and the control board.
- Page 10 5.3.1 EARTHING Verify the efficiency of the earthing in your electrical system. Connect the plug and the relative earthing cable according to the local electrical standards. Never connect the earthing cable to gas or water pipelines, or to telephone cables. 5.3.2 PRECAUTIONS ANY OPERATION, IN WHICH LIVE LINES OR ELECTRICAL ELEMENTS SHOULD BE REACHED,...
- Page 11 6TH CHAPTER EQUIPMENT Nr. 01 Use and maintenance workbook This workbook must not be lost or damaged. It must be possible to consult the workbook whenever necessary, so keep it near the machine. Fork mixer 2 speeds...
- Page 12 7TH CHAPTER USE AND WORKING OF FORK MIXER MODEL "VL 80 – VL 802T – VL40” GENERAL INFORMATION Check the connection to the electric network so that it complies with the rules mentioned in paragraph 5.3. STARTING AND WORKING (see chapter 4.6) The machine mixes at one speed without pre-established times and the worker must carry out any operation by hand.
- Page 13 8TH CHAPTER MAINTENANCE IMPORTANT: BEFORE ANY CLEANING OR MAINTENANCE OEPRATION, OR BEFORE REACHING ANY LIVE PART OR ANY MOVING MECHANISM, TURN OFF THE POWER BY THE MAIN MAGNETO-THERMAL SWITCH AND DISENGAGE THE PLUG FROM THE SOCKET. IN ALL THOSE OPERATIONS WHICH COULD BE DANGEROUS IN ANY WAY (ADJUSTEMENTS, DISASSEMBLAGES, CHECKINGS ETC..), THE WORKER MUST BE ABLE TO CHECK THE ACTUAL SEPARATION OF THE PLUG FROM THE SOCKET AT ANY TIME.
- Page 14 SIX-MONTHLY OPERATIONS The tension and lubrification of the chains must be checked. Each chain can be checked pressing with the finger on the central part and observing the possible shifting, which must not exceed one centimetre. Should the chain be too loosen, it must be adjusted with the following procedure: 1) Turn the machine power off bringing the switch to the 0 position.
- Page 15 9TH CHAPTER SAFETY STANDARDS OTHER DANGERS STANDARDS TO COMPLY WITH This machine must be intended for the use for which it has been expressly planned. manufacturer cannot considered responsible possible damages to people, animals or things, caused by a wrong use of the machine itself.
- Page 16 OTHER DANGERS 1) Fork-shaped tool. During all their working cycle inside the basin, the fork-shaped tool is completely protected by a front grating, which can be lifted. 2) Gearbox elements. gearbox elements, potentially dangerous, protected fixed protection for which the instructions contained in this handbook are to be followed.
- Page 17 10TH CHAPTER SPARE PARTS CATALOGUE The catalogue is intended to help the users to order spare parts. The details have been represented with an exploded view which not only makes each piece easy recognizable, but also helps the user to assemble the pieces of the machine in the right way.
- Page 18 Fork mixer 2 speeds...
- Page 19 F O R K M I X E R 2 S P E E D S Pos. Denomination Body carpentry Wheel shaft Ring to fix the wheel Fixed wheel Electric motor x bowl movement Bowl reductor Support X reductor Foot support Turning wheel Foot Screw...
- Page 20 10.1 ELECTRIC LAYOUT SEE ATTACHED ELECTRIC SCHEME SHEETS Fork mixer 2 speeds...
- Page 21 ELECTRIC LAYOUT MACHINE WITHOUT TIMERS Fork mixer 2 speeds...
- Page 22 ELECTRIC LAYOUT VL 80 WITH TIMERS Fork mixer 2 speeds...
- Page 23 TIMERS SETTING : Fork mixer 2 speeds...
- Page 24 TECHNICAL SCHEDE for FORK MIXERS MODE VL 80 VL 40 WEIGHT – KG. MACHINE DIMENSIONS CM 80 x 130 x 115 H 62 x 105 x 110 H BOWL DIMENSIONS MM. 800 x 300 SPEEDS MOVEMENT WITH MOTOREDUCTORS TRANSMISSION REDUCTOR IN OIL BATH FOR REDUCTOR IN OIL BATH TOOL AND FOR BOWL FOR TOOL AND FOR BOWL...
- Page 25 G U A R A N T E E THE DELIVERY, PLEASE CHECK THAT THE MACHINE HAS NOT BEEN DAMAGED DURING THE TRANSPORT AND THAT THE MACHINE EQUIPMENT AND THE POSSIBLE OPTIONALS, REQUIRED BY YOURSELVES, ARE COMPLETE. ANY CLAIM MUST BE SUBMITTED IN WRITING TO THE MANUFACTURER WITHIN 8 (EIGHT) DAYS AND NOT LATER.
- Page 26 www.macpan.com...
